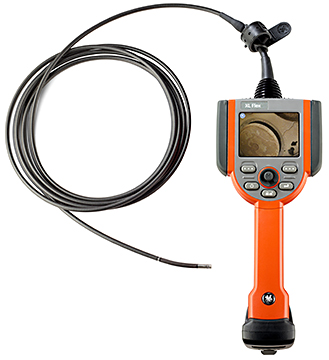

Waygate Technologies XL Flex and XL Flex+ VideoProbe

Video borescope with all-way probe articulation for full-VGA resolution image and video capture and stereo measurement.

Waygate Technologies XL Flex+ VideoProbe
Waygate Technologies XL Flex VideoProbe

Retired products cannot be ordered

The Everest Mentor Flex Video Probe is the recommended replacement

View Company Reviews

Manufactured

By Waygate Technologies

Includes

FREE Ground Shipping
FREE Lifetime Tech Support

Product Manual Product Specs

Features

Titanium-housed, color SUPER HAD CCD camera
- 4mm diameter: 290,000 pixels, 1/10in sensor
- 6.1 or 8.4mm diameter: 440,000 pixels, 1/6in sensor
-13 to 212°F (-25 to 100°C) tip operating temp
Integrated, active matrix VGA color LCD monitor
- XL Flex: Transflective 3.7in (9.4cm)
- XL Flex+: Transmissive 5.0in (12.7cm)
Internal flash memory
- XL Flex: 4GB
- XL Flex+: 16GB
IP rating
- XL Flex: IP55
- XL Flex+: IP65
Wheeled carry-on case with integrated insertion tube storage

What's in the Box

XL Flex or XL Flex+
Documentation thumb drive
2-hour lithium-ion battery
AC adapter/Battery charger
Wheeled storage case
Optical tip storage case
Inspection Manager
Quickstart card

The Waygate Technologies XL Flex+ and XL Flex videoprobes are lightweight and portable with powerful light output to produce clear, sharp videos and still images. The stereo measurement technology built into the videoprobes uses a patented prism to obtain left and right stereo images from slightly different perspectives. The matching of surface points in the left and right images provides accurate measurement results. The XL Flex+ and XL Flex have big, bright LCD screens (5-inch and 3.7-inch options, respectively) resulting in greater image clarity and improved probability of detection.

The XL Flex+ and XL Flex are equipped with Menu Directed Inspection (MDI) 2.0, an intuitive application to guide users through the inspection process to automatically tag images and organize results for simplified reporting. With 16 GB of memory, the XL Flex+ has room for storage of up to 15 MDI 2.0 templates.

The rugged build of XL Flex+ and XL Flex holds up to tough inspection environments, including exacting U.S. military standards for durability, resulting in lower cost of ownership in the long term.

Waygate Technologies is formerly known as GE Inspection Technologies (GEIT).
