AEMC OX5042 Oscilloscope

Handheld 40MHz Oscilloscope, 2 fully isolated channels, 600V CATIII,range 5mV to 200V/div.

Starting at $2,500.00 Found a better price? Let us match.

View Company Reviews
Manufactured
Includes
Availability
  • Usually ships in 1-2 weeks
Product Manual Product Specs

Features

  • 2 fully isolated input channels
  • 40MHz oscilloscope
  • 2GS/s in ETS mode – 50MS/s in one-shot mode on each channel
  • Range 5mV to 200V/div
  • Double independent 8000-count TRMS multimeter
  • BNC
  • Built-in harmonic analyzer for 31 orders
  • 2 MB of storage
  • Capture 100 image files (.bmp)
  • 2500 points per channel text (.txt)
  • Isolated optical USB interface “SX-Metro” and software (included)
  • BNC terminals
  • 3.5in TFT LCD 320 x 240 display
  • 600V CATIII

What's in the Box

  • USB wall plug
  • Isolated USB interface cable
  • BNC adapter
  • Color coded voltage leads (2)
  • Color coded alligator clips (2)
  • Probe 10:1 BNC (1)
  • 1.2V NiMH rechargeable batteries
  • Quick start guide
  • USB drive w/ software/user manual
  • Classic tool bag
  • Hard case and current probes

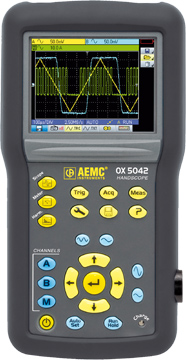

The AEMC OX5042 Oscilloscope is compact, shockproof, IP54 and can be comfortably held in one hand. The Handscope is an ergonomically designed instrument equipped with a color screen and LED backlighting for precise, crisp data display. Integrated multilingual help screens are available at all times to make it simpler to use.

The Model OX5042 Meter (2150.21) ships complete with small classic tool bag, USB Wall plug, USB cable, Set of 2, 10 ft. Color-coded Leads (red/black), Set of 2, Color-coded Alligator Clips (red/black), Set of 2, Color-coded Pencil Probes (red/black), BNC Adapter, 2 Probe 10:1 600V BNC male, 1.2V NiMH rechargeable batteries, quick start guide, and USB drive with software and user manual.

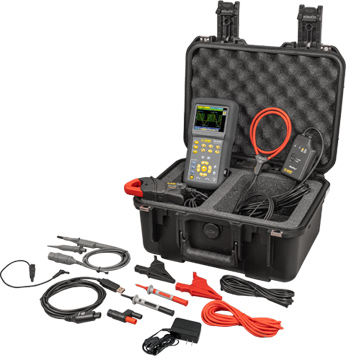

The Model OX5042-Kit (2150.22) upgrades the carrying case with a hard plastic molded field case. This kit also includes the 24in 3000A AC MiniFlex® Sensor 3000-24-1-1 and the clamp Current Probe Model MN251T which measures down to 1A AC.

Like the 2150.22, the Model OX5042-Kit (2150.23) ships complete with field case and 24" 3000A AC MiniFlex® Sensor 3000-24-1-1. However it is better suited for lower AC currents as it includes the clamp current Probe Model MN379T which measures down to 50mA AC current.

The Model OX5042 combines three measuring instruments in one:

  • 2 fully isolated channels, 600V CATIII
  • 40MHz oscilloscope, range 5mV to 200V/div
  • Independent 8000-count multimeter with power measurements
  • Built-in harmonic analyzer out to the 31st harmonic (fundamental between 40Hz and 450Hz)
