Fisher R600 Series Second-Stage Regulators

Up to 1,500,000 BTU/hr, 1/2 or 3/4in NPT inlets up to 10 psi and reduces to 8 in WC to 2.2 psi, for two-stage residential LP-gas systems.

Fisher R600 Series Second-Stage Regulators
Fisher R622 Second-Stage Regulator with Straight-Through Body Design
  • Fisher R622 Second-Stage Regulator with Straight-Through Body Design
    Fisher R622 Second-Stage Regulator with Straight-Through Body Design

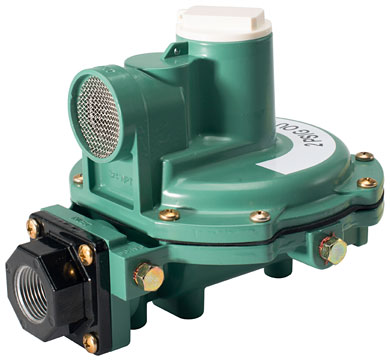

  • Fisher R622E Second-Stage 2-PSI Regulator with Straight-Through Body Design
    Fisher R622E Second-Stage 2-PSI Regulator with Straight-Through Body Design

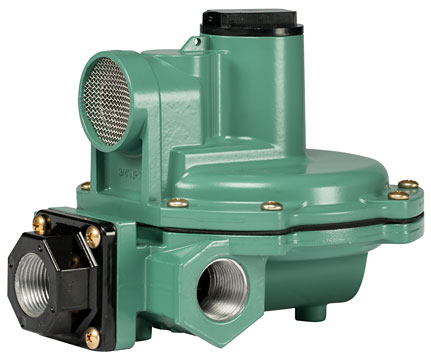

  • Fisher R642 Second-Stage Regulator with 90-Degree Body Design
    Fisher R642 Second-Stage Regulator with 90-Degree Body Design

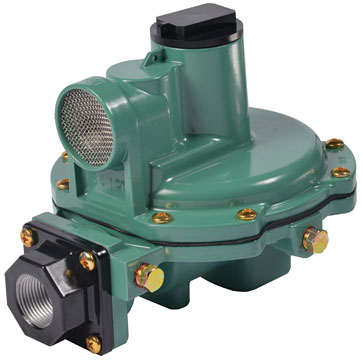

  • Fisher R652 Second-Stage Regulator for Back Mount
    Fisher R652 Second-Stage Regulator for Back Mount

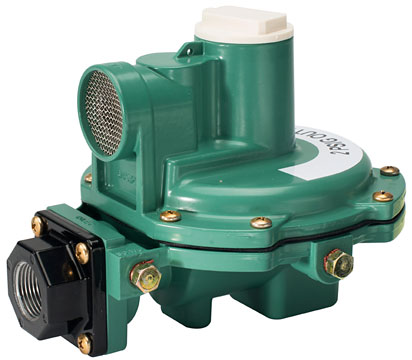

  • Fisher R652E Second-Stage 2-PSI Regulator for Back Mount
    Fisher R652E Second-Stage 2-PSI Regulator for Back Mount
Fisher R600 Series Second-Stage Regulators
Fisher R622 Second-Stage Regulator with Straight-Through Body Design
Fisher R600 Series Second-Stage Regulators
Fisher R622E Second-Stage 2-PSI Regulator with Straight-Through Body Design
Fisher R600 Series Second-Stage Regulators
Fisher R642 Second-Stage Regulator with 90-Degree Body Design
Fisher R600 Series Second-Stage Regulators
Fisher R652 Second-Stage Regulator for Back Mount
Fisher R600 Series Second-Stage Regulators
Fisher R652E Second-Stage 2-PSI Regulator for Back Mount
Starting at $173.01

View Company Reviewsby Trustpilot
Manufactured
  • By Fisher
Includes
  • FREE Ground Shipping on orders of $1,000 or more
  • FREE Lifetime Tech Support
Availability
  • Some models in stock. View available part numbers.
Product Manual Product Specs (2 Files)
Questions?
Call 1-800-884-4967 or email sales@instrumart.com. Open 8:00 am to 5:30 pm ET.
Trustpilot

Overview

Features

  • 10 psig (0.69 bar) maximum inlet pressure
  • Propane flow capacities up to 1,500,000 BTU/hr
  • 1/2 or 3/4in female NPT inlet
  • 1/2 or 3/4in female NPT oulet
  • 3/4in NPT screened vent
  • -20 to 160°F (-29 to 71°C) operating temperature
  • 20-year recommended replacement life
  • UL listed & CRN certified

Description

The Fisher R600 series second-stage regulators are designed to reduce the outlet pressure from a first-stage regulator in domestic applications. Inlet and outlet gauge taps allow for easy system testing. The combination of a high capacity relief valve and large vent provide overpressure protection that exceeds UL standards. When used in conjunction with an R122H or R622H, the two-stage system will limit the downstream pressure to 2 psig even in a double failure situation.

Fisher equipment must be installed, operated and maintained in accordance with Federal, state, and local codes and Fisher instructions. Only personnel trained in the proper procedures, codes, standards and regulations of the LP-gas industry should install and service this equipment.

Documents

Spec Sheets

  • Fisher R600 Series 2-PSI Second-Stage Regulators Datasheet PDF (272 KB)
  • Fisher R642 Second-Stage Regulator with 90-Degree Body Design Datasheet PDF (334 KB)

Manuals

  • Fisher R600 Series Second-Stage Regulators Manual PDF (536 KB)

Other

  • Fisher LP-Gas Regulators Catalog PDF (33.3 MB)
  • Flow Application Information Form (268 KB)

Links

  • All possible part numbers

In Stock

Part Number Price Available
R622-DFF
Show Configuration
$146.39 10 in stock
R642-DFF
Show Configuration
$157.48 9 in stock
R652-CFF
Show Configuration
$153.04 9 in stock
Configuration for R622-DFF
Base Price:
$0.00
Body Design
Straight-through (+$146.39)
Outlet Pressure Adjustment Range
9 to 13 in WC (22 to 32 mbar)
Connections
3/4in FNPT inlet & outlet (1,400,000 BTU/hr capacity)
Vent Location
Over inlet
Reconfigure
Configuration for R642-DFF
Base Price:
$0.00
Body Design
90° for metered installations (+$157.48)
Outlet Pressure Adjustment Range
9 to 13 in WC (22 to 32 mbar)
Connections
3/4in FNPT inlet & outlet (900,000 BTU/hr capacity)
Vent Location
Over inlet
Reconfigure
Configuration for R652-CFF
Base Price:
$0.00
Body Design
For back mount installations (+$153.04)
Outlet Pressure Adjustment Range
9 to 13 in WC (22 to 32 mbar)
Connections
1/2in FNPT inlet & 3/4in FNPT outlet (1,000,000 BTU/hr capacity)
Vent Location
Over inlet
Reconfigure

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 4 weeks". Click here to select options
