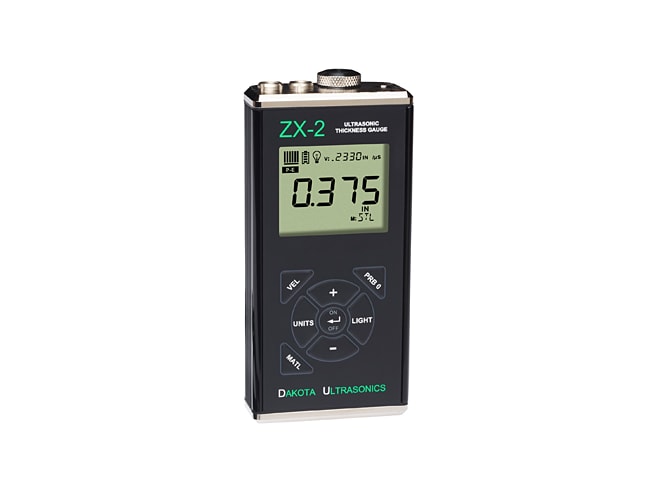

Dakota Ultrasonics ZX-2 Fixed-Velocity Thickness Gauge
Velocity adjustable on keypad and selectable from 8 common materials and 2 programmable presets.
- Z-301-0001
- By Dakota NDT
- Made in the USA
Overview
Features
- 0.025 to 36in (0.63 to 1219.2mm) thickness range
- Dual-element transducers (1-10MHz options)
- 8 preset and 2 programmable velocity options
- 120MHz FPGA timing
- 150 volt square wave pulser
- -22°F (-30°C) operating temperature
- Adjustable material velocity
- IP65 protection rating
- 5-year limited warranty
What's in the Box
- Thickness transducer
- Couplant
- AA batteries
- Manual
- Carrying case
- Certificate of calibration
Description
The Dakota ZX-2 fixed-velocity ultrasonic thickness gauge is a basic fixed-velocity gauge that requires no special training to operate. Calibration is done by simply scrolling to a known material velocity, or selecting a common material from a list of material types.
Dakota ZX-2 Ultrasonic Thickness Gauge's selectable velocity options
- Steel 4340 0.2330in (5918mm)
- Stainless 303 0.2230in (5664mm)
- Aluminum 2024 0.2510in (6375mm)
- Cast Iron 0.1800in (4572mm)
- Plexiglass 0.1060in (2692mm)
- PVC 0.0940in (2388mm)
- Polystyrene 0.0920in (2337mm)
- Polyurethane 0.0700in (1778mm)
- Custom
- Custom
The ZX-2 was designed and built to withstand the roughest industry conditions, and is backed by a 5-year limited warranty. Custom transducers are available for special applications.
Replacement for Dakota Ultrasonics MX Series Thickness Gauges.
