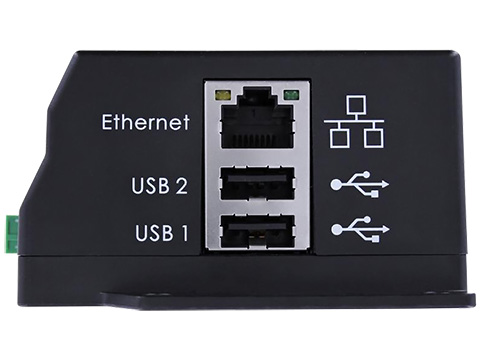

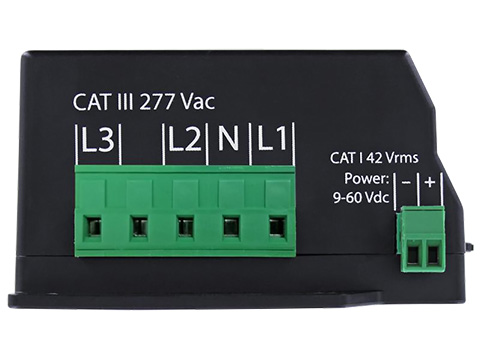

HOBO EG4130 Pro Data Logger

Fully web-configurable indoor data logger with built-in web server & 30 sensor inputs for power, voltage, current and more.

Features

  • 9 logging values
    • V, A, W, Wh, Hz, VA, VAr, THD & deg
  • 30 sensor inputs
    • 5-6900A max per channel
    • Fully isolated inputs
  • 50 or 60Hz frequency
  • 9-60VDC power
  • Built-in web server
  • Fully web-configurable
  • Built-in solid-state memory
  • Interactive graphical interface
  • No batteries required
  • Sensor sold separately
  • 2-year warranty

The HOBO EG4130 Pro data logger combines an energy meter, data logger, and web server in a single compact unit. Data can be stored and retrieved directly from the device or remotely via the internet. The EG4130 measures AC current, AC voltage, amps, kilowatt hours, kilowatts, volt-amp reactive, volt-amp reactive hours, watt hours, and watts. The intuitive user interface accesses historical and live data from the lifetime of the hardware, including real-time values and long-term reports. The EG4130 also supports wide range of current transformers for any size load.

HOBO EG4100 Series Current Transformer Sensor
HOBO EG4100 Series Current Transformer Sensor

Split-core CT sensor with multiple current ratings, overvoltage protection circuit & hinged body is easy to install in tight spaces.

Some Models in Stock
Starting at $45.00
HOBO Accu-CT Current Transformer
HOBO Accu-CT Current Transformer

Highly accurate split-core current transformer designed for single handed operation.

Starting at $79.00
HOBO T-MAG-SCT Series AC Transformer
HOBO T-MAG-SCT Series AC Transformer

Split-core design for fast, easy installation, up to 600A measurements, accuracy at 10% to 130% of rated current.

Starting at $69.00

This product can be used in the following applications:

Here's how some of our customers use this product...

Monitoring Power Consumption and Cost

The Background: Our customer is an industrial facility. As part of an energy efficiency initiative designed to lower operating costs, they want to monitor the energy consumption of 27 machines and seek a means of accomplishing that.

The Problem: The customer wants a simple, all-in-one solution that causes as little disruption as possible.

The Solution: We recommended the HOBO EG4130 Pro data logger which measures AC current, AC voltage, amps, kilowatt hours, kilowatts, volt-amp reactive, volt-amp reactive hours, watt hours, and watts. Data can be stored and retrieved directly from the device or remotely via the internet. The EG4130 can handle up to 30 current sensors and has the ability to convert usage to actual cost. It is the perfect solution for this application.
