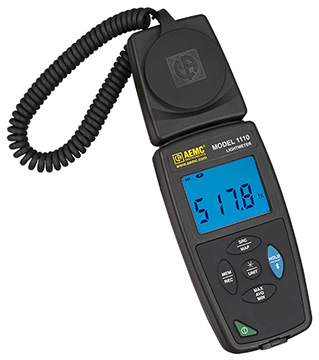

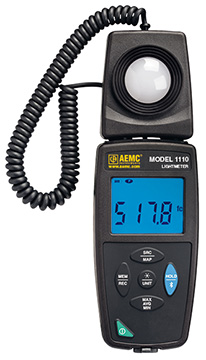

AEMC CA1110 Light Meter Data Logger

Use map mode to profile the illuminance of an area by storing multiple measurements & analyze data with included DataView software.

Features

  • User selectable light source
    • Natural, LED or fluorescent
  • Spectral error compensation for LED & fluorescent lighting
  • 0.01 to 200,000 lx (0.01 to 18,580 fc) range
  • Removable light sensor with expandable cord up to 48”
  • Map mode
  • Min, max, & average measurements stored
  • Hold function freezes the display
  • Spot or continuous recording of up to 1,000,000 measurements
    • Stored in 8MB flash memory
  • Blue luminescent backlit display
  • User selectable Foot Candle or Lux units
  • USB and Bluetooth communication
  • Magnetic mount
  • Battery or USB powered
  • DataView® graphing and analysis software included

The AEMC CA1110 light meter data logger is a portable, easy-to-use instrument that utilizes optical sensors that are designed to match the response of the human eye making it an ideal solution for work space analysis and planning. With an ergonomic case, large display and intuitive function selection, the AEMC CA1110 is designed for one-handed operation. The magnetic mount adds to this unit's ease of use.

Users can select between lux or footcandle units on the AEMC CA1110 light meter data logger and can also find min, max and average readings on the display. Additionally, the hold function can freeze the backlit display at any time. Using the supplied DataView software, this AEMC light meter data logger can perform a variety of recording tasks with simple set-up via a computer. AEMC's unique map mode profiles the illuminance of the area or room by storing multiple measurements. Users can choose to spot record or record continuously for up to 1,000,000 measurements, which are stored in the 8MB flash memory.

This product can be used in the following applications:
