Optris CSlaser G5HF Infrared Temperature Sensor

Fixed infrared pyrometer with 5µm spectral range for measuring the temperature of glass surfaces from 392 to 3002°F.

Starting at $925.00

View Company Reviews
Manufactured
Includes
Availability
Product Family
Product Manual Product Specs

Features

  • Cable sold separately
  • 392 to 3002°F temperature range
  • 5µm spectral range
  • 30ms response time
  • 45:1 optical resolution
  • 0.1 to 1.1 emissivity
  • Programmable functional input
  • 2 wire 4-20mA output
  • 5 to 28VDC power supply
  • IP65 NEMA-4 rated
The Optris ACCSLCB cable is a required component

Looking for a fever screening solution? Here's a list of approved items.

Trying to find effective aperture or spot size for your camera? Use our Optics Calculator or Spot Size Calculator.

What's in the Box

  • Mounting nut
  • ACCTLFB mounting bracket
  • Calibration certificate
  • Manual

The Optris CSlaser G5HF infrared temperature sensor provides accurate temperature measurements of glass, including flat glass lines, container glass machines, and in applications for bulb manufacturing and car glass finishing. It has a temperature range of 392 to 3002°F and can function in temperatures up to 185°F without the need for additional cooling.

The CSlaser G5HF features peak hold, valley hold, average, and an extended hold function with threshold and hysteresis, all field configurable with the USB programming kit (ACCSUSBK). Outputs include 2-wire 4-20mA, open collector alarm, and digital output.

The Optris Compact Connect temperature analysis software is available as a free download and is necessary to document and analyze temperature measurement data. It is compatible with all netbooks, notebooks, and PC systems via Windows XP, Windows Vista, Windows 7 and 8.

Required Components

These additional components are required for the operation of your product. We strongly advise you to purchase these components unless you already own them or own a suitable alternative.

Optris ACCSLCB Cable
Optris ACCSLCB Cable

Required accessory for CSlaser & CSvideo, compatible with cable carriers & available with high temperature head, includes connector.

Some Models in Stock
Starting at $70.00

Software

Optris Compact Connect Software
Optris Compact Connect Software

Temperature analysis software for simple and fast parameterization of compact and high performance fixed IR thermometers.

$0.00

Accessories

Please consider these optional accessories.

Optris Advanced Cooling Jacket
Optris Advanced Cooling Jacket

Protection for harsh industrial environments, operates at ambient temperatures up to 599°F, available with additional mounting support.

Mfg. has some models in stock
Starting at $1,400.00
Optris Cooling Jacket Protective Grid
Optris Cooling Jacket Protective Grid

Available in 2 & 3.15mm size, recommended component for the Optris cooling jacket, not for PI series with 48° lens.

Mfg. has some models in stock
Starting at $136.00
Optris Cooling Jacket Mounting Bracket
Optris Cooling Jacket Mounting Bracket

Available as adjustable in either one or two axes .

Starting at $185.00
Optris Focusing Unit & Front End
Optris Focusing Unit & Front End

Required component for Optris advanced cooling jacket.

Mfg. has some models in stock
Starting at $195.00
Optris ACCTRAIL Rail Mount Adapter
Optris ACCTRAIL Rail Mount Adapter

Mounts CT electronics on a DIN rail.

Mfg. has stock
$26.00
Optris ACCSLCONK Connector Kit
Optris ACCSLCONK Connector Kit

Converts the CSlaser with integrated cable into connector version, includes sensor backplane, connector & blank cap for the cable gland.

$80.00
Optris ACCTLRM Furnace Wall Mount
Optris ACCTLRM Furnace Wall Mount

Includes mounting adapter, 300mm sighting tube & M48 x 1.5 pipe adapter .

$375.00
Optris ACCSLHTCERT Calibration Certificate
Optris ACCSLHTCERT Calibration Certificate

Certificate of calibration for CSlaser 2M & 5G, with 3 reference temperatures.

$195.00
Optris CXLaser / CXVideo Mounting Bracket
Optris CXLaser / CXVideo Mounting Bracket

Stainless steel, available as adjustable in 1 or 2 axis, for CT/CSlaser & CT/CSvideo.

Mfg. has some models in stock
Starting at $47.00
Optris ACCTLAP Air Purge Collar
Optris ACCTLAP Air Purge Collar

G 1/8in thread fitting & 6x8mm hose connection for CT/CSlaser & CT/CSvideo.

Mfg. has stock
$120.00
Optris ACCTLW Water Cooled Housing
Optris ACCTLW Water Cooled Housing

Stainless steel, for temperatures up to 175°C.

Mfg. has stock
$273.00

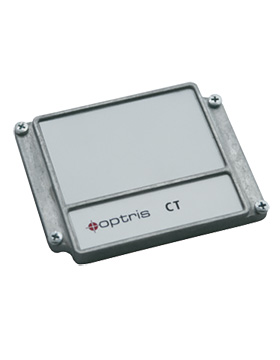

Optris ACCTCOV Closed Cover
Optris ACCTCOV Closed Cover

For CxL, CxV, CT XL & CTratio electronic box.

Mfg. has stock
$26.00
Optris ACCTLTA20UN Thread Adapter
Optris ACCTLTA20UN Thread Adapter

M48x1.5 to 20 UN-2A thread, includes mounting nut .

Mfg. has stock
$120.00
Optris ACCSMIAC IR App Connector
Optris ACCSMIAC IR App Connector

USB adapter cable with Micro-USB plug and adapters for USB-C and USB-A, compatible with IRmobile (Android) and CompactConnect (Windows).

In Stock
$52.00
Optris M48 Pipe Flange
Optris M48 Pipe Flange

Fitting to sighting tubes with M48x1.5 thread; for high ambient temperatures.

Starting at $105.00

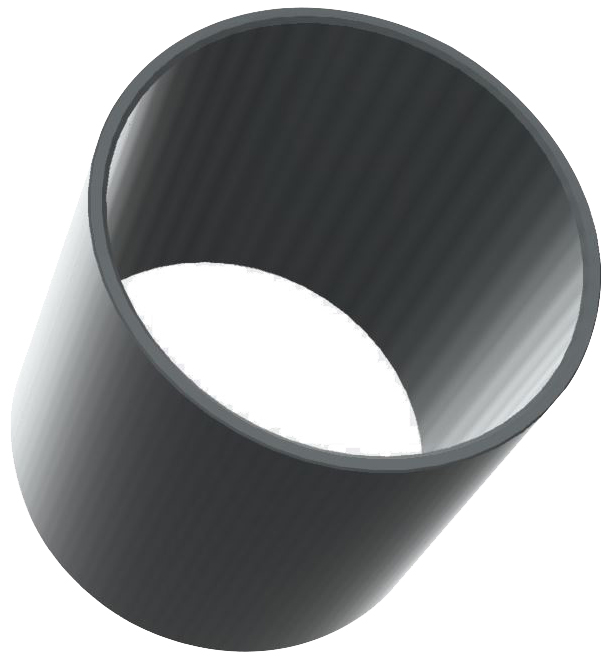

Optris ACHAPA Pipe Adapter
Optris ACHAPA Pipe Adapter

With M48x1.5 internal thread.

$47.00
Optris ACHAST300 Sighting Tube
Optris ACHAST300 Sighting Tube

M48x1.5, 300mm length.

$95.00
Optris ACHAMA Mounting Adapter
Optris ACHAMA Mounting Adapter

Mounting and pipe flange including screws.

$235.00
Optris CoolingJacket Mounting Flange
Optris CoolingJacket Mounting Flange

Fitting for connection to pipe flange, CoolingJacket and CoolingJacket Advanced.

Starting at $130.00

Manufacturer Stock

This stock is typically available to ship in 2 - 3 working days.

Part Number Price Available
OPTCSLG5HFSF
Show Configuration
$925.00 1 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 5 weeks". Click here to select options
