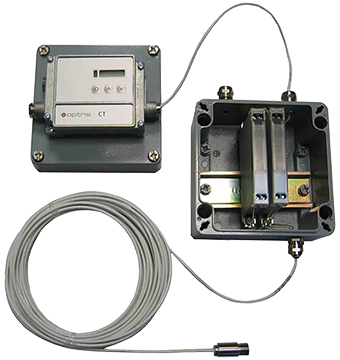

Optris CTex Infrared Temperature Sensor

Fixed, Intrinsically Safe infrared pyrometer with double zener barriers, 8 to 14µm spectral range & 2:1, 15:1 or 22:1 optics.

Optris CTex Infrared Temperature Sensor — Optris CTex Infrared Thermometer

Optris CTex Infrared Thermometer
Optris CTex Infrared Thermometer

Starting at $1,285.00

View Company Reviews

Manufactured

By Optris

Includes

FREE Ground Shipping
FREE Lifetime Tech Support

Availability

Call for availability

Product Manual Product Specs

Features

-58 to 1787°F temperature range
Maximum ambient temperature range:
- 266 to 356°F (standard)
- 482°F (high temperature option)
Universal analog output
Designed to measure non-metallic surfaces
±1% or ±1.8°F accuracy
±0.5% or ±0.9°F repeatability
8 to 14µm spectral range
150ms response time
2:1, 15:1, 22:1 optics available
Available in 3, 8 or 15m cable lengths
8-36VDC power supply
100mA max current draw
IP 65 NEMA-4 rated
UL E81680V1S3 approval

Looking for a fever screening solution? Here's a list of approved items.

Trying to find effective aperture or spot size for your camera? Use our Optics Calculator or Spot Size Calculator.

What's in the Box

Aluminum housing
Mounting appliance
2 zener barriers
CT electronics

The Optris CTex infrared temperature sensor is a two-piece measuring system with active electronics for evaluation and an IR sensing head that can be installed as a passive element in hazardous areas. It is encased in aluminum housing with mounting appliances for two zener barriers and CT electronics.

Selectable analog outputs and multiple digital interfaces offer high variability. Field selectable analog outputs options include 0/4-20mA, 0-10 V, and type K or J thermocouples. The Optris CTex features peak hold, valley hold, average, and an extended hold function with threshold and hysteresis. It also includes a programmable functional input for external emissivity setting, ambient temperature compensation, and reset of hold functions.

The Optris Compact Connect temperature analysis software is available as a free download and is necessary to document and analyze temperature measurement data. It is compatible with all netbooks, notebooks, and PC systems via Windows XP, Windows Vista, Windows 7 and 8.

Spec Sheets

Optris CTex Infrared Thermometer Datasheet PDF (344 KB)

Manuals

Links

Software

Optris Compact Connect Software

Optris Compact Connect Software

Temperature analysis software for simple and fast parameterization of compact and high performance fixed IR thermometers.

Accessories

Please consider these optional accessories.

Optris ACCTMB Mounting Bolt

Optris ACCTMB Mounting Bolt

M12 x 1 thread, adjustable in one axis .

Optris ACCTMG Mounting Fork

Optris ACCTMG Mounting Fork

M12 x 1 thread, adjustable in two axes, compatible with CT / CS ACCTFB fixed single axis mounting bracket.

Optris CT / CS Mounting Bracket

Optris CT / CS Mounting Bracket

Available as 1 or 2 axis & double hole M12, designed for 12mm sensing heads.

Some Models in Stock

Starting at $28.00

Optris ACC Air Purge Collar

Optris ACC Air Purge Collar

Available for optics ≥10:1, ≤2:1, laminar & laminar with integrated CF-lens.

Some Models in Stock

Starting at $38.00

Optris ACCTRAM Right Angle Mirror

Optris ACCTRAM Right Angle Mirror

Enables measurements with 90° angle to sensor axis, for sensing heads with optical resolution ≥10:1.

Optris CT Laser Sighting Tool

Optris CT Laser Sighting Tool

For aligning CT sensing heads, hardwired to CT electronics or battery powered options, available with 1, 3 or 8m connection cable.

Starting at $60.00

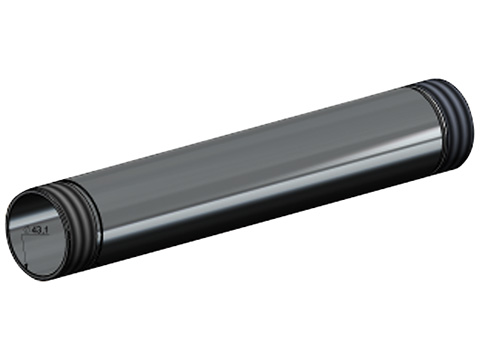

Optris Sighting Tube

Optris Sighting Tube

M12x1 external thread, available in 20, 40 & 88mm length.

Starting at $28.00

Optris ACCTRAIL Rail Mount Adapter

Optris ACCTRAIL Rail Mount Adapter

Mounts CT electronics on a DIN rail.

Optris CT / CSmicro Massive Housing

Optris CT / CSmicro Massive Housing

Stabilizes measurements in applications with significant & short-term variations in ambient temperatures.

Starting at $135.00

Optris CT Series Digital Interface

Optris CT Series Digital Interface

Relay, RS485, RS232, USB, RS485/422, Modbus RTU, CAN-Bus & Profibus-DPv1 interfaces.

Some Models in Stock

Starting at $65.00

Optris ACCTAPMH Air Purge Collar

Optris ACCTAPMH Air Purge Collar

For massive housing, M18x1 thread.

Optris ACCTFBMH Mounting Bracket

Optris ACCTFBMH Mounting Bracket

Single axis mounting massive housing bracket designed to be used with 18mm (M18) massive housing diameter.

Some Models in Stock

Starting at $28.00

Optris ACCTTAM25 Thread Adapter

Optris ACCTTAM25 Thread Adapter

M12x1 to M25x1.5 thread adapter includes 2 mounting nuts .

Optris ACCTTAS Tilt Assembly

Optris ACCTTAS Tilt Assembly

For heads with optical resolution ≥10:1.
