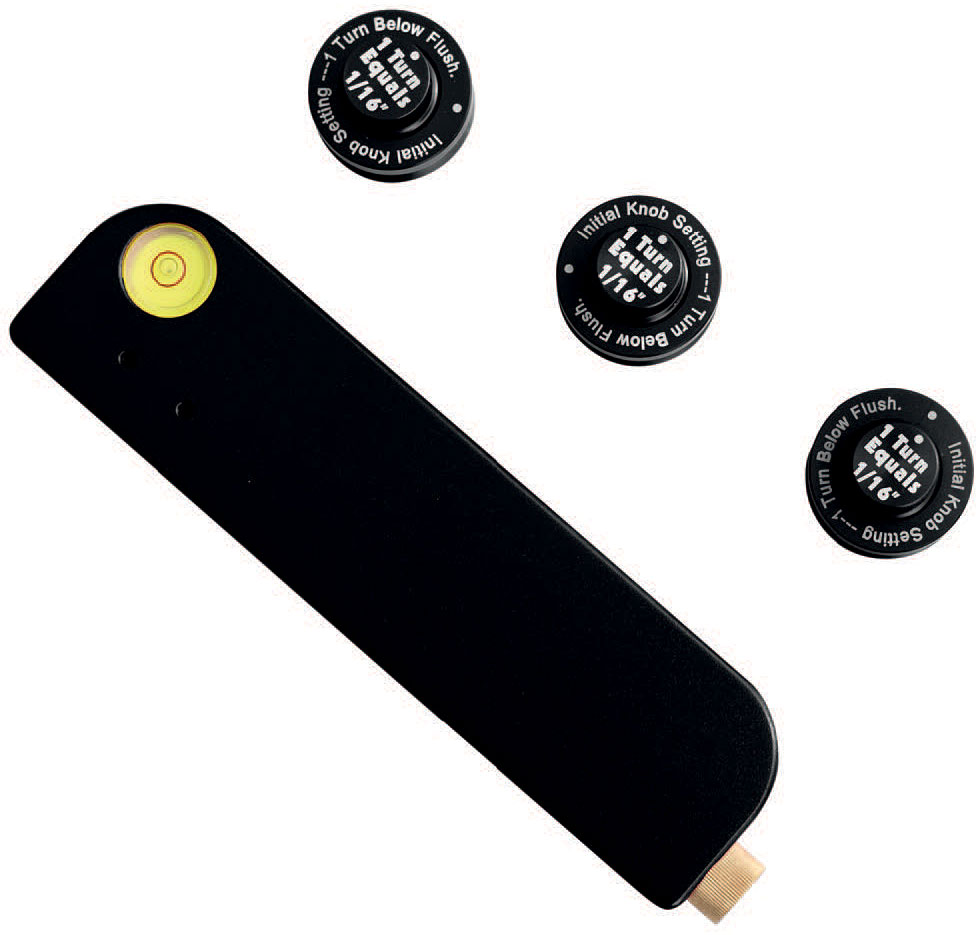

Erbessd Instruments EI-Pulley Ace Alignment Laser
Decrease vibration, minimize belt and motor bearing wear, 50ft operating distance, IP67 protection class.
- EI-PULLEY-ACE
Overview
Features
- 532nm, Class 2, 1mW laser
- 40 arc minute vial
- Ultra-green laser technology
- 60in at 3ft beam spread
- 1/16in at 30in line width
- .070in accuracy
- 50ft operating distance
- IP67 protection class
What's in the Box
- Magnetic sheave alignment laser
- 3 precision machined magnetic targets
- Foam-filled, hard-shell carrying case
- Instruction manual
- Warranty card
Description
The Erbessd Instruments EI-Pulley Ace alignment laser features retro-reflective alignment targets that work indoors or outdoors using enhanced reflective technology. The laser lines can be seen better in direct sunlight and adjustments are easier to make.
The EI-Pulley Ace projects a plane of laser light parallel with the faces of drive and driven sheaves. Adjustable targets attach to sheaves, intersect the laser beam and visually show any misalignment. The retro-reflective film on the center line of the target reflects the laser beam and glows for enhanced visibility and accuracy.
