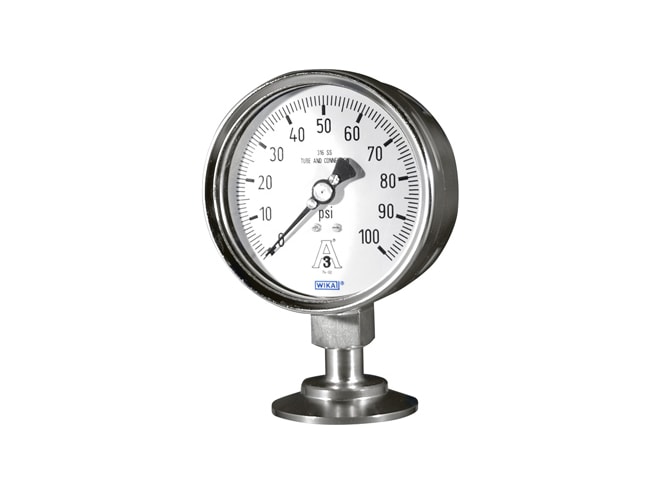

WIKA M93X.3A Sanitary Pressure Gauge
Sanitary gauge assembly with diaphragm seal, all-welded construction, external stainless steel surfaces, up to 1,000 psi.
Overview
Features
- Sanitary gauge assembly
- All-welded construction
- 2 1/2in or 4in dial size
- 316L stainless steel electropolished wetted material
- Up to 1,000 psi ranges
- Polycarbonate or polysulfone window options
- 1 1/2in or 4in tri-clamp process connection options
Description
The WIKA M93X.3A pressure gauge assembly has an all-welded construction in full compliance with ‘3A' third party standards and meets the most rigorous biopharmaceutical industry specifications. All external stainless steel surfaces are electropolished and the wetted components have full material identification and traceability. The gauge and its body have matching convolution patterns to greatly reduce potential diaphragm damage due to mishandling and to minimize temperature effects.
Applications for the M93X.3A include:
- Pharmaceutical industry
- Biotechnology
- Food & beverage
