Waygate Technologies Mentor Visual iQ VideoProbe

High-resolution video borescope with three versions to choose from, the Inspect, Touch, and Analyze models.

Features

  • Crystal clear live video and still images
  • 16GB of internal memory on the Inspect model
    • 32GB with the Touch & Analyze models
  • 6.5 inch active matrix XGA color LCD display
  • Dual-Band Wi-Fi and Bluetooth 4.0 enabled
  • 212°F (100°C) max operating temp
  • Rolling carry-on case or large work station model
  • Compatible with USB keyboards & storage devices
    • 2 USB 3.0 host ‘A’ ports
    • 1 USB 3.0 client micro ‘B’ port
  • IP65, MIL-STD-810G & MIL-STD-461F standards
Interested in a FREE demo? Call 1-800-884-4967 or complete this form to submit your request.

The Waygate Technologies Mentor Visual iQ VideoProbe is available in three customized platform configurations to meet inspection needs across industries and applications. Working through access passages, the Visual iQ system delivers high-resolution images of internal details of turbine engines, airframes, automotive engines, piping, vessels, wind turbine gear boxes, underwater structures, etc.

Probes come with a tip head guard to protect the threads, which is highly recommended for use without an optical tip. If you use the probe without the head guard or an optical tip you will damage the threads, which is costly to repair. Optical tips are sold separately.

Mentor Visual iQ Inspect

The Inspect version is the base model with 16GB internal memory. It, like the other two models, features high resolution image quality, high intensity LED light engine, and advanced image processing for improved image brightness. All models come with Wi-Fi and Bluetooth connectivity, network drive mapping, and are InspectionWorks live-streaming ready. The Inspect only uses hard button and joystick interface and it's not compatible with the QuickChange probes, so the probe you choose is set, but you can change the tip.

Mentor Visual iQ Touch

By upgrading to the Touch version you gain a touch screen in addition to the hard buttons and joystick interface. This model works with the QuickChange probes and other custom probes like the LongSteer, UV, and 6.2mm working channel probe. The Touch includes double the internal memory and gives you access to the menu directed inspection software suite for image management and reporting.

Mentor Visual iQ Analyze

The Analyze model uses the same probes and interface as the Touch and takes the upgrades even further. In addition to the 32GB of internal memory and software you'll also automatically get the stereo, 3D phase, and 3D stereo measurement upgrades as well as the "Probability of Detection" upgrade, which includes:

  • High-Dynamic Range (HDR)
  • Adaptive Noise Reduction
  • Distortion Correction
  • Preset Image Transformations

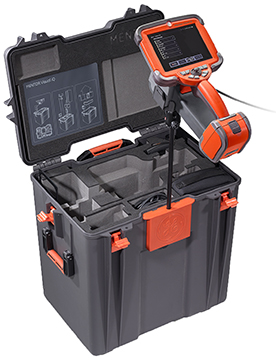

All models of the Visual iQ come with a carrying case. You choose from the rolling carry-on version or the larger work station model that includes a pole mount handset holder and accessory storage pouch.

Waygate Technologies is formerly known as GE Inspection Technologies (GEIT)

Required Components

These additional components are required for the operation of your product. We strongly advise you to purchase these components unless you already own them or own a suitable alternative.

Waygate Technologies MVIQ QuickChange Probes
Waygate Technologies MVIQ QuickChange Probes

Interchangeable video probes with high intensity LED light for Touch and Analyze models of the Mentor Visual iQ VideoProbe borescope.

Some Models in Stock
Starting at $16,463.00

Optical Tips

Waygate Technologies Probe Tips
Waygate Technologies Probe Tips

Optical tips, 3.9, 4.0, 6.1, 6.2 and 8.4mm sizes, forward or side views, for use with Waygate video borescopes.

Some Models in Stock
Starting at $2,726.62
Waygate Technologies 6.1mm Ultra Bright Tip
Waygate Technologies 6.1mm Ultra Bright Tip

Interchangeable forward viewing 65° FOV, far focused (65mm-inf DOF) ultra bright optical tip.

$2,470.00

Software

Waygate Technologies MVIQ-3DST Software
Waygate Technologies MVIQ-3DST Software

3D stereo measurement software with point cloud visualization for the Mentor Visual iQ.

Starting at $11,360.00
Waygate Technologies MVIQ-MDI Software
Waygate Technologies MVIQ-MDI Software

Menu directed inspection software with PC version included for the Mentor Visual iQ.

Select options for pricing
Waygate Technologies MVIQ-ST Software
Waygate Technologies MVIQ-ST Software

Stereo measurement software for the Mentor Visual iQ.

Starting at $7,350.00
Waygate Technologies MVIQ-3DPM Software
Waygate Technologies MVIQ-3DPM Software

3D phase measurement software with point cloud visualization for the Mentor Visual iQ.

Starting at $11,360.00

Accessories

Please consider these optional accessories.

Waygate Technologies APC100S Port Coupler Set
Waygate Technologies APC100S Port Coupler Set

Set of 12 access port couplers with case, AP couplers are threaded to mate up with borescope inspection ports.

$1,046.00
Waygate Technologies MVIQ Mount Kit
Waygate Technologies MVIQ Mount Kit

Small hands-free mount kit with movable swivel for Mentor Visual iQ video probes.

$482.00
Waygate Technologies MVIQ Magic Arm Kit
Waygate Technologies MVIQ Magic Arm Kit

Full size hands-free mount kit with moveable arm for Mentor Visual iQ video probes.

$734.00
Waygate Technologies Power Cord Strap
Waygate Technologies Power Cord Strap

Nylon strain relief strap for Mentor Visual iQ to prevent the AC power cord from being disconnected.

$20.61
Waygate Technologies MVIQ Charger
Waygate Technologies MVIQ Charger

Spare battery charger & AC power supply for Mentor Visual IQ.

In Stock
$158.84
Waygate Technologies Everest Mentor Flex Handset Strap
Waygate Technologies Everest Mentor Flex Handset Strap

Handset hanging strap with integrated quick disconnect, for use with Everest Mentor Flex or Mentor Visual iQ handset.

$129.00
Waygate Technologies Everest Mentor Flex Hook
Waygate Technologies Everest Mentor Flex Hook

Rigid handset hanging hook with integrated quick disconnect (QD), for use with Everest Mentor Flex or Mentor Visual iQ handset.

$172.18
Waygate Technologies Everest Mentor Flex Mounting Pole
Waygate Technologies Everest Mentor Flex Mounting Pole

Telescoping handset mounting pole for Everest Mentor Flex or Mentor Visual iQ, securely slides into place at the base of the carry-on case to allow for hands-free use.

$397.00
Waygate Technologies MVIQ 3.0mm 4-Way Interchangeable Probe
Waygate Technologies MVIQ 3.0mm 4-Way Interchangeable Probe

Provides USB connectivity with a video borescope system.

Starting at $14,700.00
Waygate Technologies Mentor Platform Battery
Waygate Technologies Mentor Platform Battery

Lithium-ion battery for use with the Mentor Visual IQ and the Mentor Flex.

In Stock
$1,172.00

This product can be used in the following applications:

Here's how some of our customers use this product...

Antifreeze R&D - Engine Inspection

The Background: An antifreeze manufacturer needs a way to visually inspect and accurately measure engine wear and fatigue as part of a testing protocol for their products. These inspections would be performed throughout an accelerated life testing of engines while using a variety of the customer's products under a range of conditions.

The Problem: The ability to measure and record the physical condition of the engine is imperative to the customer’s Design of Experiment. This is due to the fact that disassembling and reassembling the engines for inspection would add unwanted variables to their results as well as significantly increase the time frame of the test.

The Solution: We recommended the GE Inspection Technologies Mentor Visual iQ VideoProbe for its precision in measurement, superior image quality, and probe flexibility; to ensure the data's validity. Also, the Mentor Visual iQ's quick change probes allow the customer to have both 4mm and 6.1mm inspection tube on hand making it easier to access hard to reach areas and allowing the utilization of GE's superior 3D phase measurement technology which requires the use of the 6.1mm tube.
