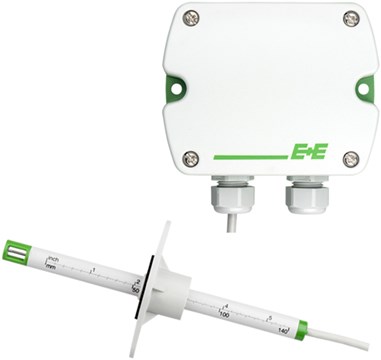

E+E EE650 Air Velocity Transmitter
Hot film sensor technology, ranges up to 4000 ft/min (20 m/s), high resistance to pollution.
-
Manufacturer has some models in stock. View available part numbers.
Overview
Features
- Hot film technology
- Ranges include:
- 0 to 2000 ft/min (0 to 10 m/s)
- 0 to 3000 ft/min (0 to 15 m/s)
- 0 to 4000 ft/min (0 to 20 m/s)
- Output signal 4 to 20mA/ 0 to 10V or RS485
- High resistance to pollution
- IP65 / NEMA 4 enclosure
- Remote probe IP20
- No moving parts
Description
The E+E EE650 Air Velocity Transmitter is designed for accurate and reliable measurements in building automation and ventilation applications. The EE650 features the new VTQ air velocity sensor element, which operates on the thermal anemometer principle and is manufactured by E+E in state-of-the-art thin film technology. Due to its innovative design, the VTQ sensor element is very robust and highly insensitive to pollution, which leads to outstanding long-term performance.
The enclosure design and the mounting flange included in the scope of supply allow for easy installation or replacement. The EE650 can be adjusted by the user via digital interface.
Typical applications for the EE650 include:
- HVAC
- Ventilation control
- Ventilation systems
Documents
Documents
- E+E EE650 Air Velocity Transmitter Datasheet (1.1 MB)
- E+E EE650 Air Velocity Transmitter Accessories Datasheet (4.1 MB)
- E+E EE650 Air Velocity Transmitter Quick Guide (986 KB)
- E+E EE650 Air Velocity Transmitter Declaration of Conformity (274 KB)
- E+E EE650 Air Velocity Transmitter Manual PDF (1.2 MB)
- All possible part numbers
Accessories
Applications
This product can be used in the following applications:
In Stock
Manufacturer Stock
Items from manufacturer stock generally ship in 2 to 3 business days.
Part Number | Price | Available | |
---|---|---|---|
EE650-T2A6L200 |
$534.00 | 52 in stock | |
EE650-T2A6L100 |
$534.00 | 12 in stock |
