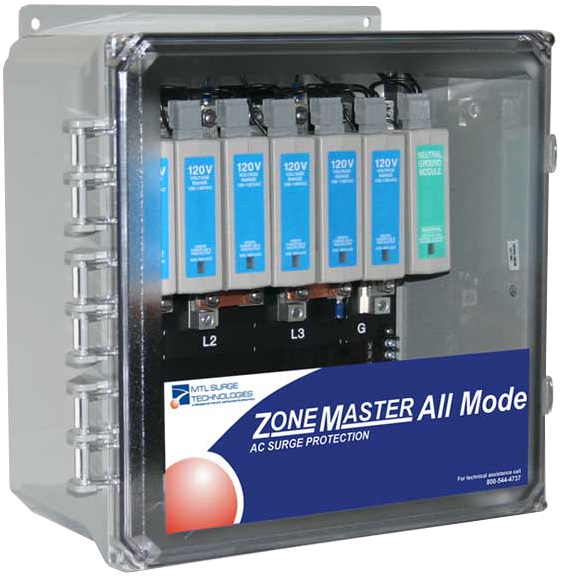

MTL ZoneMaster All-Mode Surge Protectors

The MTL ZoneMaster All-Mode Series of surge protection devices combines unparalleled power handling capability, application versatility, proven circuitry along with simple installation, features which make ZoneMaster All-Mode units the ultimate power protection solution.

ZoneMaster All-Mode devices are modular in construction, individual modules are bolted to a large surge return plate to minimize transient impedance. These color coded, replaceable modules, with a UL 94-5V rated plastic casing are supplied mounted within a durable NEMA 4X (IP66) rated enclosure. ZoneMaster All-Mode units are easy to install via simple wall mounting.

Large block Metal Oxide Varistor (MOV) protection technology is utilized within the ZoneMaster All-Mode range. Each of the large block MOVs are individually fused for both thermal and short circuit protection. This produces redundancy ensuring the facility is never unprotected.

LED status indication is supplied as standard, normally open/ normally closed contacts change state to indicate a fault. An optional remote monitoring unit is also available providing audio and visual indication of protector status, along with features such as a test switch for checking the monitoring circuitry and an audio alarm silence switch.

The optional power filter has a noise attenuation of 75dB at 100KHz-100MHz and will attenuate 6kV transients down to just 200V. This power filter is UL 1283 Listed and all ZoneMaster All-Mode devices are UL 1449 3rd Edition Listed.
