Overview

Features

  • 5 fixed resistance ranges: 1Ω, 10Ω, 100Ω, 1kΩ, 10kΩ
  • High accuracy
    • 1Ω range: ±1mΩ
    • 10Ω range: ±5mΩ
    • 100Ω range: ±10mΩ
    • 1kΩ range: ±100mΩ
    • 10kΩ range: ±1Ω
  • Clear visual indication
  • Portable and compact
  • Simple operation
  • Robust casing
  • Ideal for education

Description

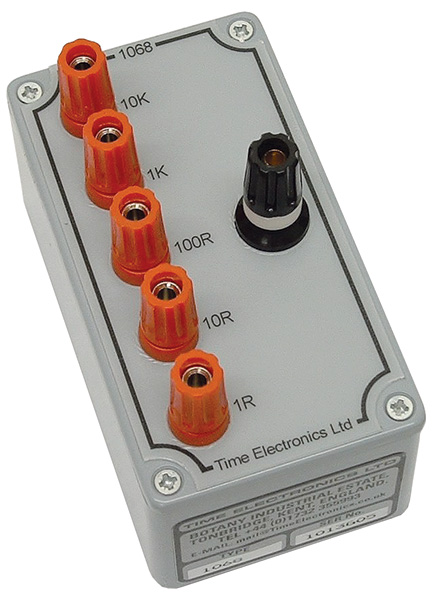

Time Electronics 1068 fixed resistance box is a compact, highly accurate instrument with five fixed resistance values designed for industrial, general laboratory, and education requirements.

Housed in a robust case the 1068 is easily portable and takes up minimal bench space. Being a low cost and simple operation instrument it is a popular model for physics and electronics laboratories in universities and schools.

The high accuracy obtained in the Time Electronics 1068 is achieved by the use of precision resistors. To select a value simply connect test leads to one of the fixed value resistors; 1Ω, 10Ω, 100Ω, 1kΩ, or 10kΩ.

Connection to the box is via 4mm binding posts and the values are clearly indicated beside each terminal.
