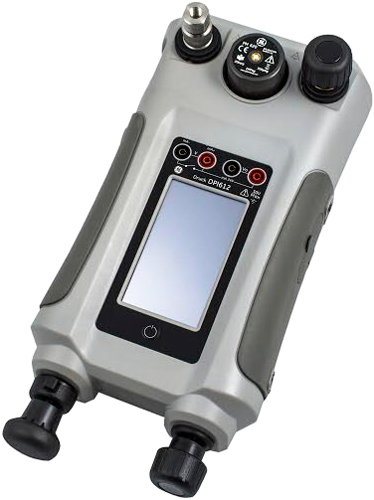

Druck DPI 612 Flex Series Pressure Calibrator

Three model choices, generate as low as 95% vacuum or as high as 15000 psi with accuracy up to 0.005% FS.

Starting at $4,265.00 Starting at $3,667.90 Found a better price? Let us match.

Free Druck 4Sight2 Lite Software included with DPI611, DPI612, DPI620 Genii, or DPI610E calibrator purchase.


View Company Reviews
Manufactured
Includes
Availability
Product Manual Product Specs

Features

  • Complete pressure calibration tool
  • Accuracy up to 0.005% FS
  • Touch screen
  • Fast and dependable up to 15000 psi (1000 bar)
  • 31 interchangeable pressure modules
  • "Quick-to-fit" pressure adaptor/hose system
  • Automated calibration procedures
  • 8Gb internal memory
  • Operating temp: -4 to 158°F (-20 to 70°C)
Interested in a FREE demo? Call 1-800-884-4967 or complete this form to submit your request.

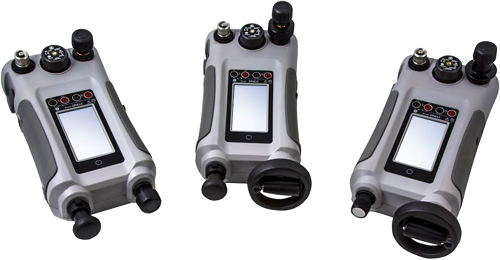

The Druck DPI 612 Flex Series Pressure Calibrator provides interchangeable pressure modules, higher accuracy and significantly improved pressure generation. There are three models in the Druck DPI 612 Flex series to generate pressures from 95% vacuum to 1000 bar/ 15000 psi. Their dependable, high performance pressure systems provide quick and easy generation with great accuracy.

The pFlex pneumatic versions have a simple selector to let you convert from vacuum to pressure and with the high efficiency hand pumps and volume adjusters you can generate accurate pressure quickly and with ease.

The hFlex hydraulic version has an internal reservoir for hydraulic oil or water, a priming pump to expel air from the connected system and an intensifier to quickly and easily generate pressure.

The PM 620 is the latest development in digital output sensor technology and incorporates key innovations to allow pressure re-ranging without the need for tools, sealing, cables or user set-up. The modules cost a fraction of fixed range instruments and can be calibrated independently, so you can benefit from reduced inventory, shared resources, lower cost of ownership and less down-time for annual calibration checks.

When you order a pressure module kit as part of the DPI 612 you get a selection of accessories that depend on the base model you order:

pFlex Module Kit

  • Rechargeable battery (CC3800GE)
  • Hose (IOHOSE-NP1)
  • Carrying case (IO620-CASE-3)
  • Dirt moisture trap (IO620-IDT621)

pFlexPro Module Kit

  • Rechargeable battery (CC3800GE)
  • Hose (IO620-HOSE-P1)
  • Carrying case (IO620-CASE-3)
  • Dirt moisture trap (IO620-IDT621)
  • Pressure relief valve (IO620-PRV-PX)

hFlexPro Module Kit

  • Rechargeable battery (CC3800GE)
  • Hose (IO620-HOSE-P1)
  • Carrying case (IO620-CASE-3)
  • Pressure relief valve (IO620-PRV-HX)

Batteries/Chargers

Druck Mains Adapter
Druck Mains Adapter

In Stock
$101.00

Accessories

Please consider these optional accessories.

Druck CC3800GE Replacement Rechargeable Battery
Druck CC3800GE Replacement Rechargeable Battery

Spare/replacement rechargeable battery for the DPI 612 Flex Series.

In Stock
$257.00
Druck IOHOSE Pneumatic Hose
Druck IOHOSE Pneumatic Hose

1m or 2m pneumatic hose, max 40 bar / 600 psi.

Some Models in Stock
Starting at $109.00
Druck IO61X-LEAD Test Lead Set
Druck IO61X-LEAD Test Lead Set

Replacement test lead set.

In Stock
$110.00
Druck IO612-STRAP Shoulder Strap
Druck IO612-STRAP Shoulder Strap

Replacement shoulder strap.

$41.10
Druck PM620 Pressure Module
Druck PM620 Pressure Module

Innovative and interchangeable pressure modules.

Some Models in Stock
Starting at $2,083.00
Druck IO61X-PROT Screen Protector
Druck IO61X-PROT Screen Protector

Screen Protector.

$6.77
Druck IO61X-STYLUS Touch Screen Stylus
Druck IO61X-STYLUS Touch Screen Stylus

Replacement touch screen stylus.

$6.77
Druck Pneumatic Hose Kit
Druck Pneumatic Hose Kit

High pressure pneumatic hose rated to 5800 psi (400 bar) terminated with a quick fit connector .

Some Models in Stock
Starting at $550.00
Druck Hydraulic Hose Kit
Druck Hydraulic Hose Kit

High pressure hydraulic hose rated to 15,000 psi (1000 bar) terminated with a quick fit connector .

Some Models in Stock
Starting at $586.00
Druck Pressure Station Carrying Case
Druck Pressure Station Carrying Case

Protective fabric carrying case with shoulder strap and large pocket for accessories.

In Stock
$133.00
Druck IO620-IDT621 Dirt Moisture Trap
Druck IO620-IDT621 Dirt Moisture Trap

Remove solid and liquid contaminants from the pressure media, maximum pressure 300 psi (20 bar).

In Stock
$491.00
Druck IO620-IDT622 Dirt moisture trap
Druck IO620-IDT622 Dirt moisture trap

Remove solid and liquid contaminants from the pressure media, maximum pressure 1500 psi (100 bar).

In Stock
$703.00
Druck Pressure Adapter Set
Druck Pressure Adapter Set

Set of test point tool-less quick fit adapters to connect the pressure system to the extension hoses of device being tested.

Some Models in Stock
Starting at $198.00
Druck Blanking Plug
Druck Blanking Plug

Allows the PV62X or DPI612 to be used as a pressure generator independently of the DPI620 and PM620.

In Stock
$85.70
Druck Pressure Relief Valve
Druck Pressure Relief Valve

Protects the PM 620 pressure module and the device under test from overpressure.

Some Models in Stock
Starting at $362.00
Druck 4Sight2 Calibration Management Software
Druck 4Sight2 Calibration Management Software

Provides visibility to the assets, data, and resources that affect maintenance, process efficiency and regulatory compliance.

Starting at $3,998.00
Druck IDOS UPM
Druck IDOS UPM

Universal pressure module for the Druck DPI800 Series pressure indicators.

Some Models in Stock
Starting at $1,620.00
Druck IDOS to USB Module
Druck IDOS to USB Module

Connects an IDOS universal pressure module to the DPI 620 Calibrator.

In Stock
$396.00
Druck USB Cables
Druck USB Cables

Connect the IDOS USB module to either a PC or the DPI6xx, RS-232 interface version optional.

Some Models in Stock
Starting at $25.00
Druck PM620 TERPS Pressure Modules
Druck PM620 TERPS Pressure Modules

0.0125% FS accuracy, Incorporate a range of TERPS resonant silicon pressure sensor technology.

Starting at $2,662.00

This product can be used in the following applications:

Here's how some of our customers use this product...

Calibrating Multiple Transmitters

The Background: Our customer is a National Lab that requires a pressure calibrator capable of calibrating transmitters with pressure ranges from vacuum to 1500 psi gauge and absolute.

The Problem: Because of the wide range of transmitter pressures, the customer’s older calibrator would lose accuracy. They also had transmitters with a wide variety of output types including 4 to 20 Ma, 0 to 50 mvdc, 1 to 5vdc, and 0 to 10VDC which was difficult to manage with their old calibrator.

The Solution: We suggested the GE Druck DPI 612 Flex Series Pressure Calibrator which features interchangeable pressure modules to maintain high accuracy over the entire pressure range as well as to cover gauge and absolute pressures. The DPI 612 also measures a multitude of electrical signals and provides 24vdc to power transmitters for testing. The internal pumps available will cover ranges from pneumatic vacuum to 300 and 1500 psi as well as hydraulic pressure to 15,000 psi.

Part Number Model Pressure Module Kit Price Available
DPI 612-PFP-20G
Show Full Configuration
pFlexPro vacuum to 1500 psi pneumatic pressure calibrator
-1 to 20 bar / -14.5 to 300 psi gauge
 $7,445.02 1 in stock
DPI 612-PFP-70G
Show Full Configuration
pFlexPro vacuum to 1500 psi pneumatic pressure calibrator
0 to 70 bar / 0 to 1000 psi gauge
 $7,757.20 1 in stock
DPI 612-PFX-20G
Show Full Configuration
pFlex vacuum to 300 psi, pneumatic pressure calibrator
-1 to 20 bar / -14.5 to 300 psi gauge
 $5,716.42 1 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 6 weeks". Click here to select options
