Druck DPI610E Pressure Calibrator

Hand-held pressure calibrator from 95% vacuum to 500psi (35bar) pneumatic pressures and up to 15,000psi (1,000bar) hydraulic pressures.

Druck DPI610E Pressure Calibrator

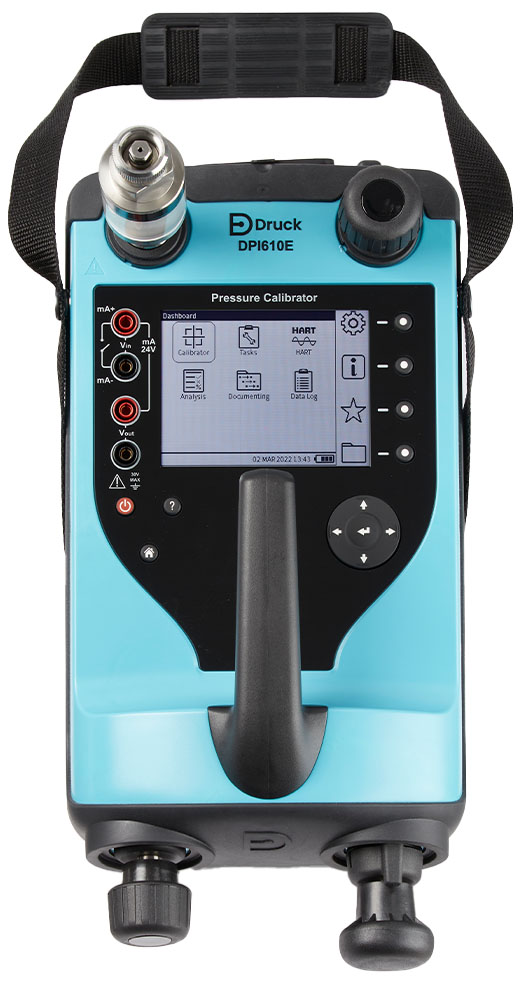

Druck DPI610E Pressure Calibrator - Pneumatic Pressure Version
Druck DPI610E Pressure Calibrator - Hydraulic Pressure Version

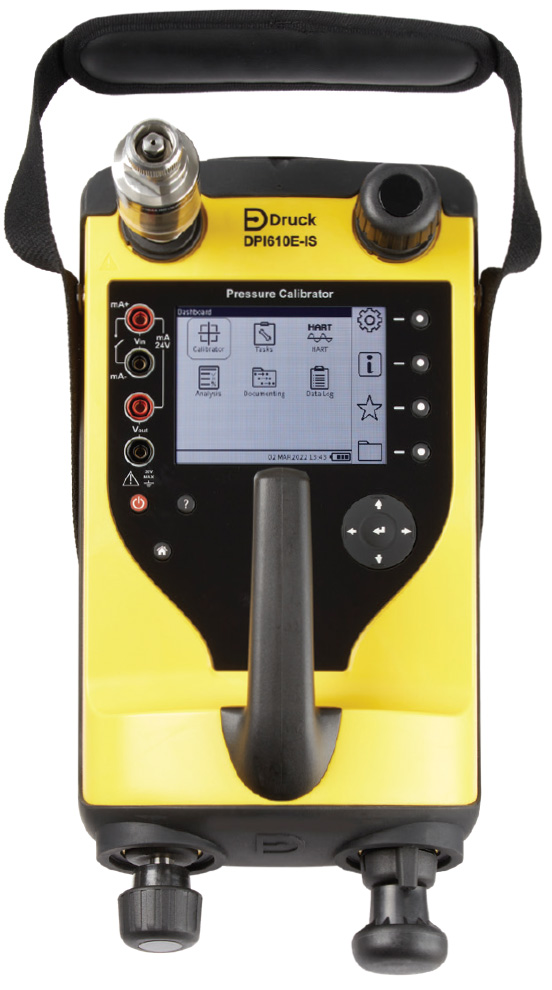

Druck DPI610E-IS Pressure Calibrator - Intrinsically Safe Pneumatic Pressure Version
Druck DPI610E-IS Pressure Calibrator - Intrinsically Safe Hydraulic Pressure Version
Druck DPI610E Pressure Calibrator Product Video

Starting at $5,060.00 Found a better price? Let us match.

Free Druck 4Sight2 Lite Software included with DPI611, DPI612, DPI620 Genii, or DPI610E calibrator purchase.

Effective April 16th, 2025, Druck has added a 7% surcharge to this product. The surcharge will appear as a separate line item on the order.

View Company Reviews

Manufactured

By Druck

Includes

FREE Ground Shipping
FREE Lifetime Tech Support

Availability

Some models in stock. View available part numbers.

Product Manual Product Specs

Features

100,000 point data logging memory
HART communication as standard on all versions
Integral calibration record with calibration due countdown
Hazardous area (Intrinsically safe) versions available
Built-in barometer (pneumatic pressure version)
4.4in backlit high-contrast display
IP54 protection rated
CE marked, UKCA marked
Hazardous Area version: ATEX, IECex, UKEX to EN60079-11:2012 Ex ia IIC T4 Ga (-10 to 50°C)

What's in the Box

DPI610E Pressure Calibrator
Lithium-ion battery
Charger
Test leads
G1/8 female and 1/8 NPT female adaptors
IDT dirt moisture trap (pneumatic version only)
100ml reservoir (hydraulic version only)
Carry strap
Calibration certificate
Quick start guide

The Druck DPI610E pressure calibrator has been engineered for instrument technicians with input from users working in the field. It provides a highly accurate, reliable, and stable pressure measurement with a total 1 year uncertainty down to 0.025% Full Scale (FS) over a temperature range of 14 to 122°F (-10 to 50°C) and gives the user complete confidence in the measurement accuracy between annual calibrations.

The DPI610E provides higher pressures and higher volume handling with pneumatic pressures from 95% vacuum to 500psi (35bar / 3.5MPa). A selector lets the user switch from vacuum to pressure and with a few stokes of the pump, can generate the required pressure. Fine adjustment can be made with the built-in volume adjuster while falling pressure calibration points are achieved with the precision-control vent valve. The integrated pressure pump along with internal and optional external pressure measurement sensors work together seamlessly with the electrical sourcing and measurement functions to provide an accurate and reliable calibration instrument.

The DPI610E provides a quick-fit connection that allows pressure-tight connections of up to 15,000psi (1,000bar) without the need for tools. The DPI610E comes with a 3.28ft (1m) quick-fit hose and G1/8 female and 1/8 NPT female adapters (other adapters are available for different connection needs).

The DPI610E can record data from 2 channels simultaneously by manually touching a record button or automatically at an interval set by the user. Data can be reviewed on screen or the data file can be transferred to a PC for further analysis. The DPI610E can hold over 100,000 datalog points.

The DPI610E comes in 2 models:

Pneumatic Version: Comes supplied dirt trap to prevent contamination of both the instrument itself and the system under test from dirt and debris as well as moisture. it also includes an internal barometer which allows both gauge and absolute pressure sensors to be used in pseudo-ranges
Hydraulic Version: Includes an external 100cc reservoir for easy visibility of hydraulic oil or water, a priming pump to expel air from the connected system and an intensifier to quickly and easily generate pressure up to 15,000psi (1000 bar / 100 MPa).

2.9m remote sensor cable for the DIP705E.

$120.00

Druck M12M to M12F Lead

M12M to M12F 2m ext lead (6.5 ft) 4-wire.

$44.40

Druck IO610E USB Cable

USB type A to type B cable (2m length) for transferring data from the Druck DPI610E Pressure Calibrator.

$11.74

Sensors/Probes

Druck PM700E External Remote Pressure Sensors

External remote pressure sensors for the DPI705E, 25 mbar up to 1400 bar pressure ranges available.

Starting at $497.90

Druck RTD Interface

RTD Interface, IS and probe options available.

Starting at $343.00

Druck IO-RTD-PRB150 RTD Probe

RTD Probe 150mm, PT100 steel Class A.

In Stock

$127.00

Batteries/Chargers

Druck IO610E-PSU Power Supply

Universal input mains adapter for the Druck DPI610E. Input voltage 100 to 240 VAC 50/60 Hz. Mains socket adapters are provided.

In Stock

$58.60

Druck IO610E Car Charger

12V car charger for the Druck DPI610E Pressure Calibrator.

$29.20

Cases

Druck DPI610E Carry Case

Carry case for the Druck DPI610E Pressure Calibrator. Storage pocket for test leads, IDT, reservoir, and other items. Hazardous area approved to Zone 0.

$235.00

Accessories

Please consider these optional accessories.

Druck Pressure Adapter Set

Set of test point tool-less quick fit adapters to connect the pressure system to the extension hoses of device being tested.

Some Models in Stock

Starting at $198.00

Druck Hydraulic Hose Kit

High pressure hydraulic hose rated to 15,000 psi (1000 bar) terminated with a quick fit connector .

Some Models in Stock

Starting at $586.00

Druck DPI620-IS Hydraulic Hose Kit

Druck hydraulic hose kits for DPI620-IS.

Starting at $860.00

Druck IOHOSE Pneumatic Hose

1m or 2m pneumatic hose, max 40 bar / 600 psi.

Some Models in Stock

Starting at $112.00

Druck IO620-IDT621 Dirt Moisture Trap

Remove solid and liquid contaminants from the pressure media, maximum pressure 300 psi (20 bar).

In Stock

$491.00

Part Number	Price	Available
DPI610E-PC-13G-U0-B0 Show Configuration	$5,060.00	3 in stock
DPI610E-PC-07G-U0-B0 Show Configuration	$5,060.00	1 in stock
DPI610E-PC-10G-U0-B0 Show Configuration	$5,060.00	1 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 6-8 weeks". Click here to select options
