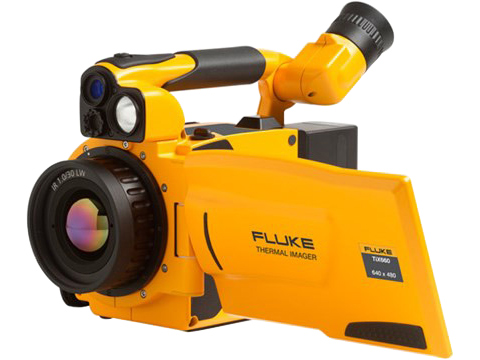

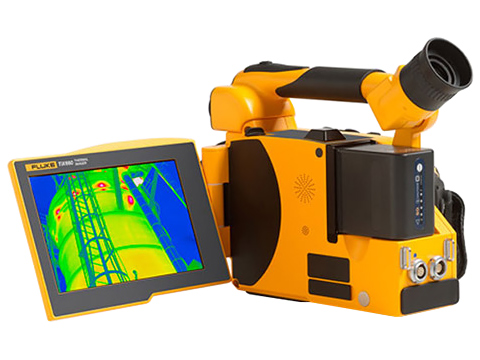

Fluke TiX660 Infrared Camera

307,200 pixel resolution (640 x 480), -40 to 2192°F, sensitivity ≤0.03°C, 1280 x 96 super resolution option, & Fluke Connect.

Fluke TiX660 Infrared Camera
Fluke TiX660 Infrared Camera
Fluke TiX660 Infrared Camera
Fluke TiX660 Infrared Camera

Retired products cannot be ordered

The Fluke TiX620 Infrared Camera is the recommended replacement

View Company Reviews

Part Number

FLK-TiX660 60Hz

Manufactured

By Fluke

Includes

FREE Ground Shipping
FREE Lifetime Tech Support

Product Manual Product Specs

Features

Built with Fluke Connect
640 x 480 (307,200 pixels) resolution
Super resolution enhancement mode 1280 x 960 (1,228,800 pixels)
0.8 mRad spatial resolution
Temp Range: -40 to 3632°F (-40 to 2000°C)
±1.5°C or ±1.5% accuracy
60 Hz frame rate
IR-Fusion technology
SDHC memory card
Lasersharp, auto/manual focus
Eversharp multifocal recording

What's in the Box

Two rechargeable batteries
Battery charger and adapter
AC adapter
SD card reader
FC SD card for Fluke Connect
Protective lens cap
Hand strap
Neck strap
Carrying case
Warranty card
Safety instructions
Calibration certificate
CD of product manuals & SmartView software

The Fluke TiX660 Infrared Camera is part of the first HD infrared camera that are built with Fluke Connect. The TiX660 features 640 x 480 (307,200 pixels) resolution and a 32.4° x 24.7° (1.0/30 mm) field of view. The Super Telephoto lens allows you to see a 5mm (0.2in) from 35m (115ft) away. The TiX660 features the most advanced focus options available for consistently in focus image: LaserSharp Auto Focus, auto focus, manual and EverSharp multifocal recording features available on one camera.

The Fluke Expert Series offers the best flexibility of the entire Fluke infrared camera portfolio to capture spectacular images close up or from a distance. The TiX1000, TiX660 and TiX640 are compatible with 8 lens options (2x and 4x telephoto lenses, 2 wide angle lenses, 3 macro lenses and 1 standard lens) so great images can be captured despite certain obstacles.
