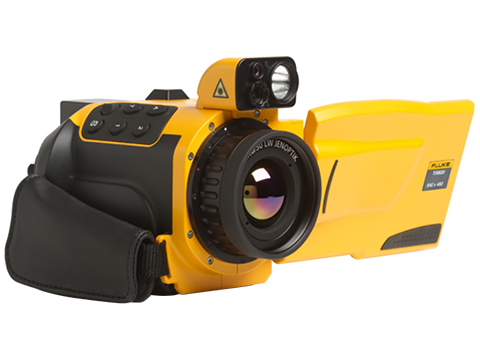

Fluke TiX620 Infrared Camera
307,200 pixel resolution (640 x 480), -40 to 1112°F, ≤0.04°C sensitivity, & Fluke Connect.
Overview
Features
- -40 to 1112°F (-40 to 600°C) temp measurement
- ±2K or ±2% accuracy
- ≤0.04°C at 30°C target temp (40mK)
- 0.85mRad IFOV (spatial resolution)
- 7.5 to 14μm spectral range
- 32.7° × 24.0° field of view with standard lens
- 30Hz frame rate & up to 32x digital zoom
- Emissivity correction (manual or material table)
- Reflected background temperature compensation
- Text and voice annotation
- IP54 enclosure rating
- 2-year warranty
What's in the Box
- Rechargeable battery
- Battery charger & adapter
- AC adapter
- SD card reader
- Protective lens cap
- Hand and neck straps
- Carrying case
- Warranty card & safety instructions
- Calibration certificate
- CD with product manuals (multi-language)
- SmartView Software
Description
The Fluke TiX620 infrared camera features IR-Fusion technology with AutoBlend mode, picture-in-picture, continuous blending, and color alarms (above and below user defined temperatures). It has an extra-large 5.6 inch color TFT display (1280 × 800 pixel resolution), suitable for daylight operation and built-in GPS for geo-referencing.
The TiX620 has an 8 megapixel resolution digital, visible light camera for image and video recording. It is compatible with MATLAB and LabVIEW platforms to allow you to integrate camera data, infrared video and images to support R&D analysis.
