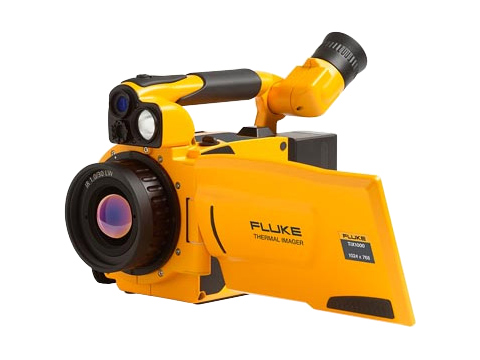

Fluke TiX1000 Infrared Camera
786,432 pixel resolution (1024 x 768), -40 to 3632°F, sensitivity ≤0.05°C, & Fluke Connect.
Overview
Features
- Built with Fluke Connect
- 1024 x 768 (786,432 pixels) resolution
- 2048 x 1536 (3,145,728 pixels) with Super resolution
- 0.6 mRad spatial resolution
- Temp Range: -40 to 3632°F (-40 to 2000°C)
- ±1.5°C or ±1.5% accuracy
- 30Hz frame rate
- IR-Fusion technology
- SDHC memory card
- Lasersharp, auto/manual focus
- Eversharp multifocal recording

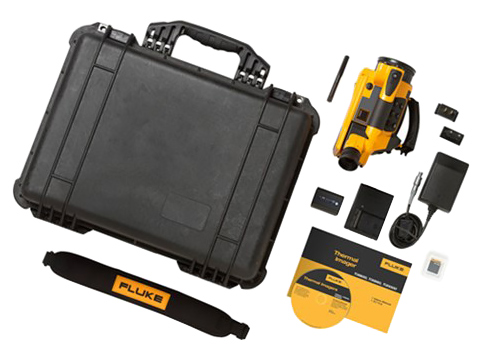

What's in the Box
- Two rechargeable batteries
- Battery charger and adapter
- AC adapter
- SD card reader
- FC SD card for Fluke Connect
- Protective lens cap
- Hand strap
- Neck strap
- Carrying case
- Warranty card
- Safety instructions
- Calibration certificate
- CD of product manuals & SmartView software
Description
The Fluke TiX1000 Infrared Camera is part of the first HD infrared camera that are built with Fluke Connect. The TiX1000 features 1024 x 768 (786,432 pixels) resolution and a 32.4° x 24.7° (1.0/30 mm) resolution. The Super Telephoto lens allows you to see a 5mm (0.2in) from 35m (115ft) away. The TiX1000 features the most advanced focus options available for consistently in focus image: LaserSharp Auto Focus, auto focus, manual and EverSharp multifocal recording features available on one camera.
The Fluke Expert Series offers the best flexibility of the entire Fluke infrared camera portfolio to capture spectacular images close up or from a distance. The TiX1000, TiX660 and TiX640 are compatible with 8 lens options (2x and 4x telephoto lenses, 2 wide angle lenses, 3 macro lenses and 1 standard lens) so great images can be captured despite certain obstacles.
