Overview

Features

  • Non-contact detection of network voltage
  • AC/DC current up to 10A or 600A
  • High sensitivity with a resolution of 0.01mV
  • Protection enables them to withstand overloads up to 8000V
  • VLowZ function detect the presence of ghost voltage by placing a burden on the circuit
  • Multi-position mounting
  • 2-Off positions

Description

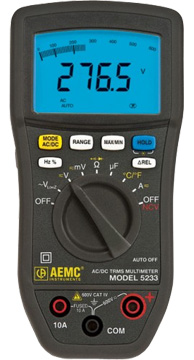

The AEMC 5233 TRMS Digital Multimeter features a non-electrical contact testing (NCV) function for detecting livce electrical circuits. This multimeter is designed for safety: IEC61010, 600V CAT IV. The Multimeter Model 5233 provides a Volt, Ohm, Continuity, Diode, Capacitance, Frequency, Duty Cycle and Ammeter function, as well as an AC voltmeter with low input impedance that is capable of finding ghost voltages by adding a burden to the circuit. It can measure up to 10 Amps directly and can measure temperature in both °C or °F using K-type thermocouples.

The rotary function switch provides two OFF positions (OFF and OFF NCV). While in the OFF NCV position, the display will turn red if placed close to a live cable, providing a safe and easy way to detect hot wires. This meter has a high sensitivity with a resolution of 0.01mV and can withstand overloads up to 8000V.

The Model 5233 is ideal for electrical installers, electricians and heating or air-conditioning specialists.

Applications include:

  • General purpose testing
  • Detect loose electrical wiring
  • Detect live circuits
  • Temperature checking
