Overview

Features

  • 10,000-count blue electroluminescent backlit display
  • Measures up to 2000VAC (1400V peak), 1000VDC and AC+DC with resolution to 10mV
  • Measures up to 1000AAC
  • IP54 Rated
  • Tracks Min/Max and peak values
  • Measures frequency to 20kHz with 0.1Hz
  • Measures temperature in °F or °C using a K-type Thermocouple
  • True InRush™ current measurement with 1mS capture
  • Jaw opening up to 2.36"
  • Leads are constructed with a flexible silicone material

Description

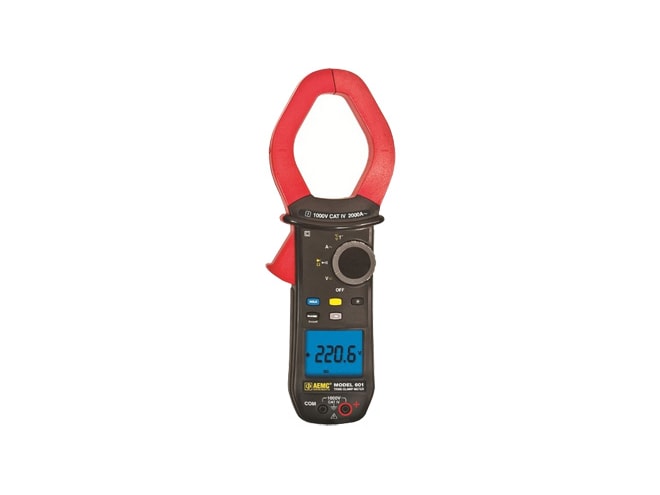

The AEMC Model 601 TRMS Clamp On Meter provides a new standard for safety and measurement capability not available in any other clamp meter sold today. Safety Rated at 1000V CAT IV, it is safe to operate in all electrical environments. It is rugged enough for the most demanding work environments and will withstand both dust and water spray with its IP54 rating. It is ergonomically designed and easily used by one hand, including function selection and button pushing even with a glove on. In addition to the standard measurement of volts, amps, frequency, resistance, diode checking and continuity, the Model 601 offers several unequaled functions including: True InRush™, Temperature measurement and more.

Applications include:

  • General purpose electrical troubleshooting
  • Motor start up analysis
  • Voltage troubleshooting
  • Bond and continuity checking
  • Temperature analysis
