Fluke 190 Series II ScopeMeter Oscilloscope

Four-channel, handheld portable oscilloscope with 1000 V CAT III/600 V CAT IV safety rating.

Fluke 190 Series II ScopeMeter Oscilloscope — Fluke 190-204 Series II ScopeMeter Oscilloscope

Fluke 190-204 Series II ScopeMeter Oscilloscope
Fluke 190-204 Series II ScopeMeter Oscilloscope

Retired products cannot be ordered

The Fluke 190 Series III ScopeMeter Oscilloscope is the suggested replacement

View Company Reviews

Manufactured

By Fluke

Includes

FREE UPS 2nd Day Air Shipping
FREE Lifetime Tech Support

Product Manual Product Specs

Features

Four independent isolated input channels
60, 100, 200 and 500 MHz bandwidths
Sample rate: Up to 2.5 GS/s
Sample rate resolution: Up to 400 ps
Deep memory: 10,000 point per trace waveform capture
CAT III 1000 V / CAT IV 600 V safety rating
Seven hour, high performance Li-ion batteries
Battery door for convenient battery access
Isolated USB ports for memory devices and PC connectivity

Interested in a FREE demo? Call 1-800-884-4967 or complete this form to submit your request.

What's in the Box

Power Adapter (BC190)
Double capacity Li-ion battery pack (BP291)
Red probe (VPS410-R)
Blue probe (VPS410-B)
Gray probe (VPS410-G)
Green probe (VPS410-V)
USB cable A-B (mini)
Hanging strap
Side strap
CD manual w/FlukeView software demo
Statement of calibration

The Fluke 190 Series II oscilloscope is the first of its kind, high-performance, portable oscilloscope. The Fluke 190 Series II features four independent, isolated, input channels; an dust and drip-proof IP51 rating, as well as a CAT III 1000 V / CAT IV 600 V safety rating. The Fluke 190 Series II oscilloscope is an excellent choice for industrial plant maintenance professionals who work on heavy-duty electrical equipment, electro-mechanical machinery and plant automation control systems.

Fluke 190 Series II oscilloscopes have many features including four, independent, floating, isolated inputs up to 1000 V. It has a high-speed sampling rate of up to 2.5 GS/sec, deep memory with 10,000 points per trace of waveform capture, long-lasting Li-ion batteries which provide up to 7 hours of operation, isolated USB host ports for direct data storage and a USB device port for easy PC connection and communication.

The Fluke 190 Series II ScopeMeter is available with optional FlukeView ScopeMeter software, which has many features to greatly enhance the functionality of the meter. FlukeView ScopeMeter software can:

Store the instrument's screen copies on the PC in color
Copy screen images into reports and documentation
Capture and store waveform data from your ScopeMeter on a PC
Create and archive waveform references for automatic or visual comparison
Includes waveform analysis, e.g. FFT spectrum analysis
Copy waveform data into a spreadsheet for detailed analysis
Use cursors for parameter measurement

Spec Sheets

Fluke 190 Series II ScopeMeter Oscilloscope Datasheet PDF (698 KB)

Manuals

Links

All possible part numbers

Current Clamps

Fluke 80i-110s AC/DC Current Clamp

Fluke 80i-110s AC/DC Current Clamp

10 or 100A current, 600V maximum voltage, with zero error adjustment and BNC connector.

$1,064.99 $958.49

Fluke i1000s AC Current Clamp

Fluke i1000s AC Current Clamp

Allows accurate measurement of currents from 100mA to 1000A rms (5Hz to 100kHz) without breaking into the circuit.

$763.99 $687.59

Fluke i1010 AC/DC Current Clamp

Fluke i1010 AC/DC Current Clamp

Battery-powered, Hall-effect probe measures 600AAC or 1000ADC without breaking the circuit.

Starting at $490.49

Fluke i200s AC Current Clamp

Fluke i200s AC Current Clamp

Dual range (20A and 200A) measurement with voltage output, BNC connector, and dual-banana adapter.

Fluke i3000s AC Current Clamp

Fluke i3000s AC Current Clamp

30, 300, and 3000A current ranges with voltage output, BNC connector, and dual-banana adapter.

$783.99 $705.59

Fluke i3000s Flex AC Current Clamp

Fluke i3000s Flex AC Current Clamp

30, 300, and 3000A current ranges with flexible head, voltage output, BNC connector, and banana adapter.

Starting at $705.59

Fluke i30s AC/DC Current Clamp

Fluke i30s AC/DC Current Clamp

CAT III 300V safety rated current clamp with 30A DC (20A AC) range.

$782.99 $704.69

Fluke i310S AC/DC Current Clamp

Fluke i310S AC/DC Current Clamp

CAT III 300V safety rated current clamp with 450A DC (300A AC) range.

$610.99 $549.89

Fluke i400s AC Current Clamp

Fluke i400s AC Current Clamp

CAT IV 600V & CAT III 1000V safety rated clamp with BNC connector for measuring up to 400A.

$371.99 $334.79

Fluke i400 AC Current Clamp

Fluke i400 AC Current Clamp

CAT IV 600V & CAT III 1000V safety rated clamp with current output and shrouded banana plugs for measuring up to 400A.

Fluke i6000s Flex AC Current Clamp

Fluke i6000s Flex AC Current Clamp

60, 600, and 6000A current ranges with flexible head, voltage output, and BNC connector.

Starting at $916.19

Fluke i5s AC Current Clamp

Fluke i5s AC Current Clamp

Low level current clamp measures up to 5A AC on conductor diameters up to 15mm with 400mV/A output and BNC connector.

Starting at $783.99

Sensors/Probes

Fluke VPS410-II Probe Set

Fluke VPS410-II Probe Set

10:1 voltage probe set, 500 MHZ.

Starting at $262.99

Fluke AS400 Probe Set

Fluke AS400 Probe Set

2 & 4mm test probes, large jaw probe tip, 4mm banana plug & hook clip reference leads, and large jaw alligator clip for 4mm banana plug.

Batteries/Chargers

Fluke BP291 Li-Ion Battery

Fluke BP291 Li-Ion Battery

4800mAh high capacity lithium-ion battery for use with the 190-II or 430-II series.

$463.99 $417.59

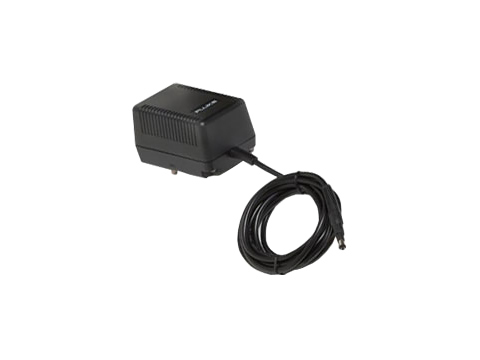

Fluke BC190 Power Adapter

Fluke BC190 Power Adapter

Universal 100 to 240V ±10% line voltage and battery charger.

Accessories

Please consider these optional accessories.

Fluke Professional Tool Backpack

Fluke Professional Tool Backpack

Durable high-quality polyester, injection molded plastic bottom base, six storage compartments.
