MadgeTech PRTemp1000IS Pressure & Temp Data Logger
Intrinsically safe, rugged, pressure and temperature data logger.
- By MadgeTech
Overview
Features
- Intrinsically safe
- Rugged
- Programmable start time
- Real-time operation
- User-friendly
- 1/4in NPT pressure port
What's in the Box
- NIST traceable calibration certificate
Description
The PRTemp1000IS is a rugged pressure and temperature data logger. It measures and records temperature and pressure data at user defined intervals. The PRTemp1000IS has been Factory Mutual certified as intrinsically safe for Class I, Division 1, groups A, B, C and D and non-incendive for Class I, Division 2, groups A, B, C and D. This certification makes the device ideal for uses in hostile environment applications such as air conditioning systems, chilled water, hot water, air, gas, oil and steam pressure systems. The internal temperature sensor provides accurate temperature measurements without the need of a separate temperature data logger. The logger can be started to take measurements as often as every two seconds, up to one reading every twelve hours. It will store up to 16,383 readings in its non-volatile memory. The PRTemp1000IS uses a rugged stainless steel pressure strain gauge to accurately measure the pressure. The device comes standard with a common 1/4" NPT fitting, which allows the logger to be adapted to almost any pressure fitting. There are many different pressure ranges available to suit most any application. The standard pressure ranges are 30 PSIA(G), 100 PSIA(G), 300 PSIA(G), 500 PSIA(G), 1000 PSIA and 5000 PSIA.
Applications for the MadgeTech PRTemp1000IS:
- Oil & gas industries
- Pneumatics
- Process control systems
- Gas compressors
- Natural gas production
- Lubrication systems
- Chemical processing
- Pulp and paper processing
- Medical instrumentation
- Environmental studies
- Waste water treatment
- HVAC
- Refrigeration
Documents
Accessories
Required Components
These additional components are required for the operation of your product. We strongly advise you to purchase these components unless you already own them or own a suitable alternative.

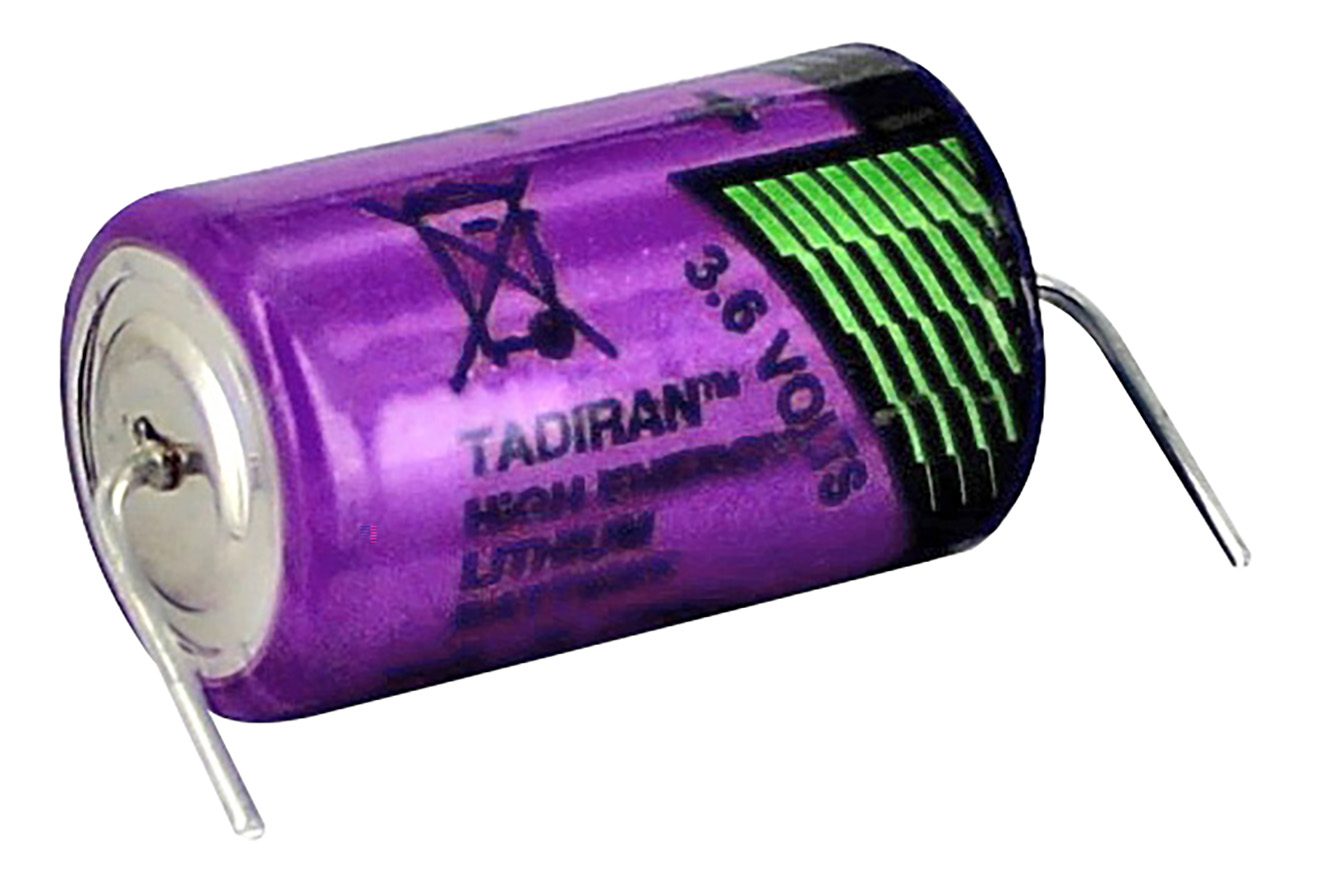

Batteries/Chargers
Cases
