Fluke 1587/ET Advanced Electrical Troubleshooting Kit
Includes a Fluke 1587 insulation multimeter, Fluke i400 current clamp, and a Fluke 62 mini infrared thermometer.
Overview
Features
- Fluke 1587
- Insulation Test Voltages: 50V, 100V, 250V, 500V, 1000V
- Insulation Test: 0.01 MΩ to 2.0GΩ
- AC/DC voltage
- DC millivolts
- Insulation test smoothing reading
- Frequency measurement
- Capacitance measurement
- Diode test
- Temperature measurement
- CAT III 1000V, CAT IV 600V measurement category
- Fluke i400 Clamp Meter
- Measures up to 400A AC
- 1 - 400A continuous current range
- 2% + 0.06A basic accuracy
- 1mA / amp output
- CAT IV 600V / CAT III 1000V Safety rating
- Max. conductor 32mm diameter
- Fluke 62 Mini IR Thermometer
- Temperature measurement range up to 500°C (932°F)
- High-resolution optics
- Accurate to within ±1.5% of reading
- MAX temperature display
- Laser sighting
- Backlit display
Description
The Fluke 1587/ET advanced electrical troubleshooting kit features products that have been specifically selected for both troubleshooting and preventative maintenance applications. Establishing preventative maintenance programs are becoming critical to maintaining the uptime of electrical equipment and can significantly reduce both planned and unplanned downtime. Unplanned downtime costs are difficult to calculate, but often significant. For some industries, it can represent 1% to 3% of revenue (potentially 30% to 40% of profits) annually.
The Fluke 1587/ET advanced electrical troubleshooting kit includes the following products:
Fluke 1587 Insulation Multimeter
The Fluke 1587 insulation multimeter has a large display with backlight and measures AC/DC voltage, DC millivolts, AC/DC milliamps, resistance (Ω) and continuity. For added user protection the meters have live circuit detection which prevents an insulation test if voltage greater than 30V is detected. The Fluke 1587 also has auto-discharge of capacitive voltage as an added user protection. The auto power off feature saves battery life.

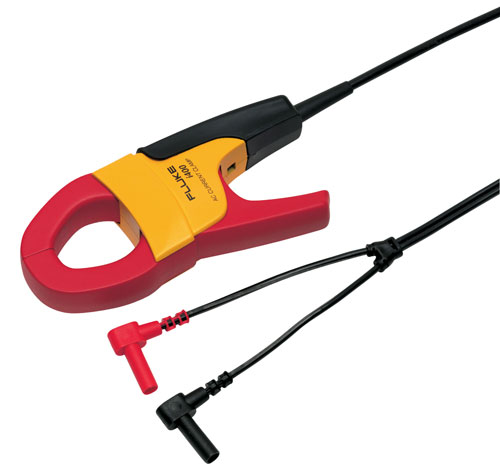

Fluke i400 AC Current Clamp
The Fluke i400 AC current clamp is a single range 400A AC current clamp with current output via safety shrouded banana plugs. The clamp is compatible with most Fluke multimeters or any other current measurement device that accepts 4mm-shrouded banana plugs and has an AC milliamp range. The division ratio for the Fluke i400 is 1000:1.
Fluke 62 Mini IR Thermometer
Compact and convenient, the handheld Fluke 62 Mini infrared thermometer makes it quick and easy to troubleshoot maintenance problems by measuring surface temperatures from a safe distance. The Fluke 62 Mini infrared thermometer is useful anywhere that temperature plays a role in product quality or equipment maintenance. Equipped with a single dot laser to indicate the center of the target, the Fluke 62 Mini infrared thermometer's large temperature display provides current and MAX surface temperatures.
