Amprobe HD110C Heavy Duty Multimeter
Professional, rugged digital multimeter designed for harsh environments.
Overview
Features
- Voltage up 1500 V DC & 1000 V AC
- Current up to 2 A DC & AC
- Resistance up to 20 MΩ
- Diode/Continuity Test
- CAT IV 1000 V safety rating
- IP67 rated
- Magne-Grip holster w/magnetic hanging strap
- Drop-resistant housing and PCB mounting
- Includes high voltage test leads w/threaded alligator clips
Description
The Amprobe HD110C heavy duty digital multimeter is designed for professional use in harsh environments. This Amprobe multimeter is unusually rugged and reliable in everyday heavy use applications. The Amprobe HD110C multimeter is made using waterproof construction to prevent dirt, grime, and moisture from entering the case and causing inaccurate readings or damaging shorts.
The Amprobe HD110C multimeter is built of tough, fire retardant thermoplastic resistant to grease and chemical spills. All sensitive components are shock-mounted for a drop resistance to at least eight feet.
The heavy duty Amprobe HD110C multimeter has an extended voltage measurement capability of 1500 V DC and 1000 V AC, unmatched by any other line of digital multimeters. The extended voltage ranges can withstand transients up to 12 kV.
The Amprobe HD110C multimeter ships complete with:

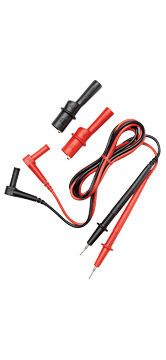

- Test leads (TL1500)
- Battery
- Hex wrench in holster
- Magne-Grip flex strip
- Manual
The Amprobe HD110C Heavy Duty Multimeter Specifications
Function | Range | Accuracy |
---|---|---|
DC Volts | 200 mV, 2 V, 20 V, 1500 V |
±(0.1% rdg + 2 dgt) |
Resolution | 0.1 mV | |
Input Impedance | 10 MΩ | |
Transient Protection | 12 kV impulse (1.2 µS/50 µS) based on EN 61010-1:2001 impulse requirement for at CAT IV 1000 V product. This product should not be used in installations where transients exceed 12 kV. | |
OL Protection | 1500 V DC or 1000 V AC RMS | |
AC Volts (45 Hz to 2 kHz) |
200 mV to 200 V(45 to 500 Hz) 200 mV to 200 V (500 Hz - 2 kHz) 1000 V (50 to 60 Hz) 1000 V (60 to 500 Hz) |
±(0.8% rdg + 4 dgt) ±(1.5% rdg + 5 dgt) ±(0.8% rdg + 4 dgt) ±(1.5% rdg + 5 dgt) |
Resolution | 0.1 mV | |
Input Impedance | 10 MΩ | |
OL Protection | 1500 V DC or 1000 V AC RMS | |
Transient Protection | 12 kV impulse (1.2 µS/50 µS) based on EN 61010-1:2001 impulse requirement for at CAT IV 1000 V product. This product should not be used in installations where transients exceed 12 kV. | |
DC Current |
200 µA to 20 mA 200 mA to 2 A |
±(0.5% rdg + 2 dgt) ±(1.0% rdg + 2 dgt) |
Resolution | 0.1 µA | |
Burden voltage |
250 mV max. (1 mV/1 µA on 200 µA range) (100 mV/a mA on 2 mA range) (10 mV/ 1 mA on 20 mA range) (1.5 mV/1 mA on 200 mA range) (500 mV/1 A on 2 A range) |
|
OL Protection | A Input (F 2 A/1500 V, size 8 x 65 mm IR fast blow ceramic) | |
AC Current (45 Hz to 1 kHz) |
200 µA to 20 mA 200 mA to 2 A |
±(0.8% rdg + 4 dgt) ±(1.2% rdg + 4 dgt) |
Resolution | 0.1 µA | |
Burden voltage | 250 mV max. (1 V on 2 A range) | |
OL Protection | Same as DC current | |
Resistance |
200 Ω 2 kΩ to 200 kΩ 2 MΩ 20 MΩ |
±(0.5% rdg + 4 dgt) ±(0.3% rdg + 2 dgt) ±(1.0% rdg + 4 dgt) ±(2.0% rdg + 4 dgt) |
Resolution | 0.1 Ω | |
Overload Protection | 1500 V DC or 1000 V AC RMS | |
Open circuit voltage | 200 Ω range all other ranges |
3.0 V DC typical 0.3 V DC typical |
Diode/Continuity test | ||
Test current | 1 m A DC typical | |
Test/Open Circuit Voltage | 3.0 V DC typical | |
Diode Accuracy | ±(1.5% rdg + 2 dgt) | |
Continuity audible threshold | < 50 Ω ± 25 Ω | |
Response time | < 100 msec | |
Overload protection | 1500 V DC or 1000 V AC RMS |
