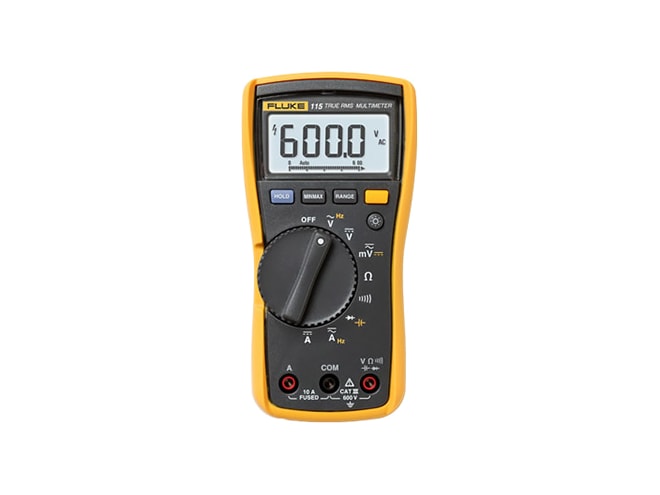

Fluke 115 Multimeter
Compact, True RMS multimeter for field service technicians.
Overview
Features
- AC/DC millivolts
- Range: 600.0mV
- DC accuracy: 0.5% + 2
- AC accuracy: 1.0% + 3 (45 Hz to 500 Hz); 2.0% + 3 (500 Hz to 1 kHz)
- AC/DC Volts
- Ranges: 6.000V; 60.00V; 600.0V
- DC accuracy: 0.5% + 2
- AC accuracy: 1.0% + 3 (45 Hz to 500 Hz); 2.0% + 3 (500 Hz to 1 kHz)
- Auto Volts
- Range: 600.0V
- Accuracy: 2.0% + 3 (dc, 45 Hz to 500 Hz); 4.0% + 3 (500 Hz to 1 kHz)
- DC Amps
- Ranges: 6.000A, 10.00A, 20A overload
- Accuracy: 1.0% + 3
- Capacitance
- Ranges: 1000nF, 10.0μF, 100.0μF, 9999μF
- Accuracy: <1000μF: 1.9% + 2; >1000μF: 5% + 20
- Diode Test
- Range: 2.000V
- Accuracy: 0.9% + 2
Description
The Fluke 115 field service technician's multimeter is the solution for a wide variety of electrical and electronic testing applications. This True RMS meter provides easy, one-handed operation in a compact package. The Fluke 115 can measure AC/DC voltage, AC/DC amps, ohms, resistance, continuity, frequency, and capacitance as well as test diodes.
Other features of the Fluke 115 field service technician's multimeter include a 10A rating, with the ability to handle a 20A overload for 30 seconds. The large, white LED backlight improves visibility in poorly lit areas. Fluke 115 multimeters offer a compact, ergonomic design and calculates the min/max/average with elapsed time to record signal fluctuations.
The Fluke 115 field service technician's multimeter is CAT III 600 V safety rated and compatible with the optional magnetic holder (ToolPak™). Accuracies are specified for one year after calibration, at operating temperatures of 18°C to 28°C, with relative humidity at 0% to 90%. The Fluke 115 comes with Fluke TL75 test leads, holster, user's manual and 9V battery (installed).
