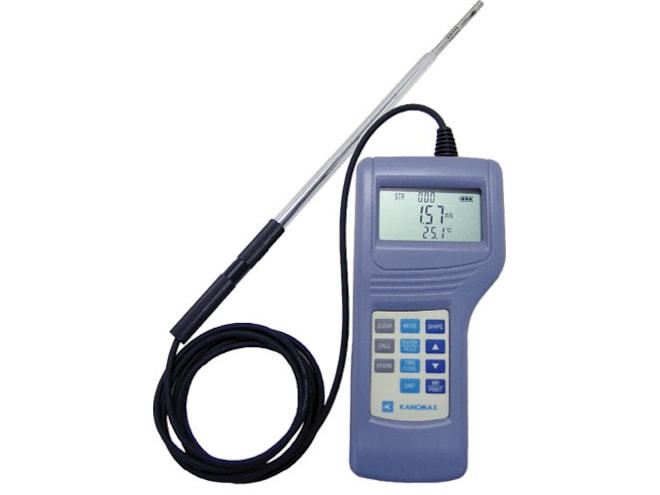

Kanomax A031 Multi-Function Anemometer
Hot-wire anemometer capable of measuring both air velocity and temperature.
Overview
Features
- Air velocity:
- Range: 20 to 6000 FPM ( 0.10 to 30.0 m/s)
- Accuracy: ±2.0% of reading ±3 FPM
- Resolution: 1 FPM or 0.01 m/s
- Temperature:
- Range: -4 to 140°F
- Accuracy: ±1°F
- Resolution: 0.1°F or 0.1°C
- Differential Pressure:
- Range: -5.00 to 500 kPa
- Accuracy: ±3% of reading or ±0.01 kPa
- Resolution: 0.01 kPa
- Volumetric calculation capability
- RS232 digital output
- DC 0 - 3V optional analog output
Description
The Kanomax A031 series multi-function hot-wire anemometers feature a single probe capable of measuring air velocity and temperature simultaneously. Volumetric flow calculations can be performed on the Kanomax A031 and both straight and articulating probes are available. The built-in memory allows measurement data to be stored for future usage. The Kanomax A031 series meters have a standard RS-232C output while an analog output and differential pressure measurements are available as options.
With the Kanomax A031 series anemometers the data can be reviewed on screen, printed or downloaded to a PC via the built in RS-232C port. The articulating probe offers great versatility making the A031 a perfect meter for a variety of applications.
The Kanomax A031 multi-function anemometer ships complete with meter, probe, operation manual, carry case, AA Batteries, RS-232C cable, Windows Software and AC adaptor.
Applications for the Kanomax A031 Multi-Function Anemometer:
- HVAC ventilation and balancing
- Manufacturing control
- Laboratory control
- IAQ investigation
- Industrial hygiene quality control
- Flow hood monitoring
