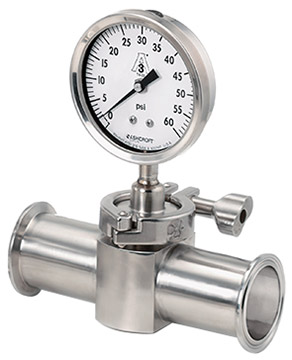

Ashcroft 1036 In-Line Sanitary Gauge

Designed specifically for the pharmaceutical, biotechnology & food processing markets.

Starting at $451.72

View Company Reviews
Manufactured
Includes
Availability
  • Usually ships in 2-4 weeks
Product Specs

Features

  • 3.5in dial size
  • 15 to 1000 psi including vacuum & compound
  • ±1.5% of span (100 - 1000 psi) accuracy
    • ±2% of span for vacuum, compound & under 100 psi
  • 300 series SS case & ring
  • 316L stainless steel bourdon tube & socket
  • Optional 1037 Tri-Clamp sanitary fitting for 1/2 to 2in pipes (purchased separately)

The Ashcroft Type 1036 in-line sanitary pressure gauge and Type 1037 sanitary instrument fitting virtually eliminate process deadleg. The design of the Type 1036 sanitary gauge and instrument fitting allows for the diaphragm of the gauge to be positioned at the gauge instrument fitting, eliminating the pocket or deadleg that may cause contamination.
