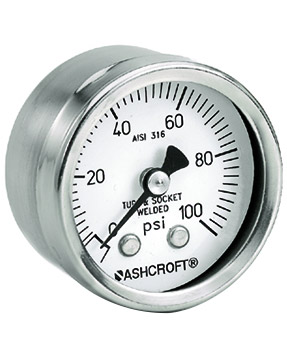

Ashcroft 1008S Analog Pressure Gauge

Analog pressure gauge features stainless steel cases & are available in 40, 50, 63 and 100mm sizes .

Starting at $66.48

View Company Reviews
Manufactured
Includes
Availability
Product Specs (2 Files)

Features

  • Patented PowerFlex movement
  • Optional PLUS!™ Performance
  • All stainless steel welded construction
  • ±3-2-3% of span (ASME, Grade B) accuracy
  • True Zero pointer indication
  • Ventable plug
  • MSL helium leak tested to 1X10- 6 ATM - cc/sec
  • Meets ASME B40.100 and EN837-1 standards
  • RoHS compliant
  • 1-year limited warranty
  • Need it in a hurry?
    • Ashcroft Gold Service guarantees shipping in five days or less
    • Call us for additional details

The Ashcroft 1008S analog pressure gauge features stainless steel cases and is available in 40, 50, 63 and 100mm sizes making them ideal whenever space limitations and atmospheric and process corrosion exists.

Incorporating the tried and true performance and quality for which Ashcroft gauges are known, the Ashcroft 1008S analog pressure gauge is available in ranges from vacuum to 15,000 psi, including compound and metric ranges. Standard connections include 1/8, 1/4 and 1/2 inch NPT fittings that can be located on the lower portion or back of the Ashcroft 1008S analog pressure gauge. A ventable plug can be sealed or vented depending on the environment. Patented PowerFlex movement and optional glycerin fill make the Ashcroft 1008S analog pressure gauge an outstanding choice for vibration, shock, and pulsation applications.

Ashcroft 1008S analog pressure gauges, in 63 and 100mm dial sizes, are also available with a PLUS!™ Performance option. PLUS!™ Performance is a new, exclusive technology which provides liquid-filled performance in a dry gauge. PLUS!™ Performance advantages over standard dry gauges include dampened vibration and pulsation resulting in a steadier pointer and an easier to read gauge. PLUS!™ Performance advantages over liquid filled gauges include lower cost, no leakage, no fill lines, wider temperature range, and easier recalibration.

Ashcroft Pulsation Dampener
Ashcroft Pulsation Dampener

Brass, steel, or stainless steel material options & 1/4 or 1/2 NPT connection options.

Starting at $77.99
Ashcroft Pressure Snubber
Ashcroft Pressure Snubber

Brass, stainless steel, or monel material options with 1/4 or 1/2 NPT connection options.

Starting at $64.94
Ashcroft Siphons
Ashcroft Siphons

Pig tail or coil pipe styles, iron, brass, or stainless steel materials.

Starting at $27.64
Ashcroft V02 Gauge Valve
Ashcroft V02 Gauge Valve

Isolates process from instrument assembly, 316L Stainless Steel construction.

Starting at $180.63
Ashcroft V01 Gauge Valve
Ashcroft V01 Gauge Valve

Isolates process from instrument assembly, 316L stainless steel construction, 6,000 psi max pressure.

Starting at $118.34
Ashcroft V01 Block and Bleed 2-Valve Manifold
Ashcroft V01 Block and Bleed 2-Valve Manifold

Isolates and bleeds the process from instrument assembly, 316L stainless steel construction.

Some Models in Stock
Starting at $155.72
Ashcroft V02 Block and Bleed 2-Valve Manifold
Ashcroft V02 Block and Bleed 2-Valve Manifold

Isolates and bleeds the process from instrument assembly, 316L stainless steel construction.

Starting at $247.91
Ashcroft V01 3 Valve Manifold
Ashcroft V01 3 Valve Manifold

Isolates each port and equalize pressure for instrument maintenance, 316L stainless steel construction.

Starting at $218.01
Ashcroft V01 5 Valve Manifold
Ashcroft V01 5 Valve Manifold

Isolate and bleed the process for each port as well as equalize pressure for instrument maintenance.

Starting at $311.45
Ashcroft V02 Direct & Remote Mount Three-Valve Manifolds
Ashcroft V02 Direct & Remote Mount Three-Valve Manifolds

Isolates each port and equalizes pressure for instrument maintenance, 316L stainless steel construction.

Starting at $323.91
Ashcroft V03 3 Valve Manifold
Ashcroft V03 3 Valve Manifold

3-valve manifolds isolate each port and equalize pressure for instrument maintenance.

Starting at $225.17
Ashcroft V02 Direct & Remote Mount 5 Valve Manifold
Ashcroft V02 Direct & Remote Mount 5 Valve Manifold

5-valve manifolds isolate and bleed the process for each port as well as equalize pressure for instrument maintenance.

Starting at $604.14
Ashcroft 2198 MicroTube Siphon
Ashcroft 2198 MicroTube Siphon

Protection for pressure instruments from elevated temperatures, 800°F max temperature, 5000 psi max pressure.

Starting at $300.38
Ashcroft 1198 Finned Siphon
Ashcroft 1198 Finned Siphon

Protection for pressure instruments from elevated temperatures, 700°F max temperature, 3000 psi max pressure.

Starting at $347.49
Ashcroft V02 Low Pressure Ball Valve
Ashcroft V02 Low Pressure Ball Valve

Floating ball design provides bi-directional isolation, anti-blowout stem design, 1000 psi max pressure rating.

Starting at $56.05
Ashcroft V02 High Pressure Ball Valve
Ashcroft V02 High Pressure Ball Valve

Floating ball design provides bi-directional isolation, anti-blowout stem design, 6092 psi max pressure.

Starting at $386.19
Part Number Dial Size Pressure Units Pressure Range Process Connection Fill Price Available
501008S02BXUC160BR
Show Full Configuration
50mm (2")
Bar
0 to 160 bar
1/4 inch NPT
Dry
 $141.58 3 in stock
631008S02L10000#
Show Full Configuration
63mm (2.5")
PSI
0 to 10,000 psi
1/4 inch NPT
Dry
 $72.72 3 in stock
401008SL01LXGX6B60#
Show Full Configuration
40mm (1.5")
PSI
0 to 60 psi
1/8 inch NPT
Liquid Filled (Glycerin)
 $291.95 1 in stock
501008S02L2000#
Show Full Configuration
50mm (2")
PSI
0 to 2,000 psi
1/4 inch NPT
Dry
 $120.70 1 in stock
631008S02L160#
Show Full Configuration
63mm (2.5")
PSI
0 to 160 psi
1/4 inch NPT
Dry
 $66.48 1 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 2-4 weeks. Call for expedite options". Click here to select options
