Monarch Palm Strobe X Stroboscope

High intensity, multi-function compact xenon stroboscope.

Monarch Palm Strobe X

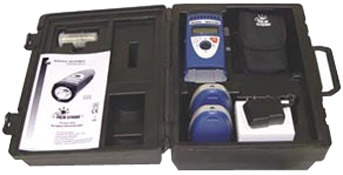

Monarch Palm Strobe X Deluxe Kit

Starting at $651.00

View Company Reviews

Manufactured

By Monarch Instrument

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Availability

Usually ships in 2-3 business days

Product Manual Product Specs

Features

6 digit alphanumeric backlit LCD display
Light Power 7.9 watts @ 6000 FPM, 150 mJoules up to 3100 FPM
Flash duration: 10 - 30 µsec typical
Flash range (internal): 100 - 12,500 FPM
Flash range (external): 0 - 14,000 FPM
Flash rate accuracy, greater of ±0.01% of reading or ±0.5 FPM
External input: 0 to 5 volt TTL compatible (+12V pk max) 20 µsec min pulse width
Tachometer range: 10 - 250,000 RPM
Tachometer accuracy: ± 0.01% or 0.1 RPM
Adjustment: Four-quadrant tuner button with blinking decade select for flash rate up and down, multiply by 2 or divide by 2
Modes: internal, external, tachometer, preset, x or ÷2, locked on
Meets RoHS standards

What's in the Box

NIST traceable certificate

The Monarch Palm Strobe X stroboscope is the new industrial standard for high intensity, multi-function compact Xenon stroboscopes. Featuring excellent brightness, exceptional features, and extra long battery life, the Monarch Instrument Palm Strobe X stroboscope has a unique one-touch joystick-type button that allows single hand operation for fast fractional RPM tuning.

The Palm Strobe X features modes for internal tuning, external TTL input, and tachometer display. Eight memory positions provide rapid recall of user defined frequencies. With internal tuning mode it has a flash range of 100 to 12,500 flashes per minute (FPM) with an accuracy of ±0.5 FPM (or ±0.01% of reading) and a resolution of ±0.1 FPM. Using external sensors it's flash range is 0 to 14,000 FPM with an accuracy of ±0.2 FPM. External input is 0-5VDC and TTL compatible. The tachometer mode to allows measurements from 5 to 250,000 RPM with an accuracy of ± 0.01% or 0.1 RPM.

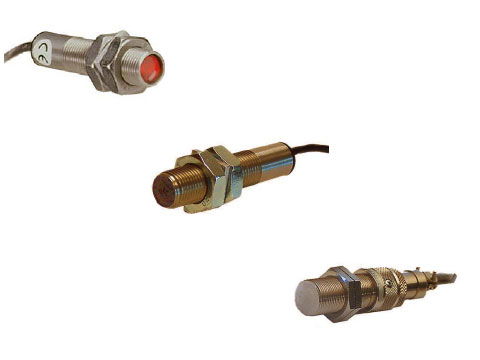

This stroboscope can be used alone or with external sensors. When used in conjunction with the SPSR sensor interface module it is compatible with ROS-P, IRS-P, and MT-190P sensors. Sensors must have phone plug connections.
