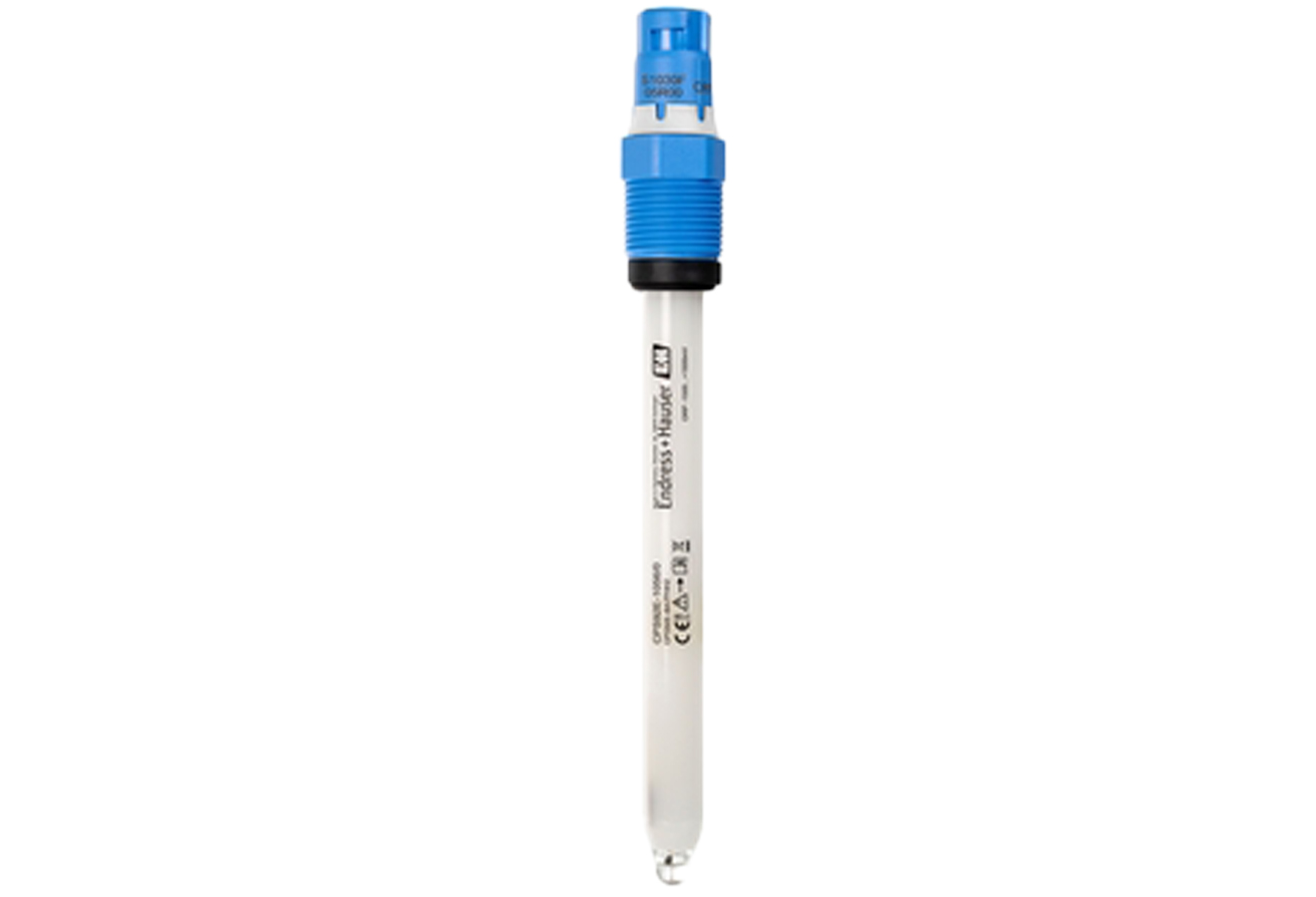

E+H Memosens CPS92E Digital ORP Sensor
Memosens 2.0 glass sensor for heavily polluted media in chemical industry, paper, pigment production.
Overview
Features
- -1,500 to 1,500 mV measuring range
- 32 to 230 °F (0 to 110 °C) process temperature
- 11.6 to 203 psi (0.8 to 14 bar) absolute process pressure
- NTC 30K temperature sensor
- IP68
- ATEX, IECEx, CSA C/US, NEPSI, Japan Ex and INMETRO approvals for use in
- hazardous areas Zone 0, Zone 1 and Zone 2.
Description
The E+H Memosens CPS92E Digital ORP Sensor is specialized on media with a high content of suspended solids such as dispersions, precipitations or emulsions. The open aperture prevents fouling and ensures the most reliable measurement. Thanks to Memosens 2.0 digital technology, CPS92E combines maximum process integrity with simple operation. It resists moisture, enables lab calibration and offers extended storage of calibration and process data providing the perfect basis for predictive maintenance.
Applications
- Chemical processes
- Pulp and paper industry
- Contaminated media:
- Solids
- Emulsions
- Precipitation reactions
- Dispersions
