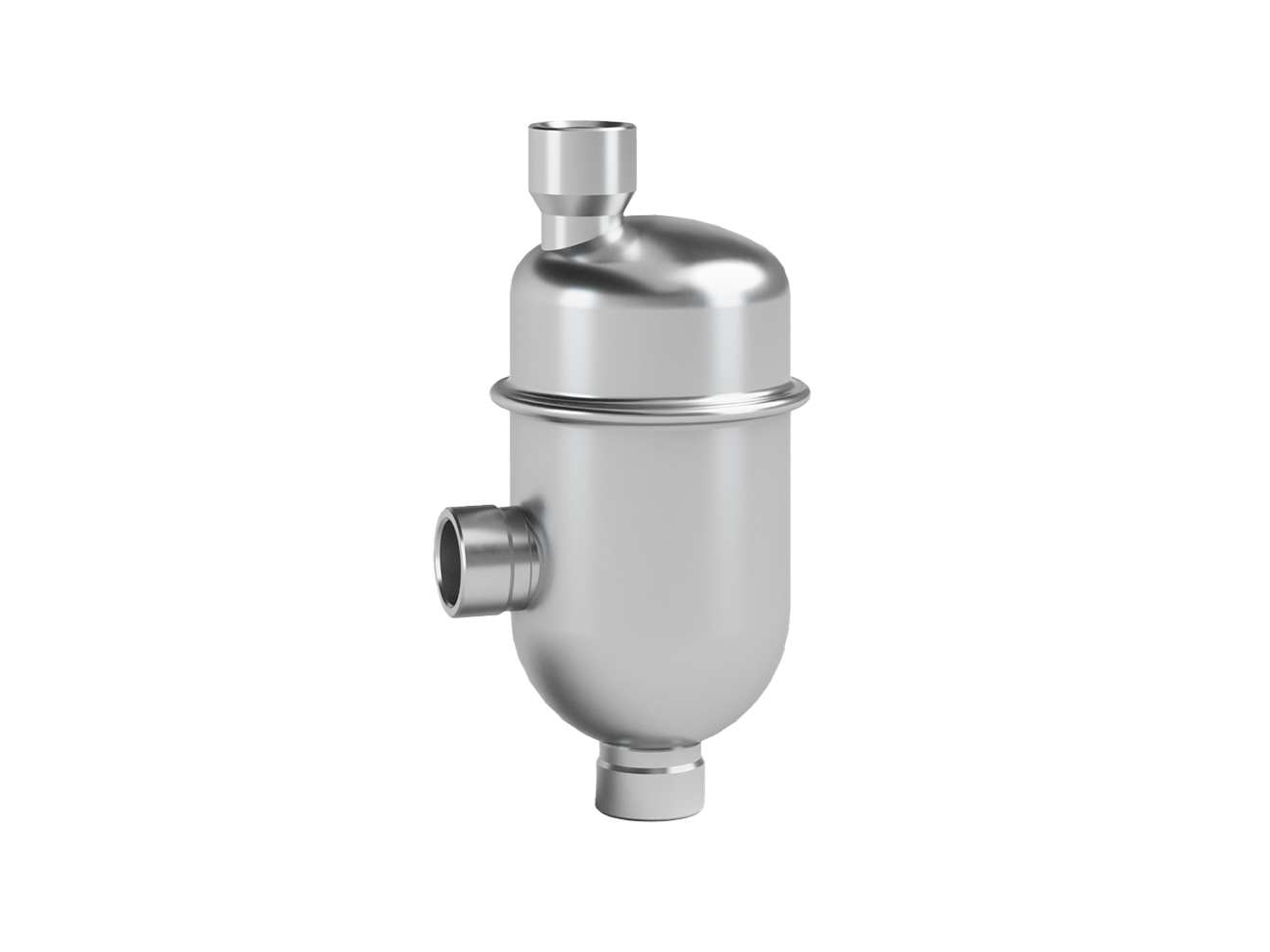

Armstrong International 11/22/13-AV Series Air Vents

Stainless steel air vent for positive venting of air/gases under pressure, sealed, tamperproof construction, and featuring elliptical floats.

Features

  • 9,500 lb/hr maximum capacity
  • Maximum allowable pressure:
    • 11-LD: 500 psig @ 100°F (34 barg @ 38°C)
    • 22-LD: 600psig @ 100°F (41barg @ 38°C)
    • 13-LD: 570psig @ 100°F (39barg @ 38°C)
  • 304-L stainless steel body material
  • Connection sizes:
    • 11-AV: 1/2", 3/4"
    • 22-AV: 3/4"
    • 13-AV: 1"

The Armstrong International 11/22/13-AV Series Air Vents have been developed to provide positive venting of air/gases under pressure.

The body and cap and all working parts of the No. 11-AV, 22-AV and 13-AV are made of high-strength, corrosion-resistant stainless steel. Body and caps are welded together to form a permanently sealed, tamperproof unit with no gaskets. Elliptical floats and high leverage enable these compact air/gas vents to provide a capacity up to 115 SCFM (195 m3h). Lever action is guided to ensure proper seating of the valve under all operating conditions.

All stainless steel construction provides protection where exposure to either internal or external corrosion is a problem. These air/gas vents have the same proven free-floating mechanisms used in other Armstrong steam traps. These vents are suitable for pressures up to 600 psi at 100˚F (41 bar @ 38˚C).

Part Number Model Connection Size and Type Outlet Connection Size Maximum Operating Pressure Orifice Price Available
C3510-3
Show Full Configuration
11-AV (1/2in or 3/4in ports, no side connection)
3/4in NPT
1/2in
178 psi
1/8
 $529.00 6 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 2-3 weeks". Click here to select options
