Rosemount 114P Protection Tubes
Threaded or flanged protection tubes with welded end cap. .
Overview
Features
- Options for special testing requirements, such as External Hydrostatic Pressure Test and Dye Penetration Test
- Material Certification option to ensure material traceability.
- Immersion lengths from 50 to 400mm
- Contact Instrumart to customize a longer one
Description

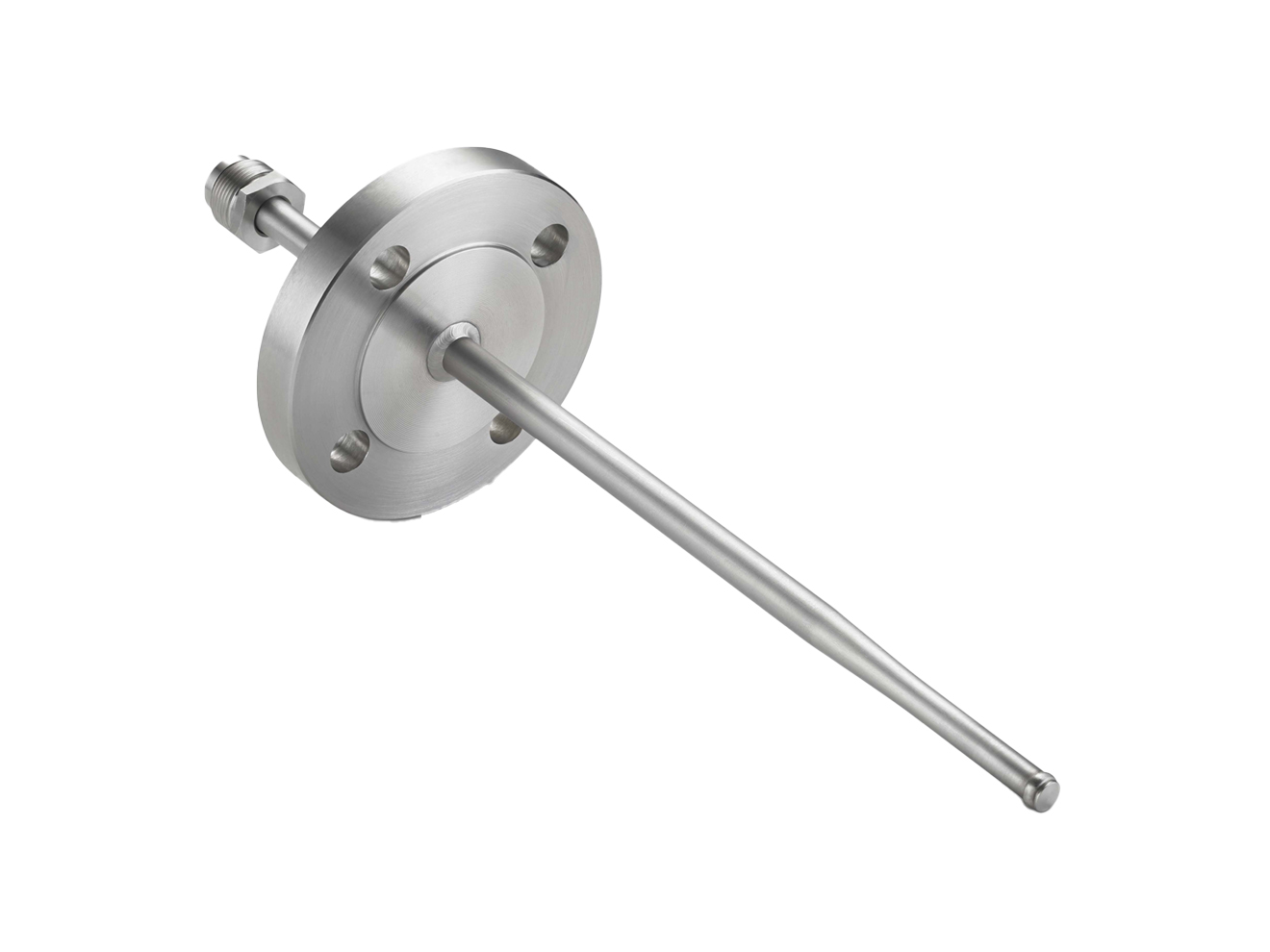

The Rosemount 114P Protection Tubes are manufactured from metal tubing and sealed with a welded end cap on the tip. The process seal is achieved either by a flange or a machined, threaded fitting welded along the tube. Typically, protection tubes have a uniform stem profile, however some industries have specific non-uniform stem profile requirements.
