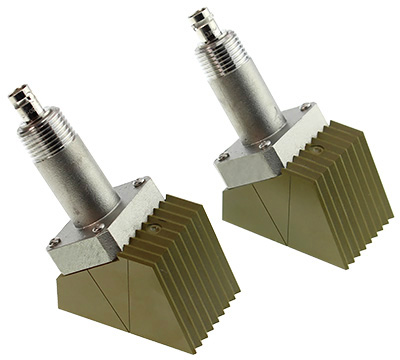

Panametrics C-PT High Temperature Ultrasonic Flow Transducers
Pair high-efficiency, plastic / metal shear wave transducers for pipes 2in & larger.
- By Panametrics
-
Some models in stock. View available part numbers.
Overview
Features
- -20 to 210°C (184°C maximum for ATEX version)
- Short durations up to 230°C acceptable
- Weather-proof, explosion-proof & flame-proof models available
- ATEX certified version available
This product is an accessory for the following products:
Description
The Panametrics C-PT ultrasonic flow transducer is used exclusively with the Panametrics line of ultrasonic flow meters. C-PT ultrasonic flow transducers measure the flow rate of sonically-conductive liquids through pipes with diameters between 2 inches (5cm) and over 300 inches (760 cm). These flow measurements are typically independent of the pipe material.
The C-PT ultrasonic flow transducer has a temperature range of -20 to 210°C (-4 to 410°F). Note: -20 to 184°C (-4 to 363.2 F) for ATEX HT certified version only.
Documents
In Stock
Part Number | Price | Available | |
---|---|---|---|
C-PT-10-H-B-00-1-0 |
$3,700.00 | 2 in stock |
Interested in Other Part Numbers?
Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 4-6 weeks". Click here to select options
