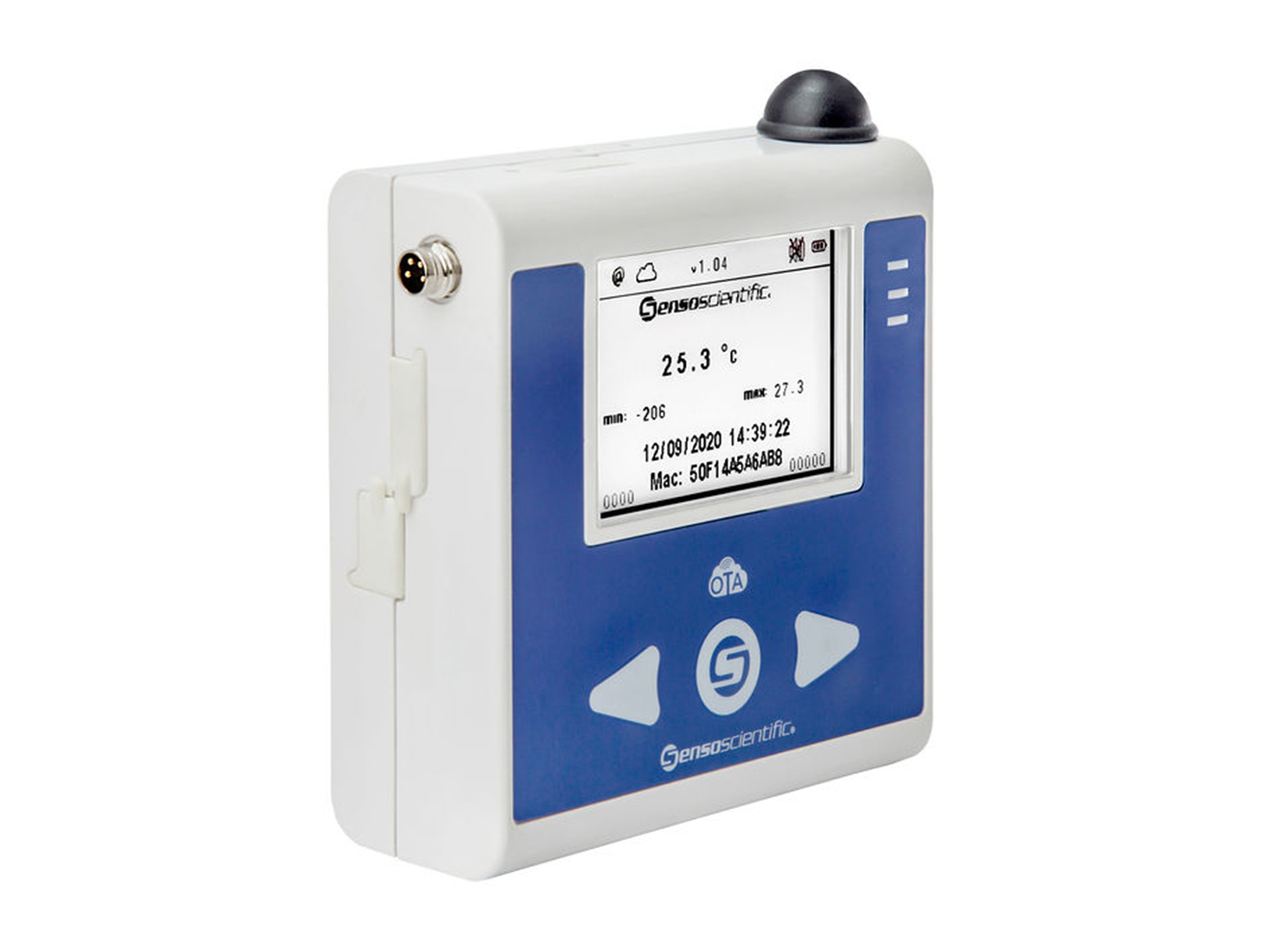

SensoScientific OTA Series RTD Data Logger

Single or dual band wireless RTD temperature transmitter with E-Ink display. -200 to 200°C measuring range. Cloud access enabled for unlimited memory, with portable battery operation.

Starting at $355.00

View Company Reviews
Manufactured
Includes
Availability
  • Call for availability
Product Manual Product Specs

Features

  • Measurement range: -200 to 200°C (-328 to 392°F)
  • Accuracy: ±0.5%
  • Operating temperature range: 0 to 75°C (32 to 167°F); Up to 95%RH
  • Unlimited Cloud Memory; On-transmitter Buffer Storage (4000 Readings)
  • Alarms: onboard Visual and Audible Alarms; 24/7 notifications through the Cloud
  • RF Frequency:
    • 2.4 to 2.497GHz
    • 2.4 and 5GHz available
  • Protocol: IEEE802.11 b/g/n Compatible 54Mbit/sec
  • Enterprise Security: PEAPv0 with EAP-MSCAPv2 (PEAP)
  • Housing:
    • ABS plastic enclosure, silicon rubber covers, open Ports
  • Mounting: zip tie mount with screw holster wall mount
  • Power Supply:
    • 4x 1.5V AA Lithium-ion batteries (optional, sold separately)
    • AC/DC power supply (UL Certified)
  • Battery Life: 1 Year
  • LDAP: single sign-on capability
  • Low power E-Ink display
  • FDA 21 CFR Part 11 Compliant

The SensoScientific OTA Series RTD Data Logger is a single or dual band wireless sensor module built to log, store, and securely transmit connected RTD probe measurements via any Wi-Fi enabled network.1 This unit has a measuring ranges of -200 to 200°C. Standard-issued with an AC/DC wall-plug power supply, the transmitter is portable when optional AA lithium-ion batteries are used.1 The OTA parameters for the dynamic alert system can easily be adjusted on-site or via SensoScientific's FIPS compliant Cloud platform. Modes of alert include SMS, text message, voice, pager, cell phone, fax, and e-mail. Information logged in PPB or PPM to the cloud-enabled database is time-stamped and cannot be altered by the on-site user. Each unit comes with a 3-year warranty.

1. Probes and lithium batteries sold separately (see Accessories tab).
2. Programming board included with each gateway

Industrial applications for the SensoScientific OTA Series RTD Data Logger:

  • Biopharmaceutical industries
  • Hospitals/healthcare monitoring
  • Laboratory monitoring
  • Food/Restaurants
SensoScientific PS12V1A 12V Power Supply & EU Adapter
SensoScientific PS12V1A 12V Power Supply & EU Adapter

$40.00
SensoScientific OTABL91 1.5V Battery Pack
SensoScientific OTABL91 1.5V Battery Pack

Set of 4 1.5V lithium-ion batteries with up to 20 year shelf life, compatible with SensoScientific OTA Series Data Logger.

$21.00
SensoScientific RTD Temperature Probe
SensoScientific RTD Temperature Probe

Measuring ranges from -200 to 200°C with waterproof flat-wire cable up to 50ft in length and M8 connector. Thermal buffer compatible.

Starting at $295.00
SensoScientific Ambient Temperature and Humidity Probe
SensoScientific Ambient Temperature and Humidity Probe

Stainless steel probe with -40 to 120°C & 0 to 100%RH measuring ranges with M8 connector. Dew point measurement configuration available.

Starting at $405.00
SensoScientific Cloud Service
SensoScientific Cloud Service

1 to 5 years of access to Microsoft Azure powered cloud platform for datalogging and analysis of SensoScientific product measurements. 15 to 1 minute sample rates available.

Starting at $70.00
