SensoScientific RTD Temperature Probe
Measuring ranges from -200 to 200°C with waterproof flat-wire cable up to 50ft in length and M8 connector. Thermal buffer compatible.
Overview
Features
- Temperature range(s):
- -C: -200°C to 80°C
- -L: -80°C to 50°C
- -F -40 to 70°C (ambient with 2in cable)
- -H: 20 to 200°C
- Accuracy: ±0.5°C
- Material: 504 Stainless Steel
- Waterproof flat-wire cable
- 2in to 50ft (15.24m) lengths available depending on configuration
- Dimensions:
- Height: 3.6in (91.5mm)
- Diameter: 0.28in (7mm)
- Calibration points:
- -C: -70 and -10°C
- -L: -50 and -10°C
- -F: -10 and 35°C
- -H: 35 and 50°C

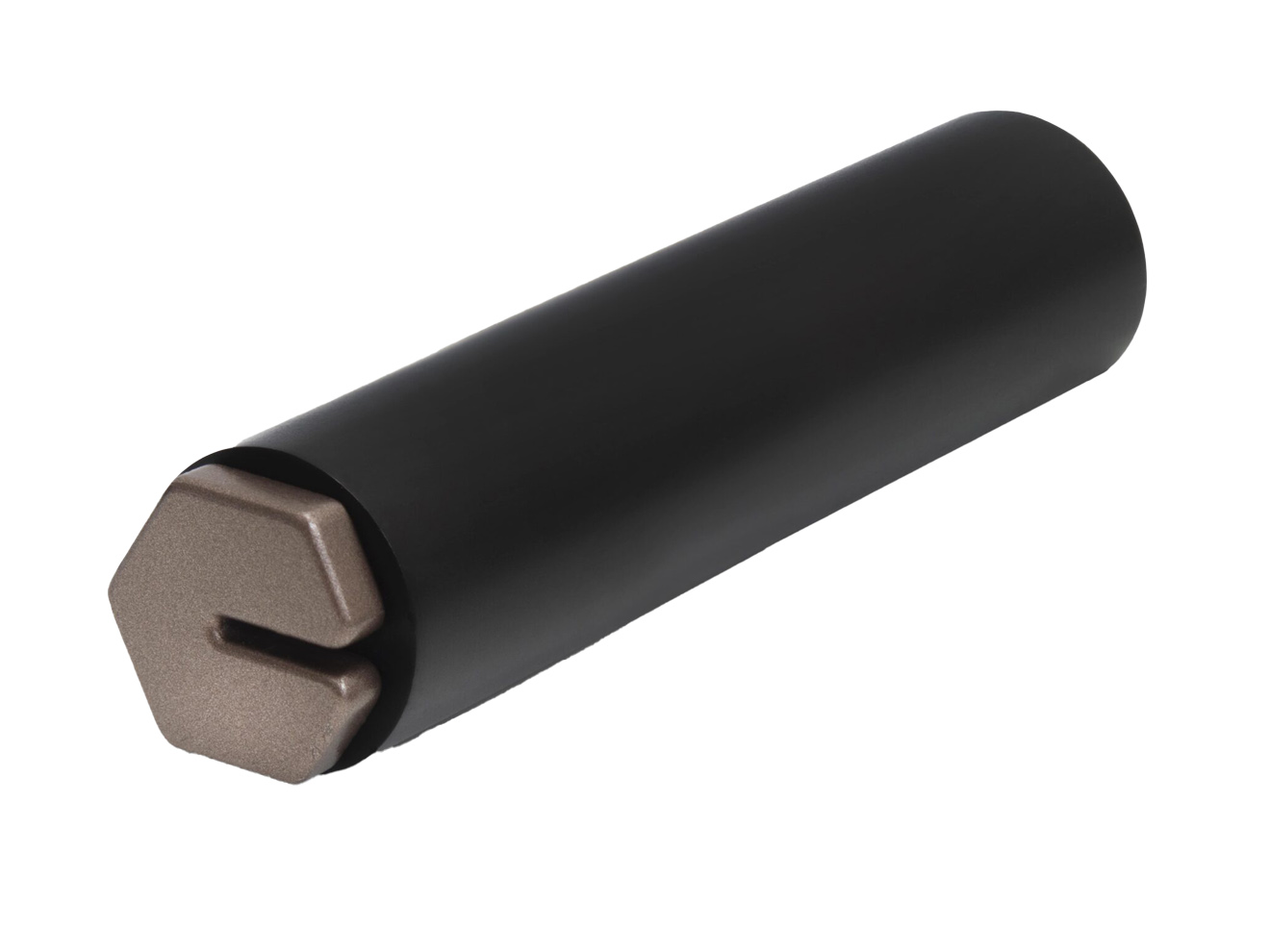

- Compatible with thermal buffer
- Certification(s): NIST traceable, A2LA (accredited)
- digital certificates accessible via SensoScientific Cloud services
Automatic calibration subscription costs to incur when ordering a probe with yearly or greater calibration frequency
What's in the Box
- RTD Temperature Probe
- Waterproof flat-wire cable (up to 50ft)
- M8 connector with metal fastener
This product is an accessory for the following products:
Description
The SensoScientific RTD Temperature Probe is constructed with 504 stainless steel, with waterproof cabling up to 50 feet in length for an efficient and adaptable installation process. An industrial grade M8 connector and metal fastener easily integrates the probe with any SensoScientific device. When connected with WIFI-enabled nodes, measurements can be transmitted to the SensoScientific Cloud platform for real-time analysis. This unit is compatible with both solid and liquid thermal buffers, meeting required CDC standards. Each unit is NIST traceable, with optional A2LA accredited calibration from SensoScientific's laboratory. Digital certificates are accessible via Cloud services.
Documents
