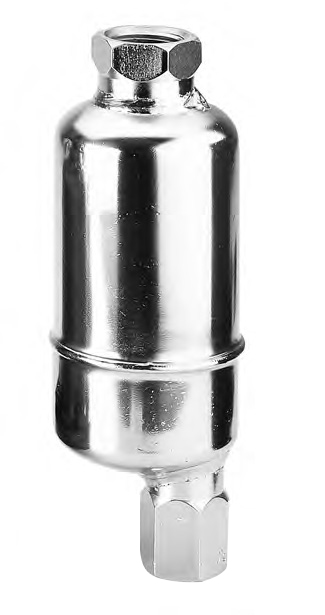

Armstrong International 11/22/13-LD Series Free Floating Lever Drain Trap

Stainless steel, free floating lever drain trap with sealed, tamperproof construction, and featuring elliptical floats and high lever for opening large orifices.

Features

  • 9,500 lb/hr maximum capacity
  • Maximum allowable pressure:
    • 11-LD: 500psig @ 100°F (35barg @ 38°C)
    • 22-LD: 600psig @ 100°F (41barg @ 38°C)
    • 13-LD: 570psig @ 100°F (39barg @ 38°C)
  • 304-L stainless steel body material
  • Screwed, socketweld, flanged connection type
  • Connection sizes:
    • 11-LD: 3/4" and 1/2"
    • 22-LD: 3/4"
    • 13-LD: 1"

Armstrong International 11/22/13-LD Series free floating lever drain trap uses the same bodies, caps, lever mechanisms, valves, and seats as the Armstrong inverted bucket steam traps that have been proved in years of service. Elliptical floats and high leverage make it possible to open large orifices to provide adequate capacity for drain trap size and weight.

The hemispherical valve, seat, and leverage of the 11-LD, 22-LD and 13-LD stainless steel traps are identical in design, materials, and workmanship to those for saturated steam service up to 570 psig (39 barg), with the exception of the addition of a guidepost to assure a positive, leak-tight valve closing under all conditions.

Part Number Model Connection Size and Type Outlet Connection Size Maximum Operating Pressure Orifice Price Available
C3510-10
Show Full Configuration
11-LD (1/2in or 3/4in ports, no side connection)
3/4in NPT
1/2in
176 psi
1/8
 $529.00 6 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 2-3 weeks". Click here to select options
