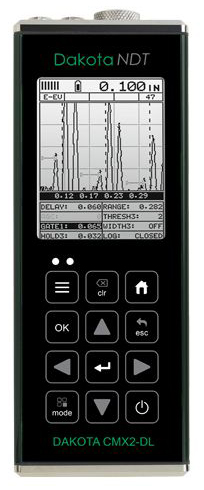

Dakota NDT CMX Series Corrosion Thickness Gauge
Measures material and coating thickness simultaneously, detects pits & flaws in a single mode.
Overview
Features
- Measurement modes:
- Pulse-Echo (P-E): pit and flaw, 0.025 to 48in (0.63 to 1219.2mm)
- Pulse-Echo Coating (PECT): material, coating, pit, and flaw, 0.025 to 48in (0.63 to 1219.2mm)
- Pulse-Echo Temp Comp (PETP): pit and flaw, auto temperature compensation, 0.025 to 48in (0.63 to 1219.2mm)
- Echo-Echo (E-E): thru paint and coatings, 0.100 to 6in (2.54 to 152.4mm)
- Echo-Echo Verify (E-EV): thru paint and coatings, 0.100 to 1.0in (2.54 to 25.4mm)
- Coating Only (CT): coating thickness, 0.0005 to 0.100in (0.0127 to 2.54mm)
- Resolution: ±0.001in (0.01mm)
- Velocity range: 0.0122 to 0.7300 inches/μs (309.88 to 18542 meters/sec)
- Single and two-point calibration option for material and coating, or selection of basic material types
- Pulser: dual square wave pulsers
- Receiver: dual receivers, manual or AGC gain control with 110dB range (limited)
- Timing: precision TCXO timing with single shot 100MHz 8-bit, ultra low power digitizer
- Pulse repetition frequency: 250Hz
- Adjustable gain:
- CMX1 and CMX1-DL: 40 to 53dB
- CMX2-DL and CMX3-DL: 110dB range
- 4Gb internal memory
- USB-C port
- Factory calibration traceable to NIST and MILSTD-45662A
- 2-year limited warranty
What's in the Box
- Selectable transducer
- Couplant
- Manual
- Plastic carrying case
- Certificate of Calibration
- AA batteries
- PC software and data transfer cable included with data logging gauges
Description
The Dakota NDT CMX Series corrosion thickness gauge measures coatings and material thickness simultaneously while maintaining the ability to locate pits, flaws and defects in the material. The CMX gauge offers a range of measurement modes including Pulse-Echo, Echo-Echo, Pulse-Echo Temp, Comp Mode (PETP), Coating Only Mode (CT), and Pulse-Echo Coating Mode (PECT). The gauge also allows the user to set limits for pass/fail indication on an individual reading or for each batch with audible and visual warnings. The gauge features manual or automatic gain control (AGC) with adjustable 110dB range, gate control, threshold adjustment, and differential and minimal thickness alarm modes.

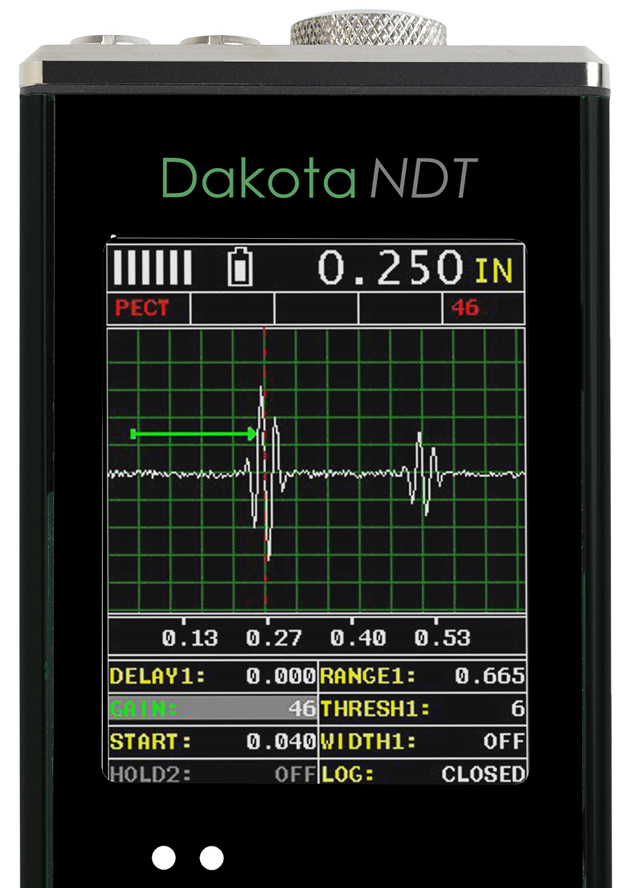

The CMX gauge has a choice of display modes including Readings, B-Scan, B-Scan combined with readings, and Scan bar. The CMX2-DL and CMX3-DL models also include the A-Scan display mode. The gauge’s high speed scan mode provides 250 readings per second on the CMX1 and CMX1-DL models, and 50 readings per second on the CMX2-DL and CMX3-DL models. The CMX3-DL also features A-Scan portrait and landscape views.
The CMX gauge offers 64 user-defined setups, transferable to and from a PC archive. Up to 4GB of readings can be saved into the gauge memory as each measurement is taken, which can be downloaded later into an inspection application or into DakMaster software for further analysis and reporting.
Documents
Spec Sheets
- Dakota NDT CMX1 / CMX1-DL Corrosion Thickness Gauge Datasheet (446 KB)
- Dakota NDT CMX2-DL / CMX3-DL Corrosion Thickness Gauge Datasheet (435 KB)
Manuals
- Dakota NDT CMX1 Corrosion Thickness Gauge Manual (978 KB)
- Dakota NDT CMX1-DL Corrosion Thickness Gauge Manual (1.2 MB)
- Dakota NDT CMX2-DL Corrosion Thickness Gauge Manual (1.2 MB)
- Dakota NDT CMX3-DL Corrosion Thickness Gauge Manual (1.7 MB)
