Starting at $225.75
  • Usually ships in 2-3 weeks

Overview

Features

  • Direct process contact (no thermowell)
  • Mineral insulated probe insert
  • Operating temperature range(s):
    • PT100 TF StrongSens: -50 to 500°C (-58 to 932°F)
    • PT100 QuickSensTF: -50 to 200°C (-58 to 392°F)
    • PT100 WW: -200 to 600°C (-328 to 1112°F)
    • PT100 TF: -50 to 400°C (-58 to 752°F)
    • Typ K: 1100°C max (2012°F)
    • Typ J: 800°C max (1472°F)
    • Typ N: max. 1100°C max (2012°F)
  • Pressure range: up to 75bar (1088psi)
  • Process connection(s):
    • Thread: G 1/4in, G 1/2in, NPT 1/2in, NPT 3/4in, M18x1.5, M20x1.5
    • Cap-nut: G 1/2in, G 3/4in
    • Compression fitting, also spring load: NPT 1/2in, G 1/2in
    • Weld-in adapter cylindrical or spherical
  • Accuracy:
    • Class AA acc. to IEC 60751
    • Class A acc. to IEC 60751
    • Class B acc. to IEC 60751
    • Class special or standard acc. to ASTM E230
    • Class 1 or 2 acc. to IEC 60584-2
  • Surface roughness Ra: < 1.6 μm (63.00 μin)
  • Response time: t90 starting at < 1.5s (QuickSens)
  • Vibration resistance: 60g max
  • Immersion length: 4500mm max
  • Protection tube material(s):
    • 316L, Alloy 600, Pyrosil
  • Communication protocol(s):
    • Analog 4 to 20mA, HART, PROFIBUS PA, FOUNDATION Fieldbus, PROFINET, IO-Link
  • Certification(s):
    • IP68, ATEX, ATEX IECEx, NEPSI, IECEx, EAC Ex, CSA C/US, INMETRO, SIL

Description

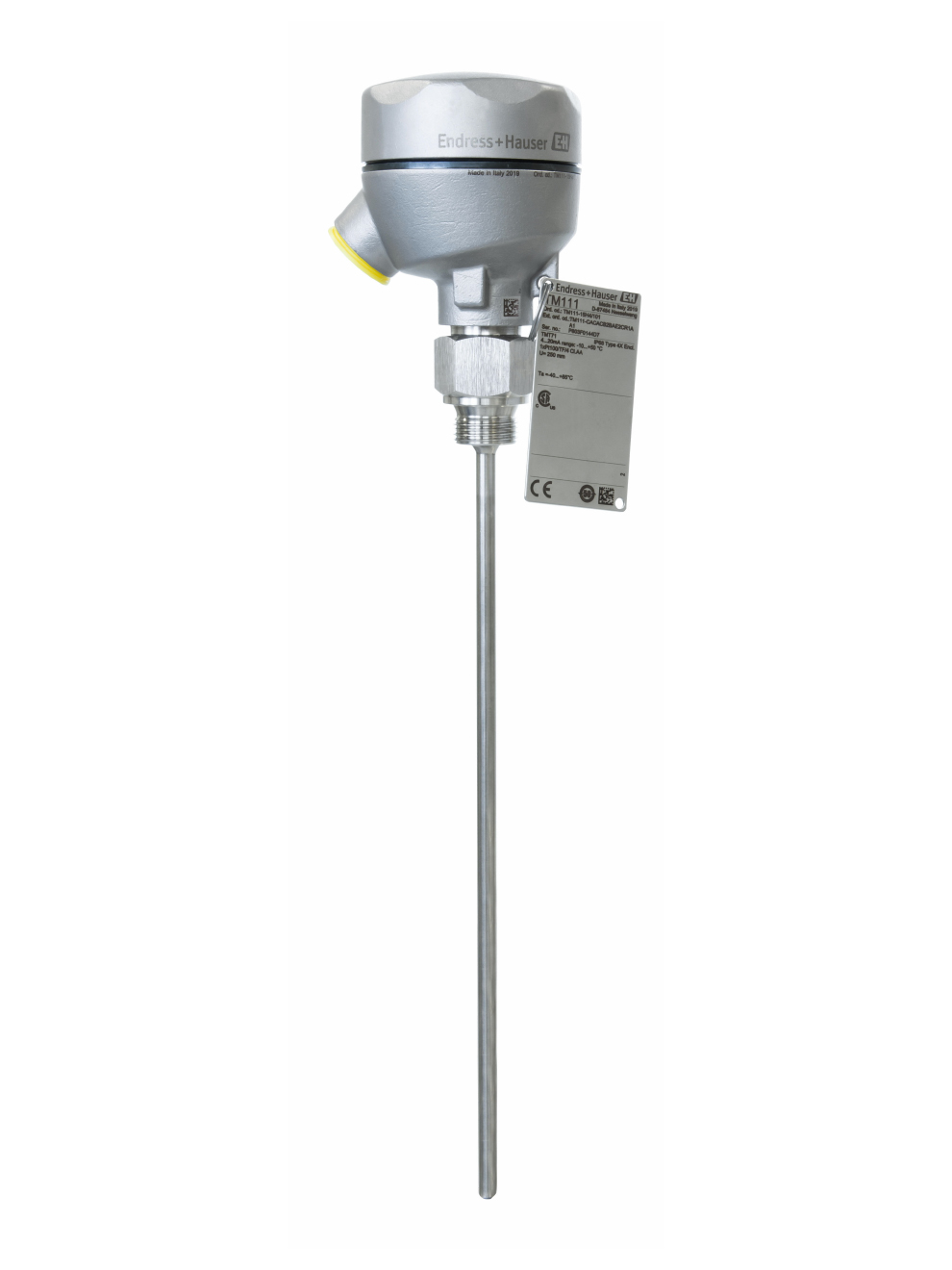

The E+H iTHERM ModuLine TM111 Temperature Sensor is an explosion proof design with either RTD or thermocouple probe insert, compatible with a wide range of industrial applications in hazardous environments. The unit can be outfitted with an optional head transmitter, configurable with all standard-practice communication protocols including analog 4 to 20mA, HART, Bluetooth, PROFIBUS, and Fieldbus. A second mounted transmitter is offered to further expand use cases. ITHERM StrongSens or QuickSens technology comes with certain configurations of the TM111, providing vibration protection up to 60g, or a rapid response time of less than 1.5s, respectively. The measuring range is expansive, starting as low as -200°C (–328°F) and going as high as 1100°C (2012°F) depending on the configuration. The process pressure for the TM111 is also option-dependent, ranging up to 75bar (1088psi). Various installation locales and applications are suitable thanks to the numerous process connections available including threaded, cap-nut, compression fittings as well as spherical or cylindrical weld-in adapters.
