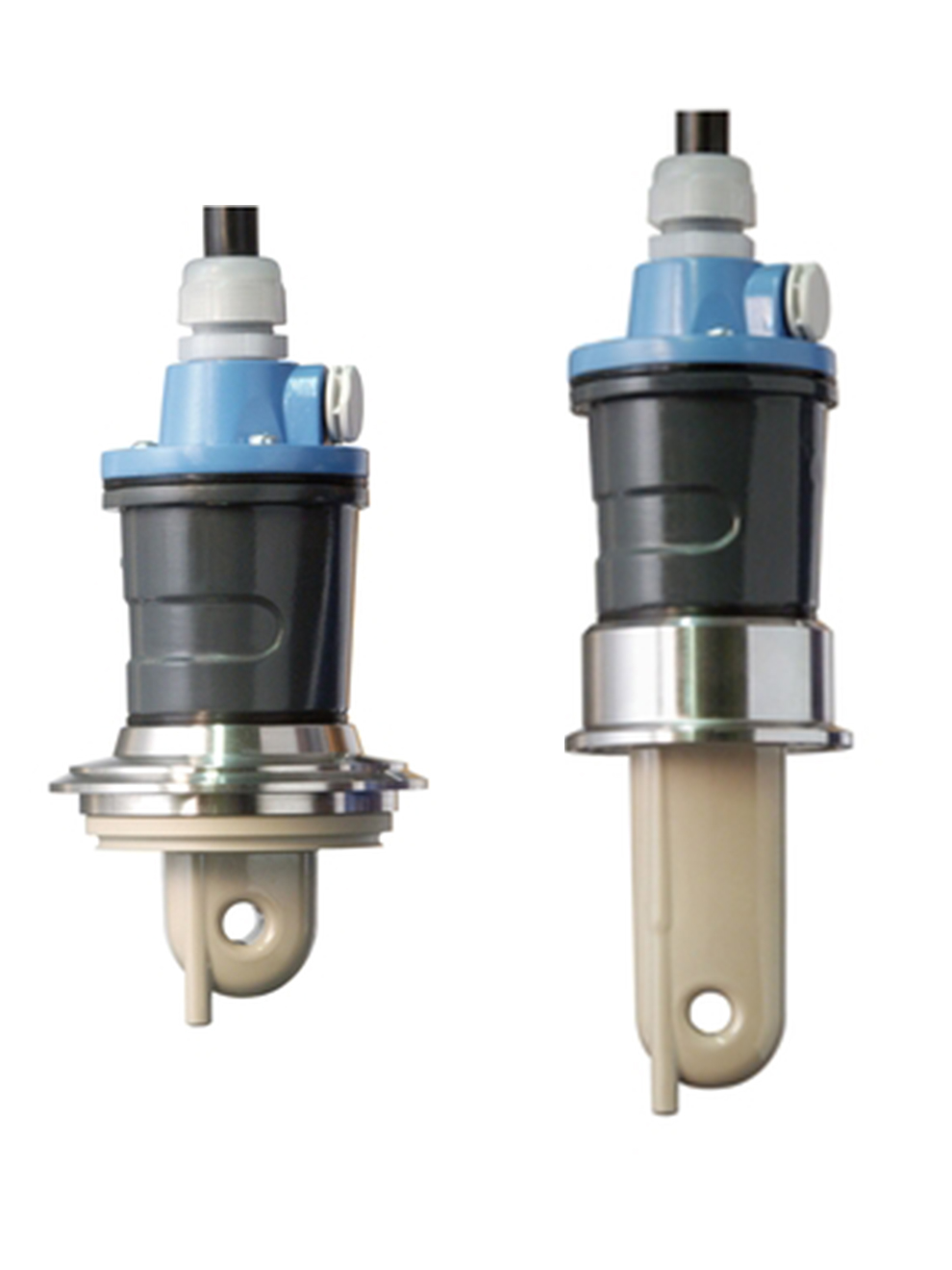

E+H Indumax CLS54 Analog Conductivity Sensor

Toroidal conductivity sensor for use with hygienic applications including food, beverage and life sciences.

Starting at $2,086.04

View Company Reviews
Manufactured
Includes
Availability
  • Usually ships in 3-5 weeks
Product Manual Product Specs

Features

  • Measuring principle:
    • Inductive
  • Measurement range: 100 µS/cm - 2000 mS/cm Cell constant k: 6,3 1/cm
  • Process pressure:
    • 12bar absolute at 20°C (174psi at 68°F)
    • 8bar absolute at 125°C (116psi at 257°F)
  • Process temperature:
    • -20 to 135°C (-4 to 275°F) at 3.5bar/50psi absolute
  • Process connection(s):
    • Dairy pipe, aseptic fitting, ISO2852 Clamp, SMS 2in, Varivent N DN 40-125, Neumo Biocontrol D50
  • Temperature sensor: Pt1000 (class A)
  • Temperature response time: T90 < 27s
  • Material(s):
    • In contact with medium: Virgin PEEK
    • Surface roughness: Ra<0.9µm
  • IP68/NEMA6P
  • ATEX II G EEx ia IIc T3/T4/T6
  • FM/CSA IS NI CL.I,II,III,Div.1&2 group A-G
  • Additional certifications: FDA, EHEDG, 3-A, USP class VI

The E+H Indumax CLS54 Analog Conductivity Sensor utilizes toroidal conductivity to monitor phase separation, CIP processes, leakage monitoring and concentration control in various food and beverage related industries. The CLS54 has a virgin PEEK body that is jointless and without crevices, a biocompatible design compliant with USP Class VI and certified by EHEDG and 3-A. The numerous process connections available with the CLS54 allow for highly adaptable installations. The sensor is unaffected by electrode contamination and polarization due to the inductive measuring principle. The sensor is suitable for cleaning-in-place (CIP) and sterilization-in-place (SIP).

E+H Indumax CLS54 Analog Conductivity Sensor applications:

  • Food/Beverage
  • Pharmaceutical industry
  • Biotechnology
  • Dairies
  • Breweries
