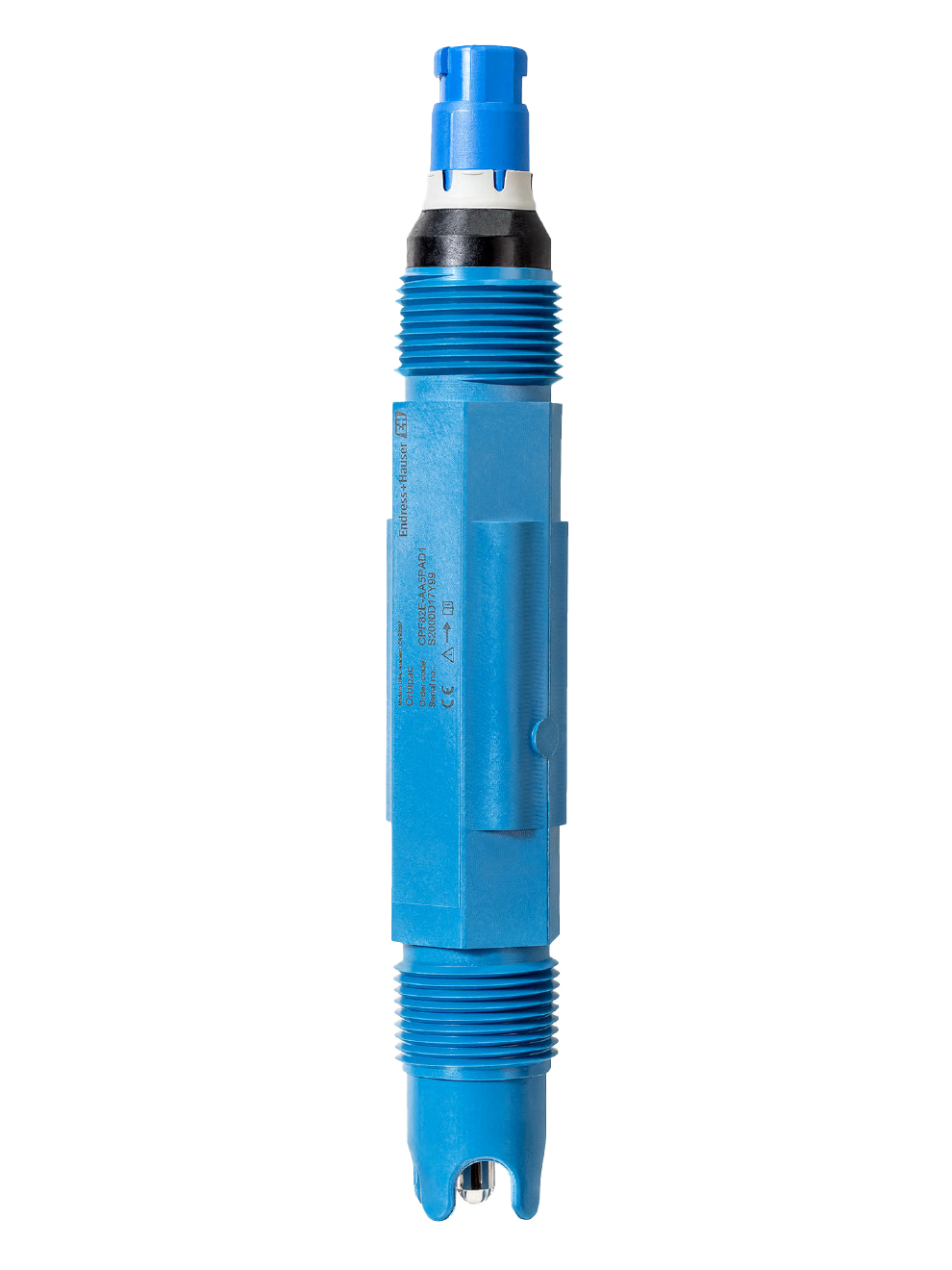

E+H Memosens CPF82E Digital ORP Sensor
Memosens 2.0 ORP sensor with a gel-compact electrode and double chamber reference system for use in wastewater treatment, mineral and metal industry applications.
Overview
Features
- Measuring principle:
- ORP / Redox
- potassium nitrate bridge electrolyte and PTFE diaphragm
- Measurement range: -1500 to 1500mV
- Process temperature(s): 32 to 170°F (0 to 80°C)
- Process pressure: 15 to 145psi at 176°F (1 to 10bar abs at 80°C)
- Process connection: 3/4in NPT
- Temperature sensor: NTC 30K
- Material(s):
- Housing: PPS
- Junction: PTFE
- ORP electrode: platinum ring
- Double chamber reference system: KNO3 and KCl/AgCl
- Resistant to electrode ion poisoning
- Connection: Memosens plug
- Dimensions:
- Diameter: 22mm
- Length: 150mm
- IP68
- Optional Ex certification: FM IS NI Cl. I Div.1&2, Groups A-D
Description
The E+H Memosens CPF82E Digital ORP Sensor features a gel-compact electrode with a double chamber reference system, which makes it a durable solution for accurate ORP monitoring in harsh application environments. Suitable for flow and immersion installation, with an integrated assembly to minimize required space. The CPF82E is easy to operate with Memosens 2.0 technology, with monitoring of inlet/outlet, flotation, leaching and neutralization. Extended storage of calibration and process allows for more accurate trend identification and expanded predictive maintenance, with secure digital transfer of historical data. The double junction feature better protects against electrode poisoning ions such as S2- or CN-, and a robust polymer housing reduces risk of mechanical damage. These features combined with the non-contact, inductive signal transmission method of the CPF82E ensures maximum process safety.
E+H Memosens CPF82E Digital ORP Sensor applications:
- Mining operations
- Industrial water
- Wastewater treatment
