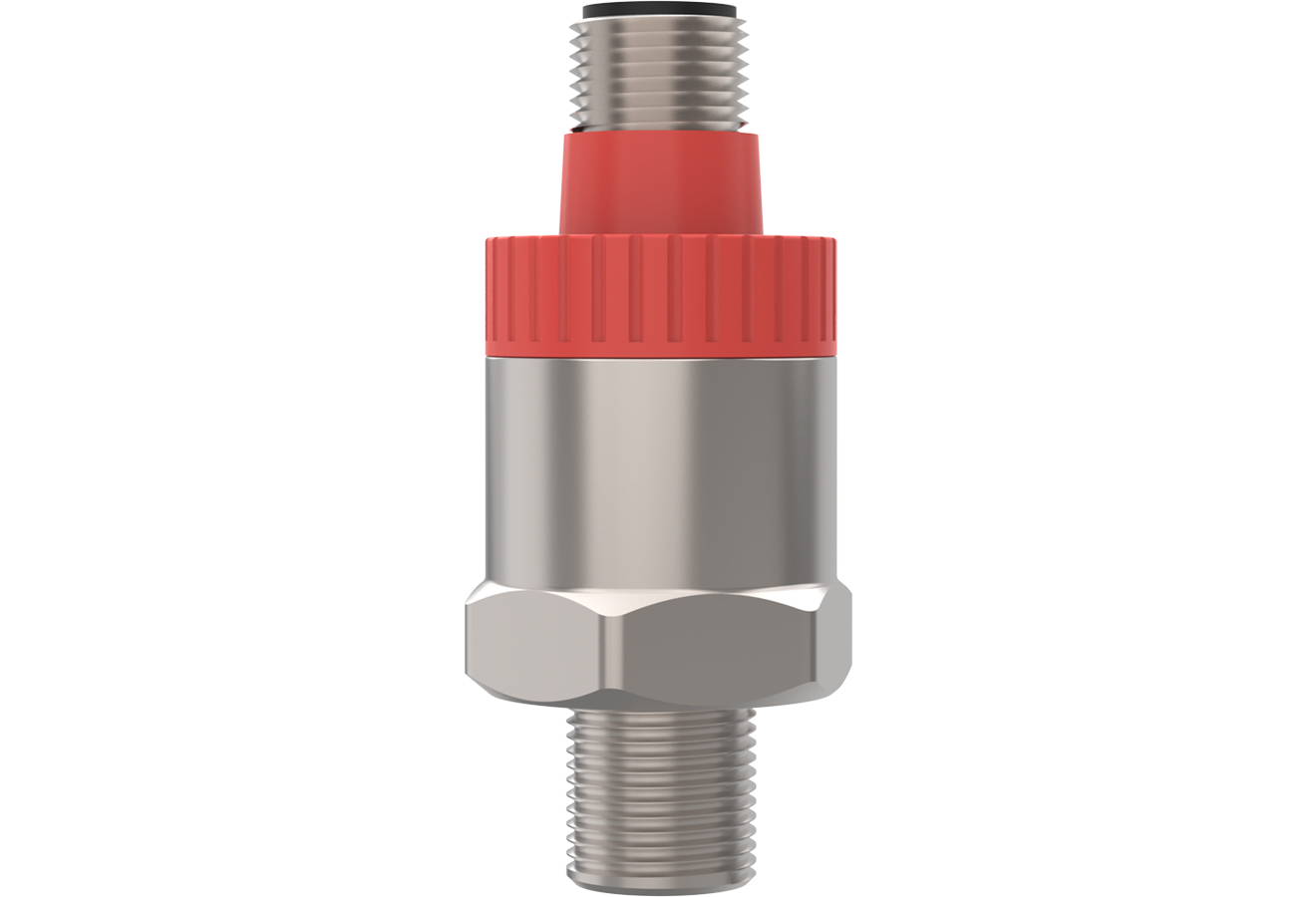

ICON LevelPro LP50 Pressure Transmitter
Pressure or level transmitter for corrosive process applications. Vertical or horizontal mount.
Overview
Features
- PP PVDF, or 316SS body
- 0 to 30, 0 to 50, 0 to 100 and 0 to 150 psi pressure ranges available
- IO-Link Connectivity
- 4-20mA output, 2 wire loop powered
- SS: 1/4” MNPT End connection
- PP and PVDF: 1 ⁄2” FNPT End Connection
- 0.5% F.S. accuracy
- Ceramic or stainless steel sensing diaphragm
- Excellent chemical resistance
- No programming required
- IO Link option
- Contact Instrumart for custom ranges
Description
The ICON LevelPro LP50 Pressure Transmitter is designed to measure Pressure or Level within industry’s most demanding corrosive process applications. When measuring pressure It can be mounted vertically or horizontally, and can easily be installed into a threaded process pipe tee fitting.
The LP50 implements a state of the art ceramic measuring principle that changes the physical pressure which equates to no more than a few microns into a linear electronic signal that can be measured. This minimal deformation equates to negligible material strain of the ceramic electronic pressure-sensing diaphragm resulting in high resistance to alternating loads and long-term durability. Exactly what is required for tough industrial applications.
Applications for the LP50 include:
- Chemicals (acids & bases)
- Tank level
- Industrial process piping
- Vapor pressure
- Leak detection equipment
