Overview

Features

  • Corrosion resistant
  • Hermetic design
  • 100 psi pressure rating
  • ESD, EMI/RFI and reverse wiring protection
  • 16 ft Integral cable
  • Dynamic vibration (IEPE)
  • 100 mV/g sensitivity
  • ±5% sensitivity tolerance
  • 0.5Hz to 10,000 Hz frequency response ±3dB
  • 22 kHz resonance frequency
  • -50 to 120°C temperature range

Description

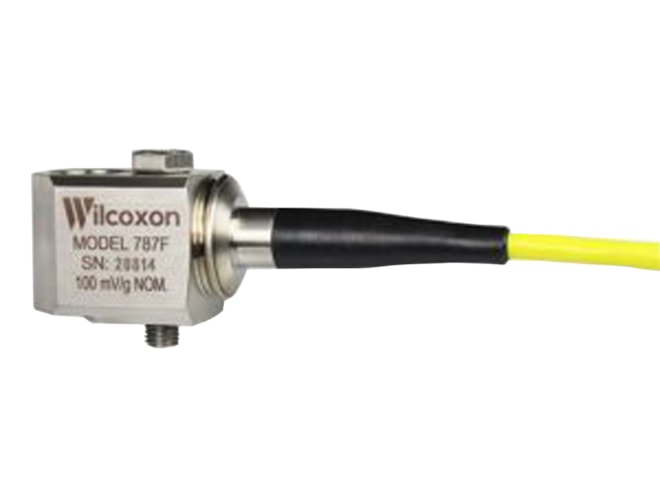

The Wilcoxon general purpose accelerometer is an industrial accelerometer sensor built for general purpose use. It has a 100 mV/g sensitivity, ±5% sensitivity tolerance and is low profile with side exit 16' J9T2A Teflon jacketed integral cable. The 787F has a 100 psi pressure rating and is case isolated.
