FLIR Ex Pro-Series Infrared Camera
19,200 to 76,800 pixel IR resolution, -4 to 1,002°F, <0.011 to <0.07 mK sensitivity.
Overview
Features
- <60 to <40 mK NETD at 86°F
- 3.7 to 1.8 mrad spatial resolution (IFOV)
- 33 x 25° field of view (FOV)
- Focus free
- 9Hz image frequency
- 5 MP digital camera
- 1.18ft minimum focus distance
- 7.5 to 13μm spectral range
- Accuracy of ±3.6°F or ±2% of reading, for 50 to 95°F ambient temperatures and >32°F object temperature
- IR image enhanced with visible camera detail
- Instant upload to FLIR Ignite cloud storage over Wi-Fi
- Compatible with full range of analysis and reporting software via FLIR Thermal Studio Suite
- Capacitive touchscreen with access to onscreen menus, features, and keyboard
- Text annotation on image using onscreen keyboard
- Thumbnail gallery with custom folder structure
Description

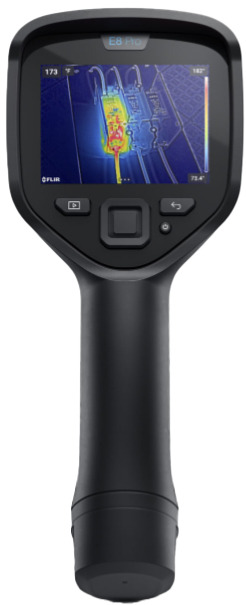

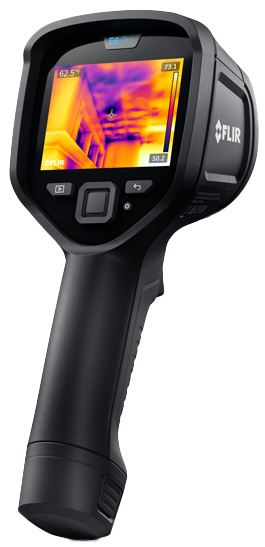

The FLIR Ex Pro-Series Infrared Camera is a point-and-shoot handheld thermal camera that assists in applications such as building surveys, HVAC, automotive, and general electrical and mechanical inspections. Pixel options up to 76,800 allow the user to quickly locate and diagnose problems, with vibrant thermal imagery supported by FLIR-patented MSX® (Multi-Spectral Dynamic Imaging) enhancement.
The camera features a 3.5in, 640 x 480 touchscreen, and photos can be edited and organized, detailed notes added, and files uploaded directly from the camera to the FLIR Ignite cloud for convenient access from any device. These images can be shared with clients, and quick reports can be created directly in FLIR Ignite, or the user can create advanced reports in FLIR Thermal Studio.
