Kobold MAN-SC/LC Digital Pressure Gauge

Name: Kobold MAN-SC/LC Digital Pressure Gauge
Brand: Kobold
Price: 486.0 USD
Availability: BackOrder

Pressure Gauge provides accurate pressure measurement from vacuum to 23,200 psi with a 5-digit LCD display, configurable outputs, and optional IO-Link communication.

Starting at $486.00

View Company Reviews

Manufactured

By Kobold

Includes

FREE Ground Shipping on orders of $2,000 or more
FREE Lifetime Tech Support

Availability

Usually ships in 2 weeks

Product Manual Product Specs

Features

Measures pressure from vacuum to 23,200 psi
5-digit LCD display
Accuracy: ±0.5% of span
Battery powered (MAN-SC) or 18 to 32 VDC (MAN-LC)
Configurable analog, frequency, and switch outputs (MAN-LC)
Optional IO-Link communication (MAN-LC)
Up to 2 Relays Possible (MAN-LC)
Peak memory and tare function
Rotatable display and housing
Stainless steel process connection
IP65-rated enclosure

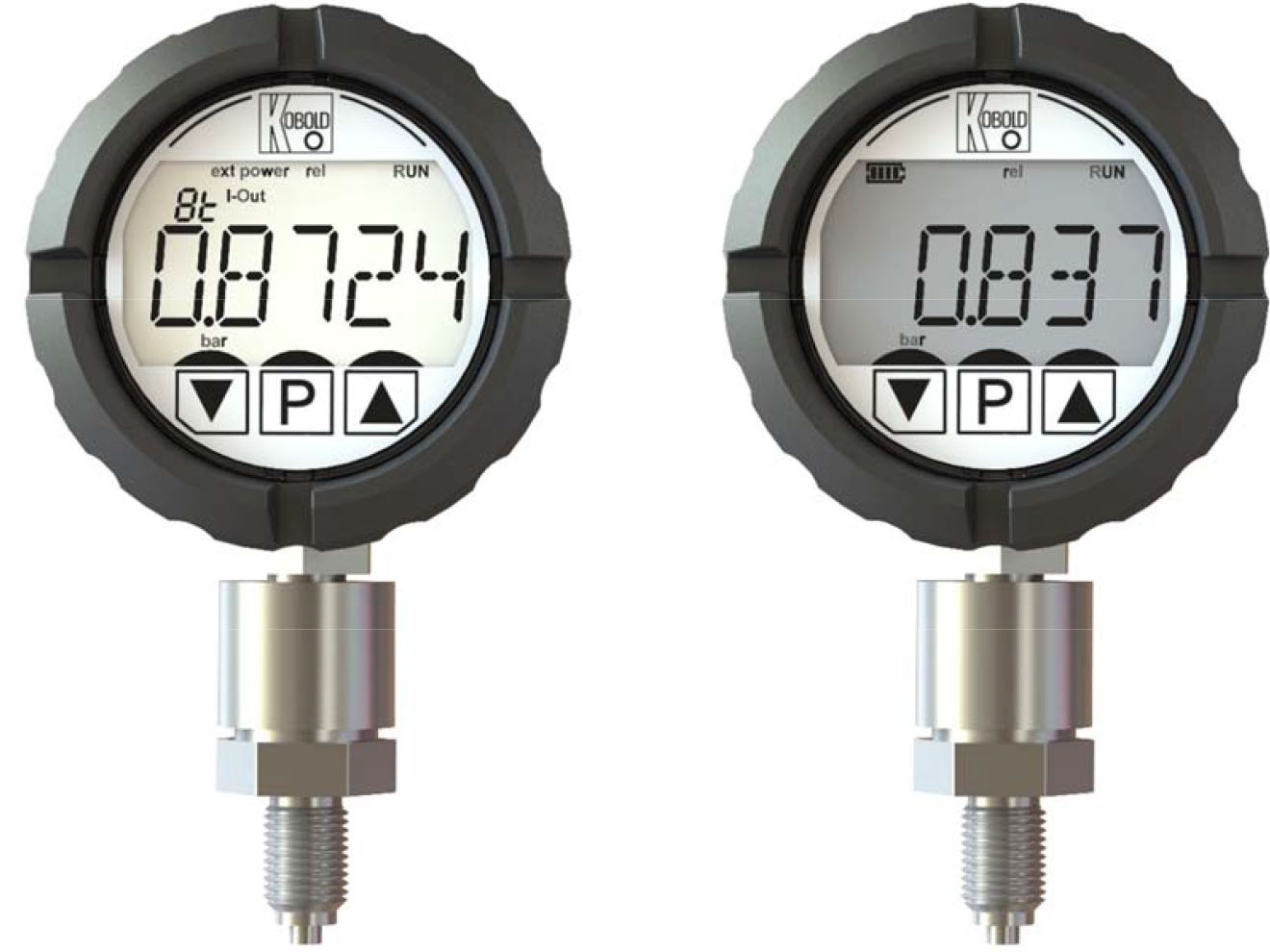

The KOBOLD MAN-SC/LC digital pressure gauge is designed for displaying, switching, and transmitting pressure dependent operating values in machines and installations. It measures pressure ranges from vacuum up to 23,200 psi and uses a ceramic or metal pressure sensor depending on the measuring range. The gauge features a 5-digit LCD display with capacitive touchpads, selectable measuring units, and rotatable electronics for flexible viewing orientation.

The MAN-SC version operates from a 9 V battery with programmable sleep modes, while the MAN-LC version uses an 18 to 32 VDC external power supply and provides configurable outputs. MAN-LC models support analog, frequency, and alarm outputs, optional IO-Link communication, and up to two potential free relay outputs. The gauge includes peak memory, tare adjustment, force measurement, and optional temperature measurement.
