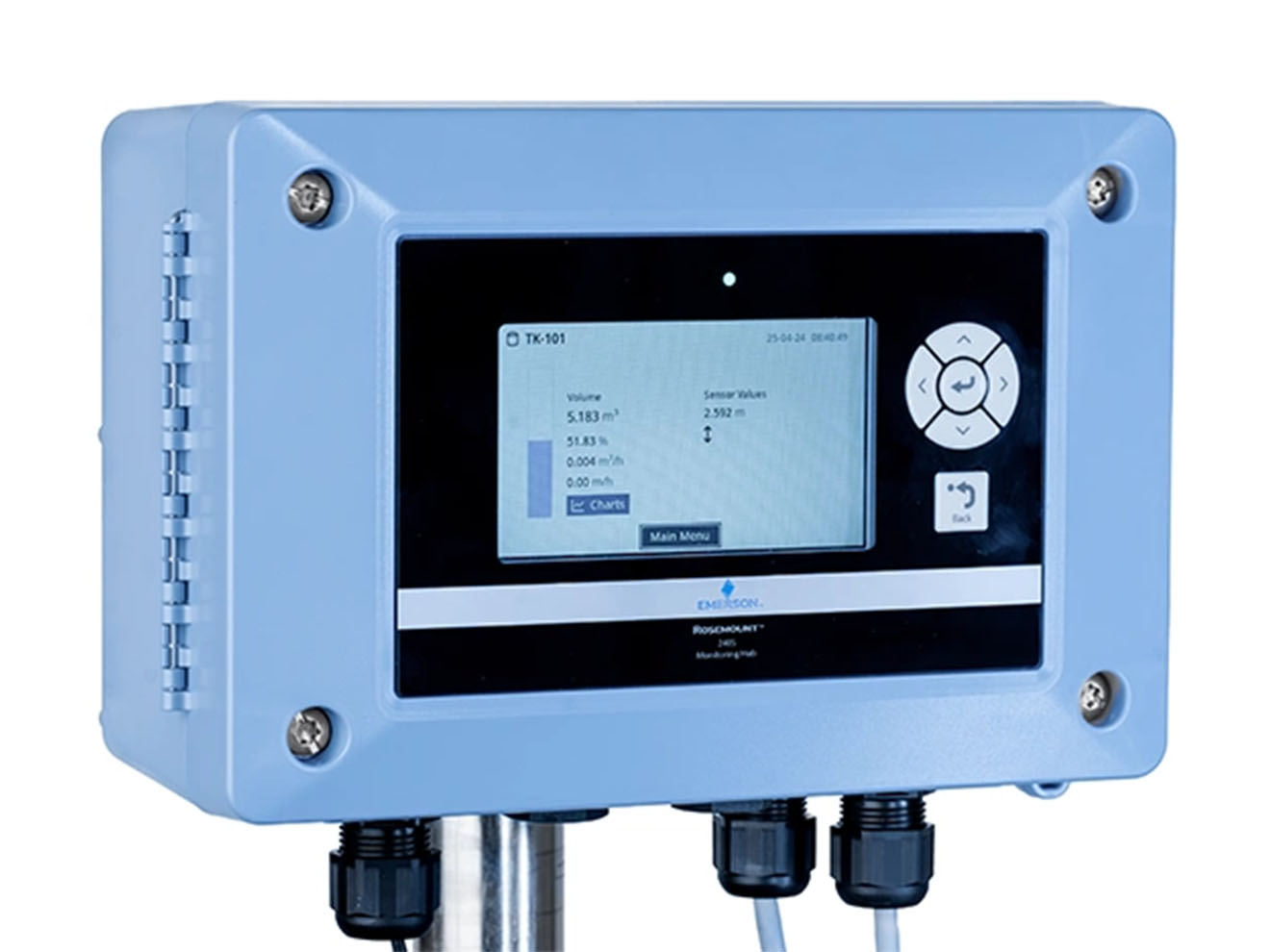

Rosemount 2405 Monitoring Hub

All in one tank inventory monitoring hub that combines data concentration, display, and communication functions with HART multidrop support for up to 8 measuring points.

Starting at $3,064.67
Effective September 1st, 2026 Rosemount has added a 4.9% surcharge for all of their products. The surcharge will appear as a separate line item on the order.

View Company Reviews
Manufactured
Includes
Availability
  • Call for availability
Product Manual Product Specs

Features

  • Interface Graphical: field display and integrated webserver
  • Number of Tanks: Up to 8
  • Communication: Modbus TCP/IP and HART IP
  • Input: 2 x Sensor Input Channels (4 HART instruments per channel), 4 x Digital Inputs
  • Digital inputs: 4 digital input channels
  • Output: 3 x Analog outputs, 6 x Relay outputs, 1 x Ethernet
  • Power Supply: 24 to 48 VDC, 100 to 240 VAC 50/60 Hz
  • Temperature range: -40 to 140°F
  • Enclosure rating: IP66/IP67 and Type 4X
  • Certifications: ATEX, IECEx, U.S., and Canadian approvals

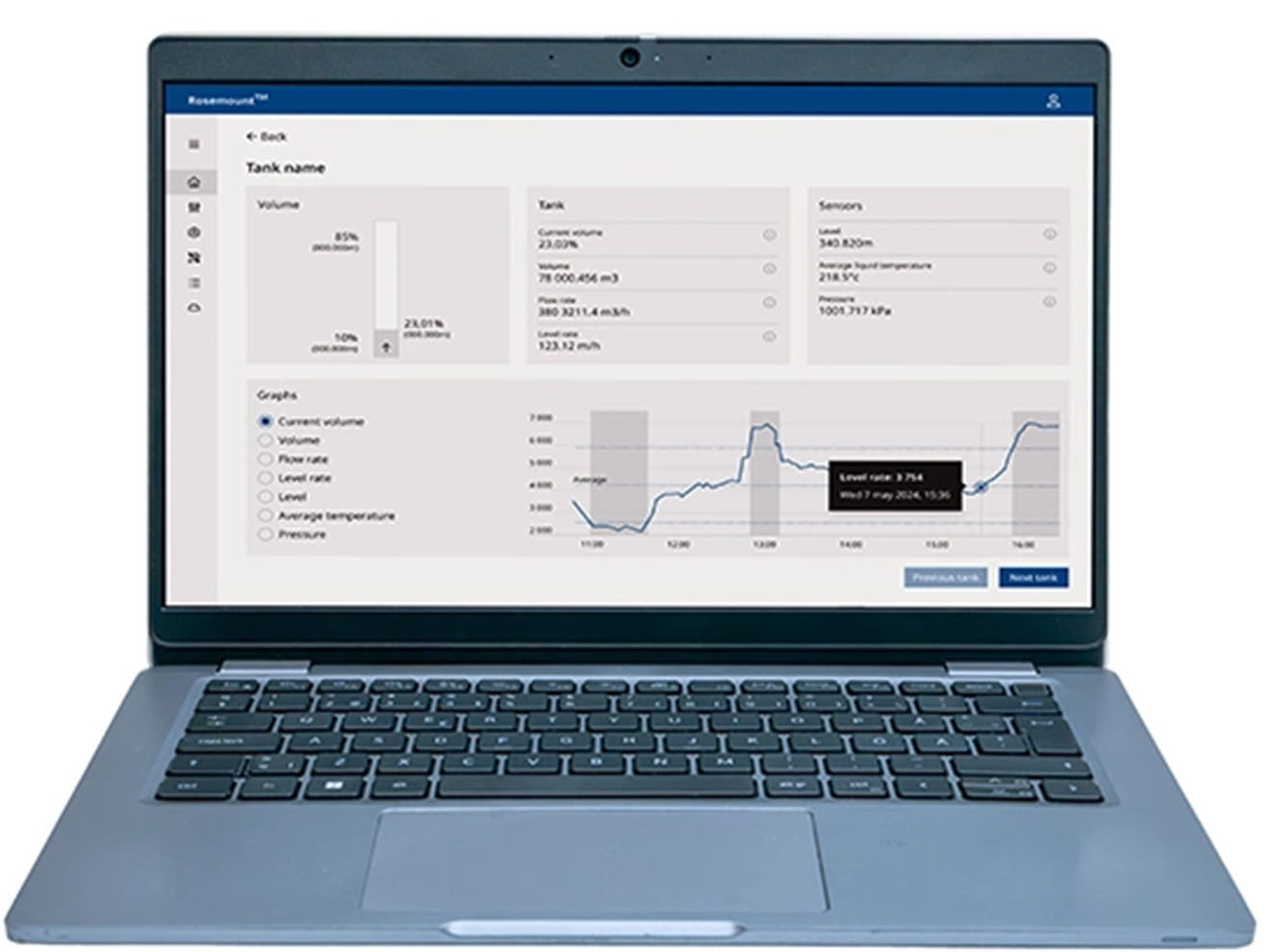

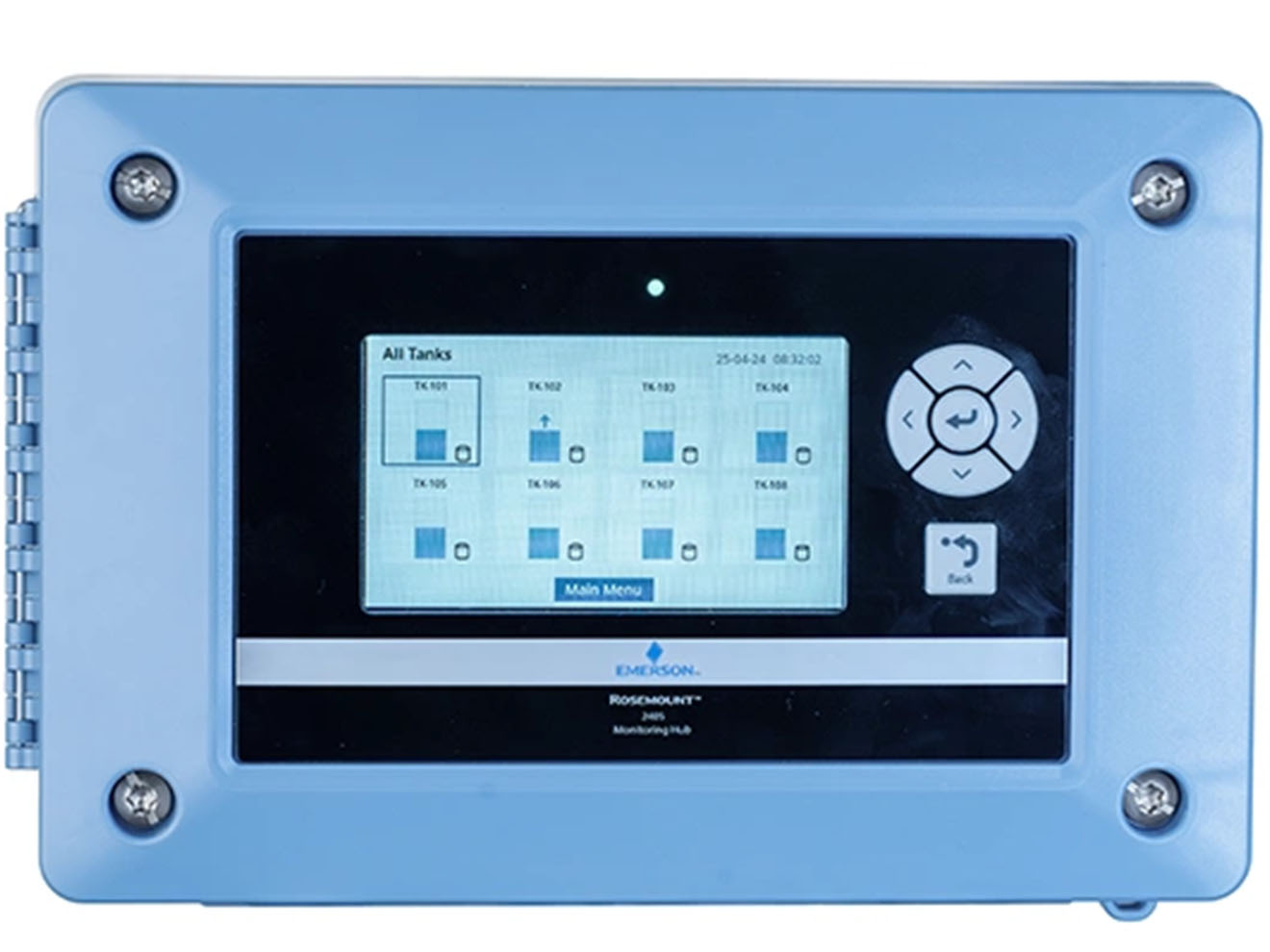

The Rosemount 2405 monitoring hub is an all in one device that combines a data concentrator, display, and communication unit for tank inventory monitoring systems. It collects and visualizes inventory data from up to eight HART measuring points and provides access through a local field display or integrated web interface.

Supporting HART multidrop communication, Modbus TCP/IP, and HART IP communication, the monitoring hub integrates with host systems for centralized inventory data access. Built in data logging enables historical analysis and replenishment planning, while the user interface simplifies system configuration and access to inventory information. The monitoring hub provides real-time monitoring and flexible communication options for tank inventory applications.
