Rotronic HygroFlex3A Series Advanced Humidity Transmitters

Transmitter offers high-accuracy measurement, configurable outputs, and RS485 communication options. Suitable for HVAC systems, office buildings, and storage areas.

Starting at $756.00

View Company Reviews
Manufactured
Includes
Availability
  • Usually ships in 2-3 business days

Features

  • Humidity measurement: 0 to 100% RH, ±1.2% RH accuracy at 73°F
  • Temperature measurement range:
    • -58 to 212°F (duct/cable)
    • -40 to 185°F (wall without display)
    • -14 to 140°F (wall with display)
  • Measurement interval:
    • 1 second with typically 5 second initialization time
  • Output signals:
    • 4 to 20mA, 0 to 20mA, 0 to 1V, 0 to 5V, 0 to 10V, RS485 (HF3A-D)
  • Output resolution: >15-bit, freely scalable analog outputs
  • Power supply: 10 to 28VDC (2-wire), 18 to 36VDC (3/4-wire)
  • Interface: NFC and USB (HygroSoft compatible)
  • Psychrometric calculations: supported across all models
  • Housing: IP65 PC-ABS, wall, duct, cable versions
  • Sensor: ROTRONIC Hygromer HT-1 and Pt100 Class B

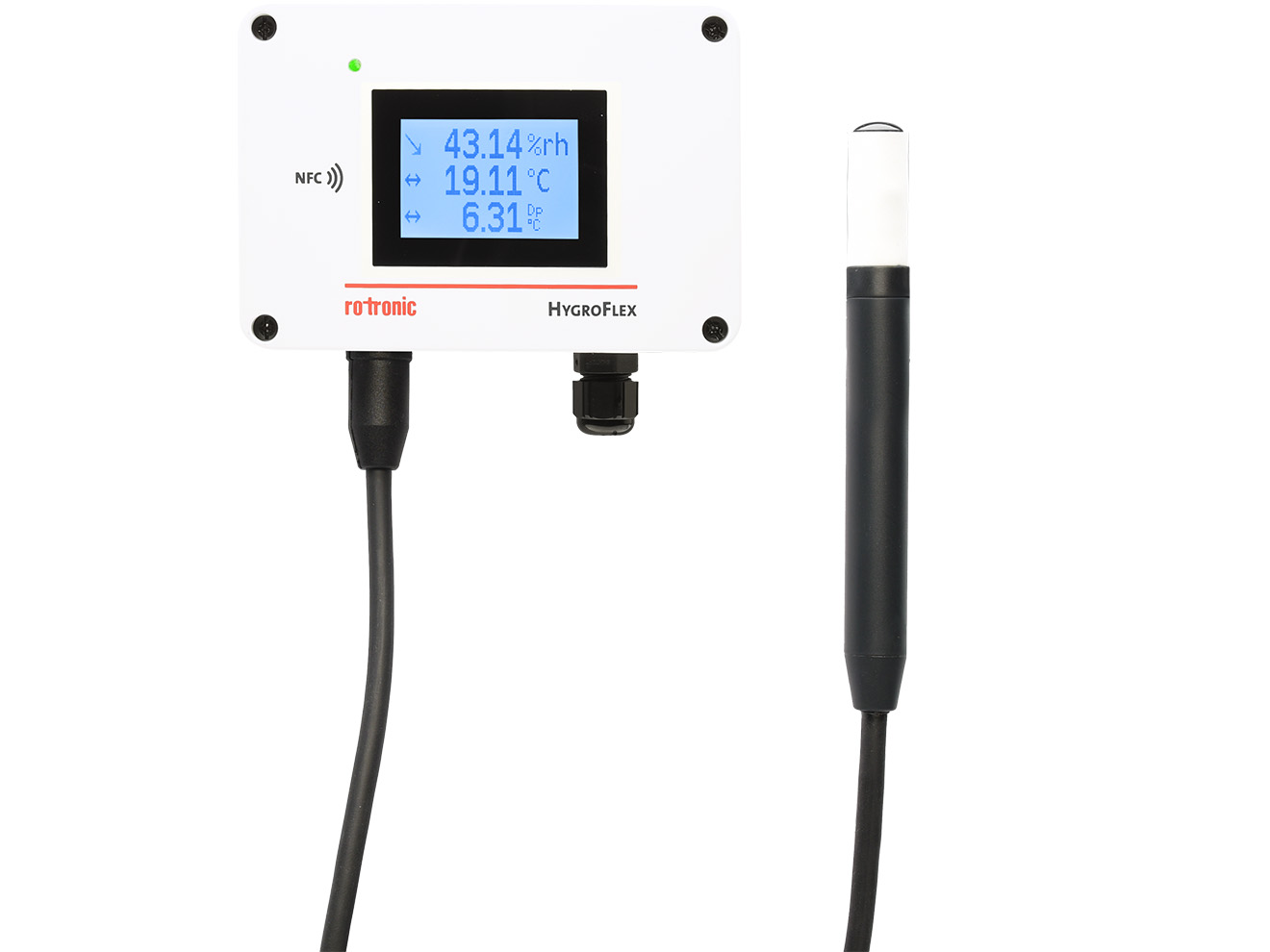

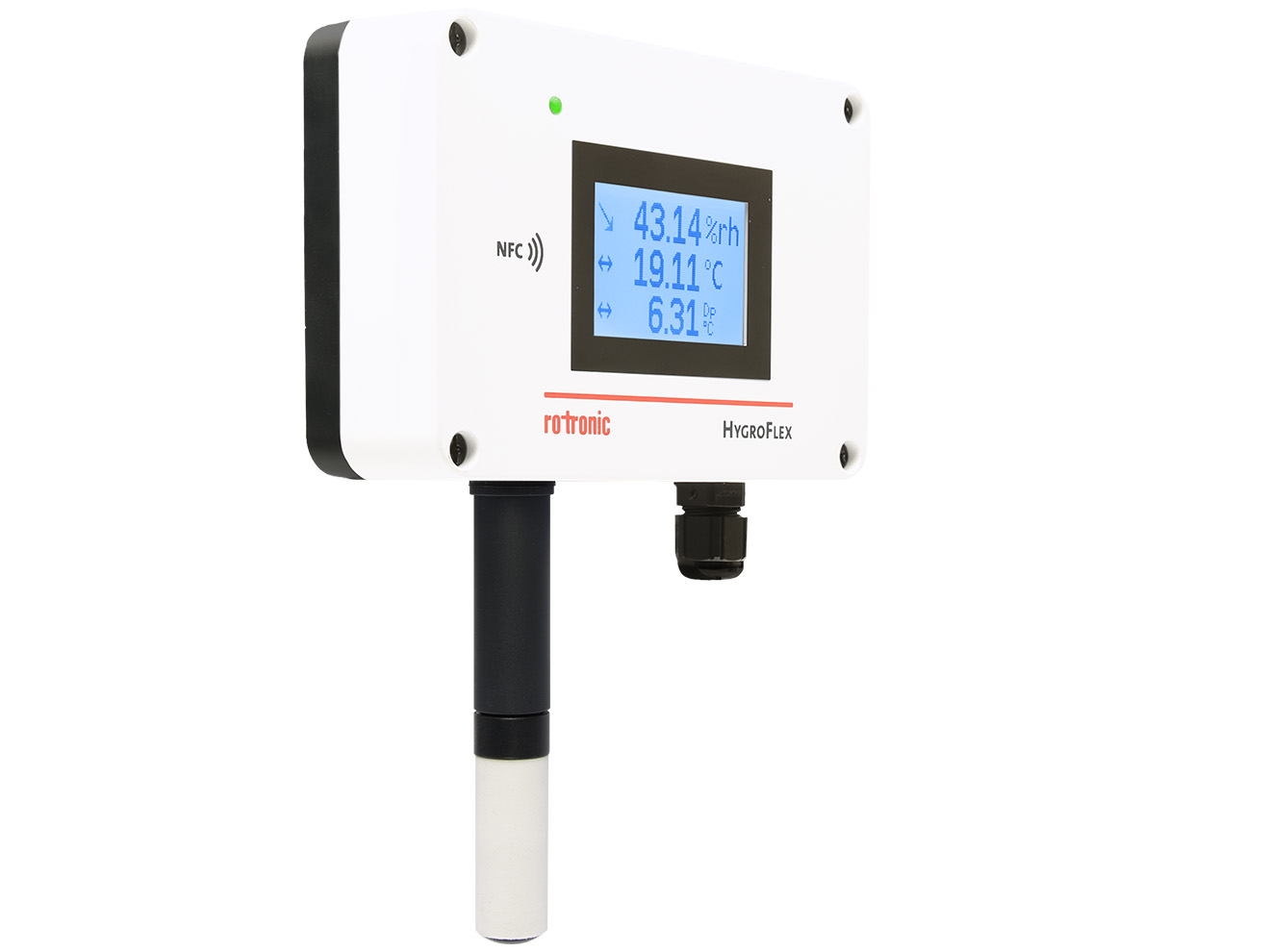

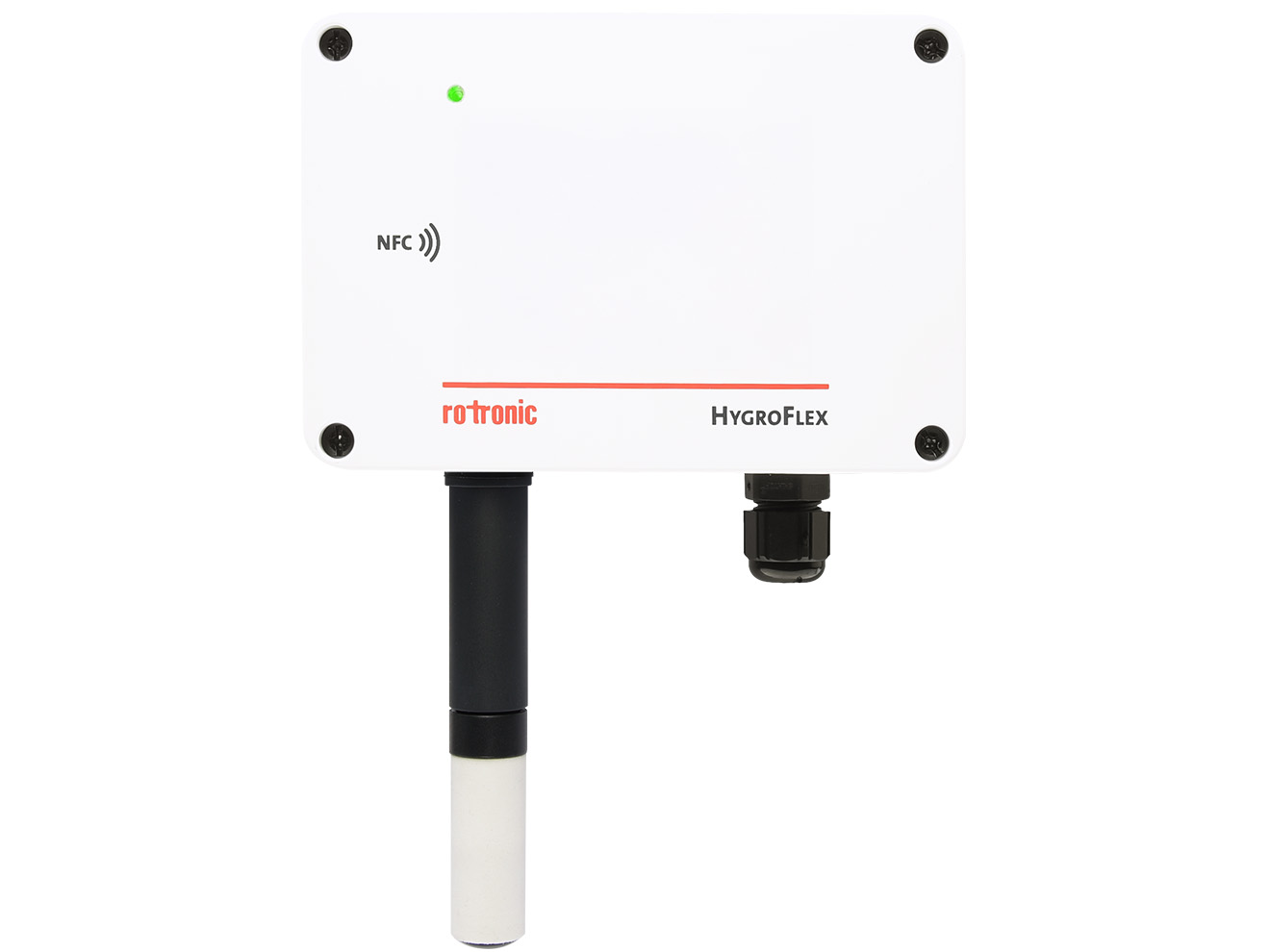

Rotronic HygroFlex3A series advanced humidity transmitters is a fixed probe instrument designed for continuous measurement in environmental monitoring applications. It measures 0 to 100 %RH with an accuracy of ±1.2 %RH at 73°F. Temperature measurement ranges depend on the mounting version: duct and cable models operate from -58 to 212°F, while wall mounted versions operate from -40 to 185°F, or -14 to 140°F when equipped with a display.

The HygroFlex3A operates with a 1 second measurement interval and a 5 second initialization time. It is available in 2-wire (HF3A-2), 3/4-wire analog (HF3A-3), and RS485 (HF3A-D) versions. Outputs include 4 to 20mA and freely scalable analog signals (0 to 1V, 0 to 5V, 0 to 10V, 0 to 20mA, 4 to 20mA), with greater than 15 bit resolution.

The device uses a PC-ABS IP65 housing and a ROTRONIC Hygromer HT 1 humidity sensor with a Pt100 temperature sensor (1/3 Class B). Power supply is 10 to 28 VDC for 2-wire and 18 to 36 VDC for 3/4-wire versions.

Rotronic HygroFlex3A Humidity and Temperature Transmitter Applications:

  • HVAC systems for office buildings and storage areas
  • Climate monitoring in greenhouses and swimming pools
  • Light industrial manufacturing including electronics production, packaging, and small assembly operations
