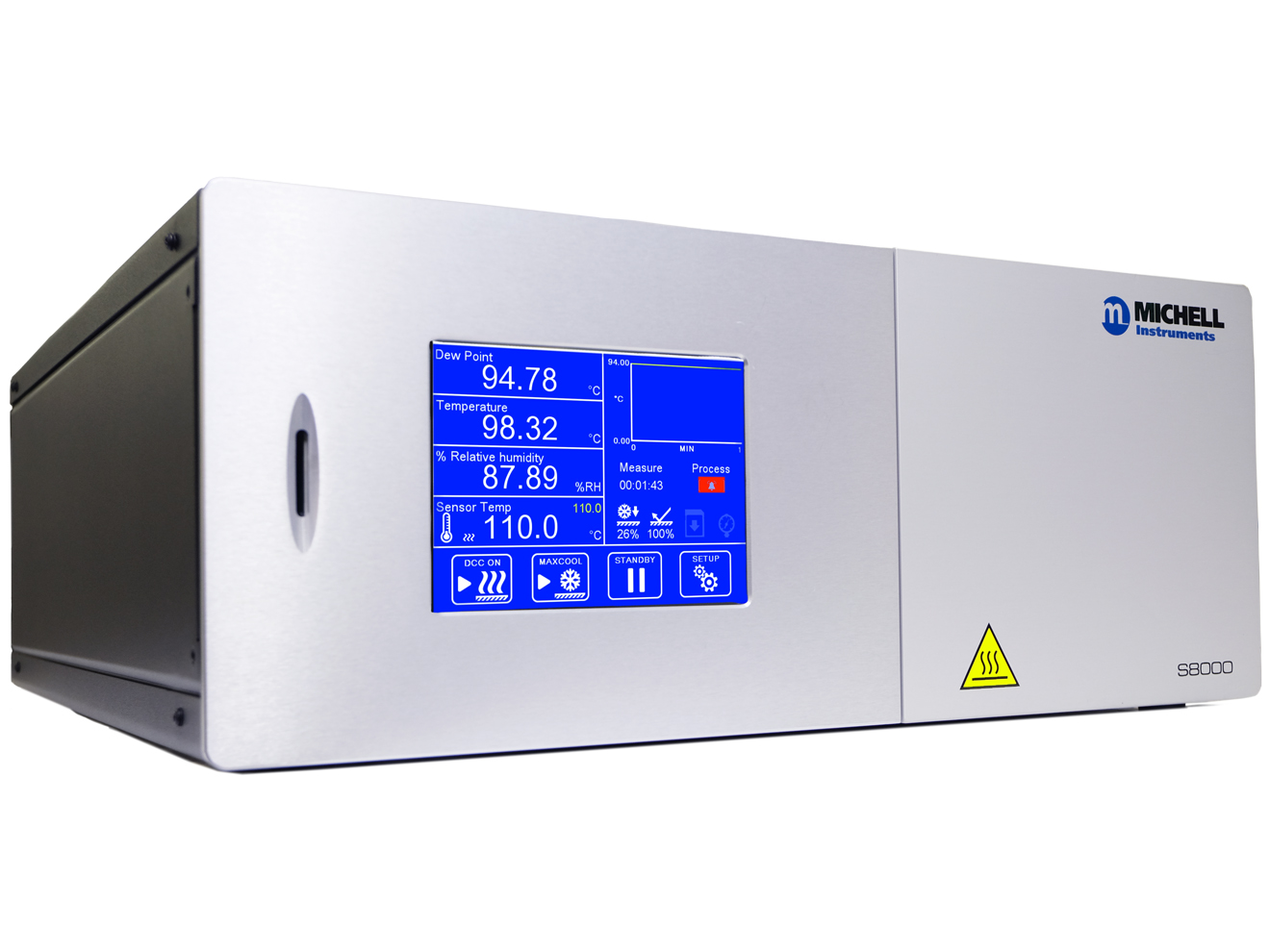

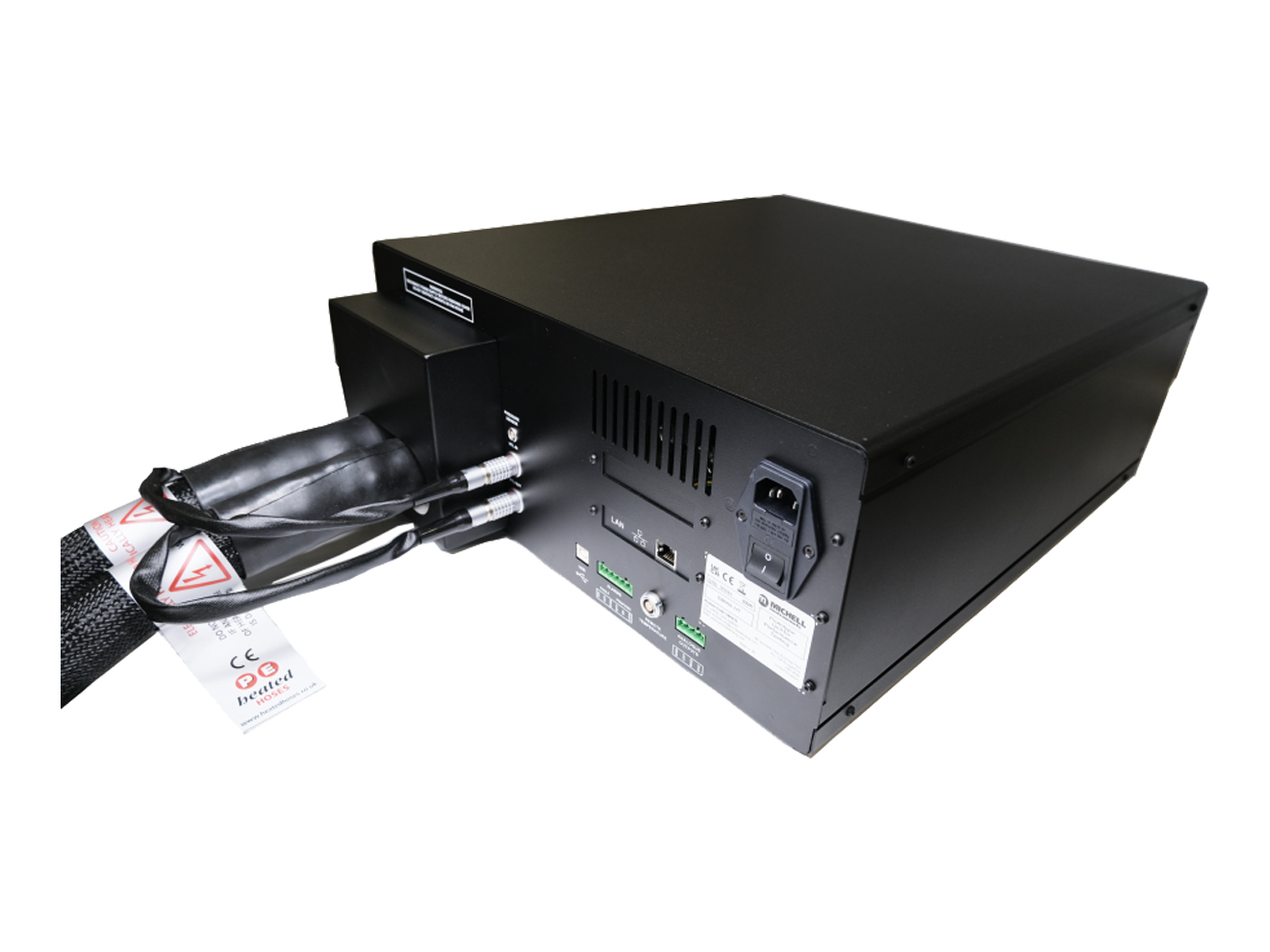

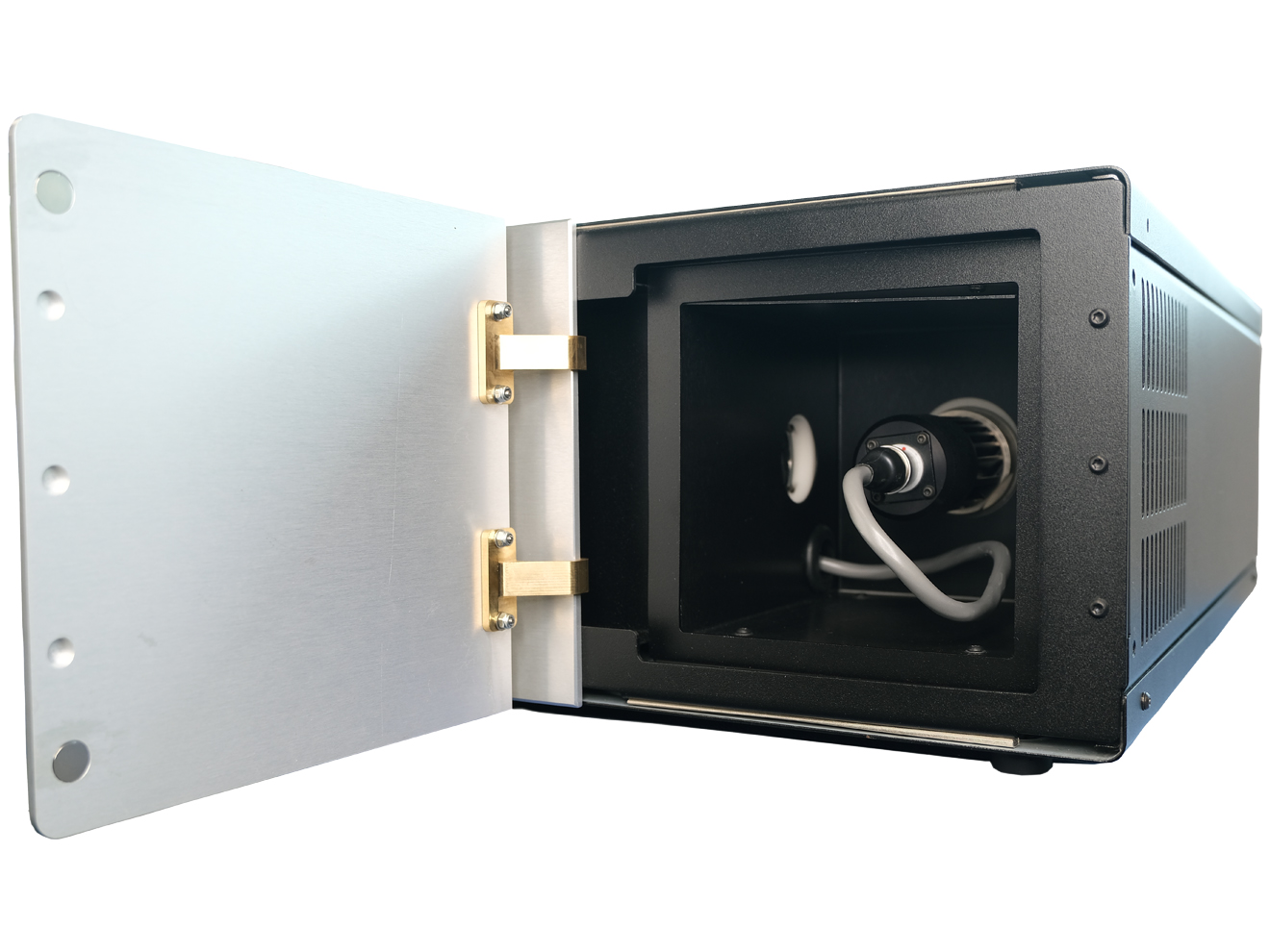

Michell Instruments S8000 HT High Temperature Dew Point Chilled Mirror Hygrometer
±0.18°F (±0.1°C) accuracy; precision measurements to -22 to 203°F (30 to 95°C) dew point.
Starting at
$52,738.00
Manufactured
Includes
Availability
Overview
Features
- ±0.05 °Cdp (±0.09 °Fdp) stability
- ±0.05 °Cdp (±0.09 °Fdp) reproducibility
- External PRT for RH measurements
- Simple configuration and operation via touchscreen interface
- 19in x 4U package
- USB + Ethernet or RS485 connections
- SD card datalogging
- Supplied with 2m heat trace lines
Description
The Michell Instruments S8000 HT High Temperature Dew Point Chilled Mirror Hygrometer directly measures the formation of condensation on a mirrored surface, offering a wide measurement range with minimal operator intervention. The instrument provides a range of digital and analog communications, allowing it to be monitored remotely or via specific S8000 logging software.
A high-contrast touch-screen LCD display gives or presents entirely customizable local indication of the measured values, along with a trend graph and fault warnings.
Applications
- Reference humidity measurements in standards laboratories
- Reference instrument in humidity calibration facilities
- Reference instrument for RH sensor manufacturing
- Precision moisture measurements in research and development
