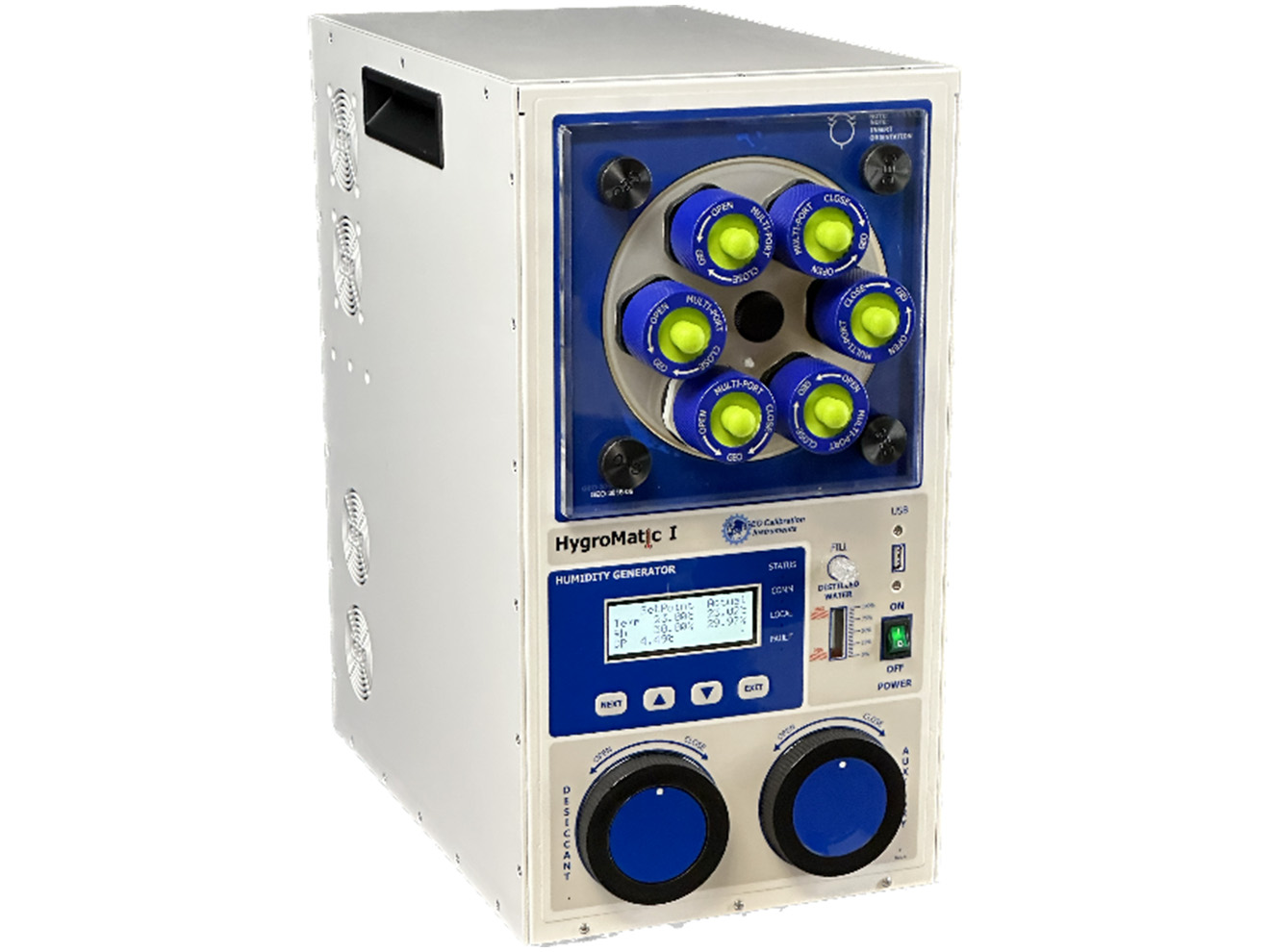

GEO Calibration Hygromatic I Humidity and Temperature Controlled Chamber
Chamber designed to provide stable, controlled environmental conditions from 35.6 to 136.4°F and 2% to 98%RH for accurate calibration and testing of hygrometers.
- 01-205-00-0000
Overview
Features
- Temperature range: 35.6 to 136.4°F
- Humidity range: 2% to 98% RH
- Temperature stability: ±0.09°F
- Relative humidity accuracy: up to ±0.6% RH at 73.4°F
- Controller type: Advanced PID control system
- Chamber design: high-uniformity calibration environment
- Probe capacity: supports up to 6 probe ports
- Working volume: 1.5 L effective chamber volume
Description
The GEO calibration hygromatic I humidity and temperature controlled chamber is used for calibration and testing of hygrometers, probes, sensors, and data loggers. It uses a PID controller to regulate temperature and humidity within set ranges. The control range is 35.6° to 136.4°F with humidity from 2% to 98% RH depending on temperature. Temperature accuracy is ±0.09°F typical and humidity accuracy is up to ±0.60% RH based on probe accuracy.
The chamber has a 1.5 L working volume and supports multiple port configurations. It includes USB output, chilled mirror ports, and 0 to 1 V analog outputs. It uses a distilled water reservoir and a replaceable molecular sieve desiccant system. Recalibration is recommended once per year depending on usage.
