Optris CTi P7 Infrared Pyrometer
Non-contact infrared pyrometer optimized for thin-film plastics (PET, PU, PTFE, PA), measuring 32 to 1310°F with 7.9µm spectral range and a fast 150ms response time.
Overview
Features
- Temperature range: 32 to 1310°F
- Operating temperature: -4 to 185°F
- Spectral range: 7.9μm
- Optical resolution: 10:1
- Response time: 15ms
- Measurement uncertainty: ±4.5°F or ±1%
- Outputs: 0/4 to 20mA, 0 to 5/10V, thermocouple K, alarm
- Digital interfaces:
- USB, EtherNet/IP, Profinet, Modbus TCP/RTU, RS485, RS232
- Power supply: 8 to 30 V DC / 1.2W
- Protection rating: IP65 (NEMA 4)
Description
The Optris CTi P7 infrared pyrometer uses a 7.9 µm spectral range to measure thin-film plastics such as PET, PU, PTFE, and PA. It measures temperatures from 32 to 1310°F with a 150ms response time, making it suitable for fast industrial processes. It provides a 10:1 optical resolution and an accuracy of ±4.5°F or ±1%, whichever is greater. Emissivity can be adjusted, and built-in signal processing functions such as peak hold, valley hold, and averaging help adapt the measurement to changing process conditions.

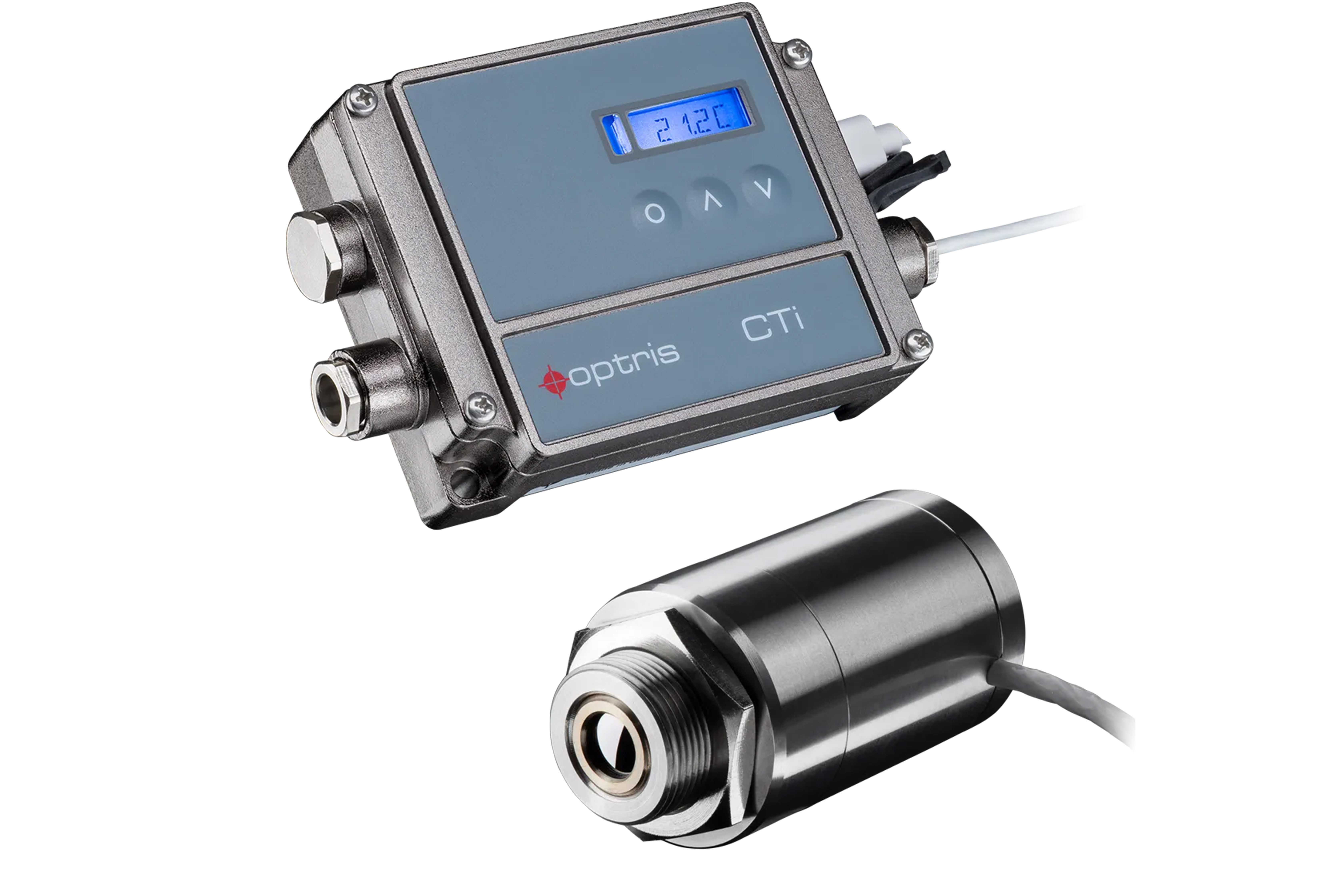

The sensor is split into a sensing head and separate electronics for flexible installation. The device supports analog outputs 0/4 to 20mA, 0 to 5/10V, thermocouple K, alarm and optional industrial communication interfaces including Modbus, PROFINET, and EtherNet/IP. It is IP65-rated and operates in ambient temperatures from -4 to 185°F.
